Exploded View iMac 21.5-inch Mid 2014

iMac 21.5-inch Mid 2014 - Exploded View

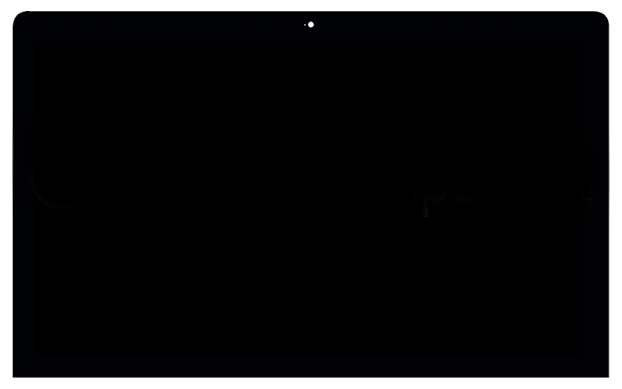

LCD Display Panel Assembly 2k w/ Glass
661-00156

LCD Display Panel Assembly 2k w/ Glass 661-00156 for iMac 21.5-inch Mid 2014

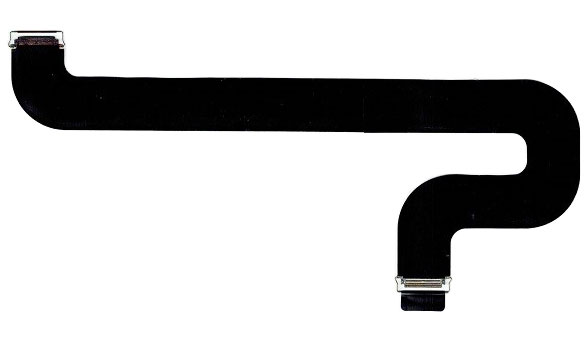

Display / LVDS / eDP Cable
923-00047

Display / LVDS / eDP Cable 923-00047 for iMac 21.5-inch Mid 2014

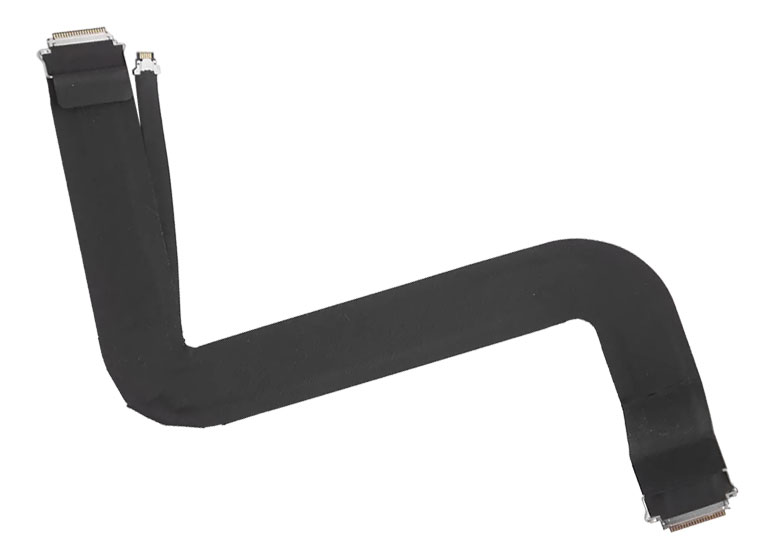

Camera / Microphone Cable
923-00036

Camera / Microphone Cable 923-00036 for iMac 21.5-inch Mid 2014

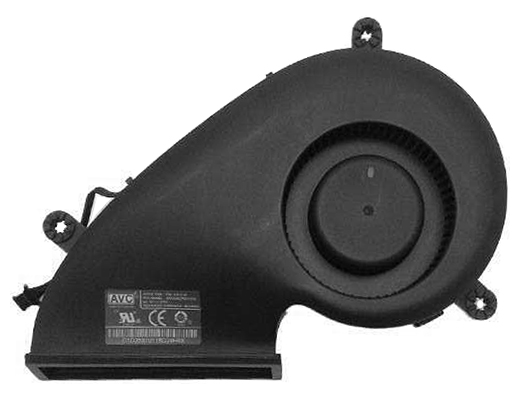

Fan
923-0270

Fan 923-0270 for iMac 21.5-inch Mid 2014
Hard Drive / Solid State SATA
661-01029, 661-6041, 661-6042, 661-6044, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-6041, 661-6042, 661-6044, 661-6591, 661-7024, 661-7026 for iMac 21.5-inch Mid 2014

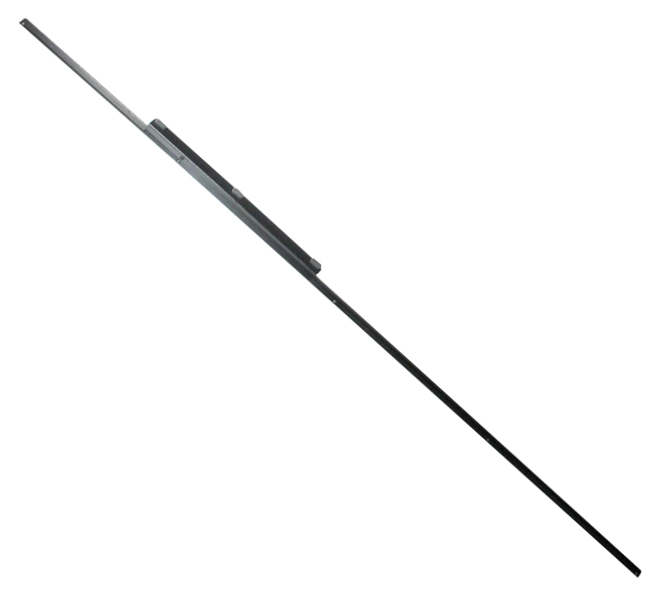

Chin Strap
923-0453

Chin Strap 923-0453 for iMac 21.5-inch Mid 2014

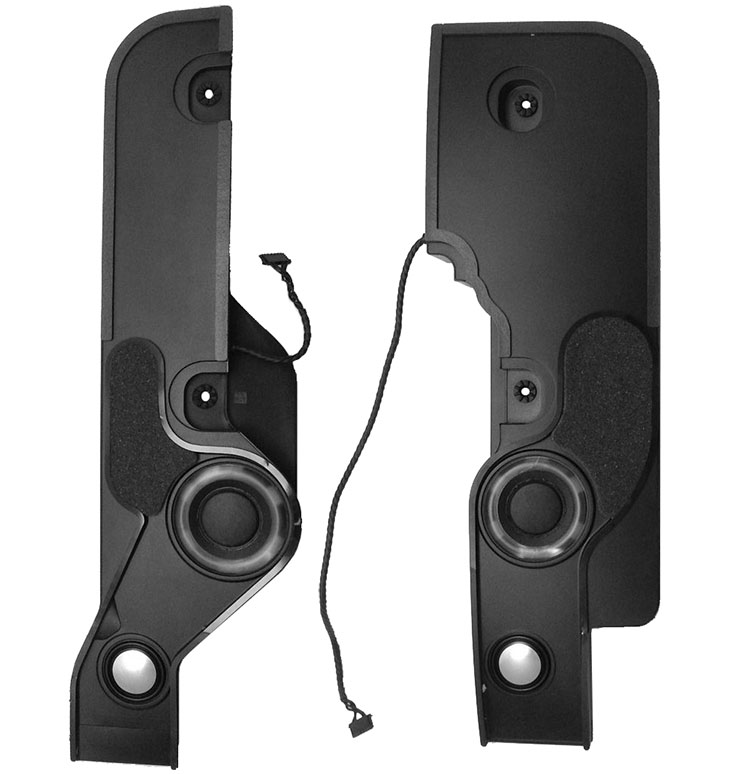

Speaker Set (Left and Right)
923-0267

Speaker Set (Left and Right) 923-0267 for iMac 21.5-inch Mid 2014
Power Supply Unit (PSU) 185W
661-7111

Power Supply Unit (PSU) 185W 661-7111 for iMac 21.5-inch Mid 2014

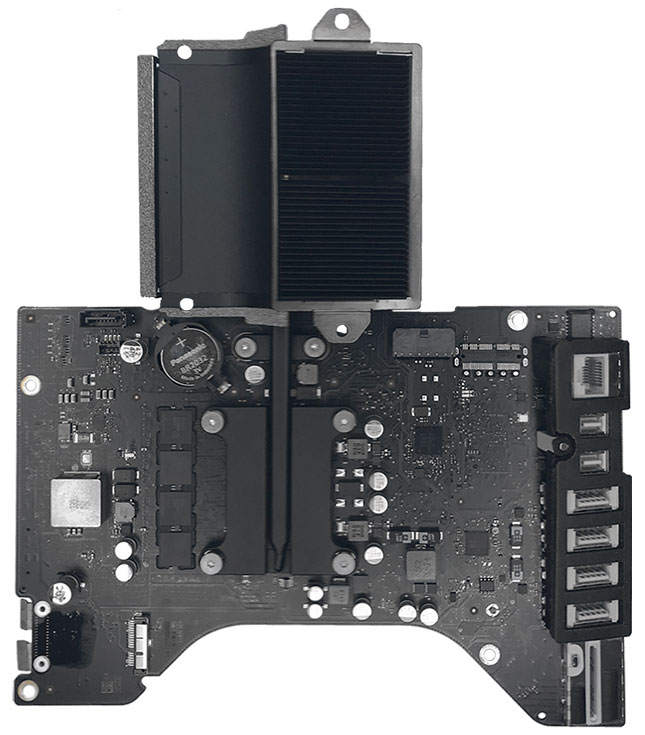

Logic Board
661-00147, 661-00148

Logic Board 661-00147, 661-00148 for iMac 21.5-inch Mid 2014

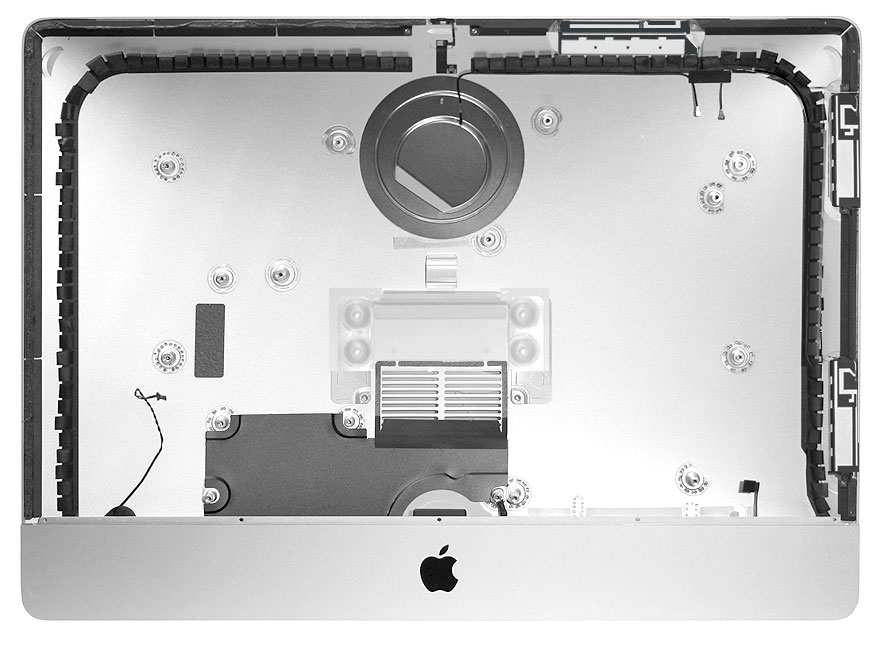

Rear Housing
923-00028

Rear Housing 923-00028 for iMac 21.5-inch Mid 2014

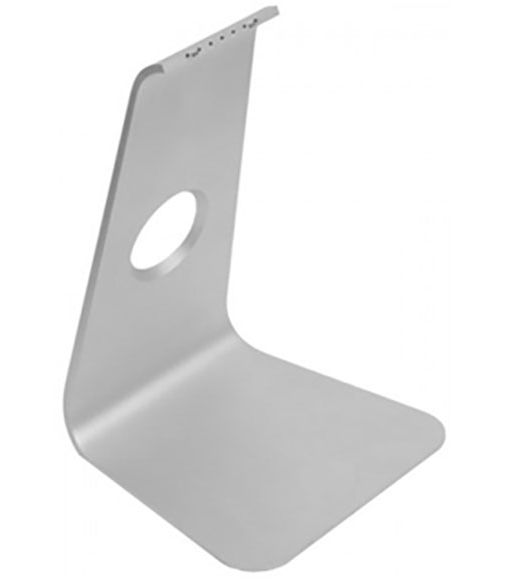

Stand / Leg
923-0266

Stand / Leg 923-0266 for iMac 21.5-inch Mid 2014

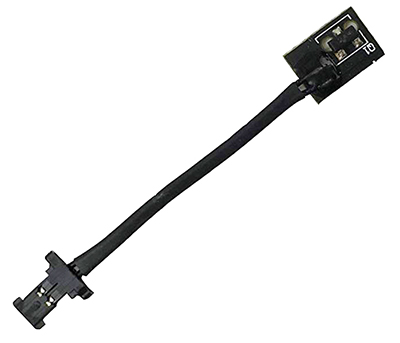

Display / LCD Temperature Sensor Cable 923-0280 for iMac 21.5-inch Mid 2014
Display / LCD Temperature Sensor Cable
923-0280

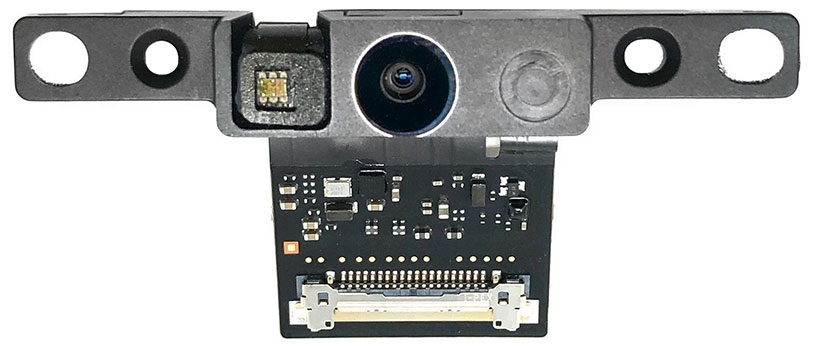

Camera iSight 923-0451 for iMac 21.5-inch Mid 2014
Camera iSight
923-0451

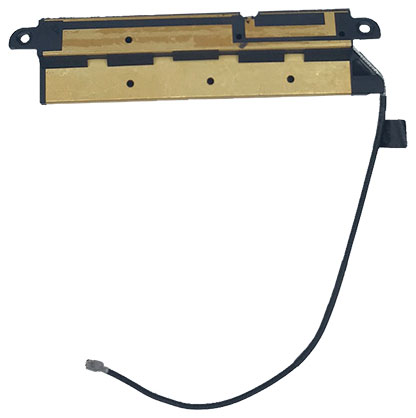

Bluetooth / Wireless Antenna, Upper 923-00032 for iMac 21.5-inch Mid 2014
Bluetooth / Wireless Antenna, Upper
923-00032

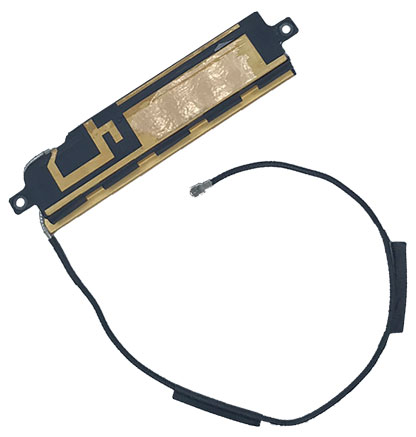

WiFi / Wireless Antenna Middle 923-00033 for iMac 21.5-inch Mid 2014
WiFi / Wireless Antenna Middle
923-00033

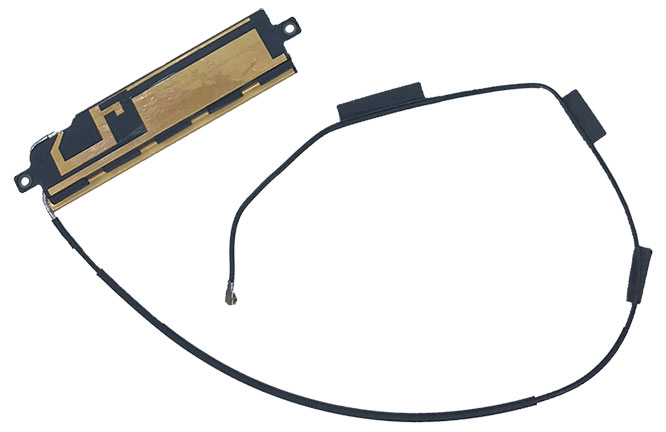

WiFi / Wireless Antenna Lower 923-00034 for iMac 21.5-inch Mid 2014
WiFi / Wireless Antenna Lower
923-00034

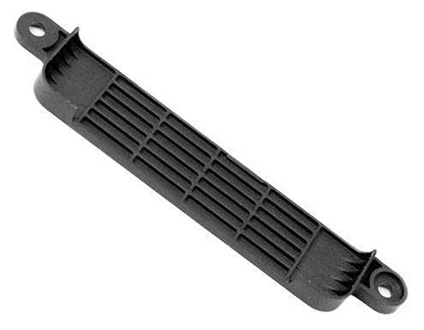

Hard Drive Lid / Bracket, Left 923-0365 for iMac 21.5-inch Mid 2014
Hard Drive Lid / Bracket, Left
923-0365

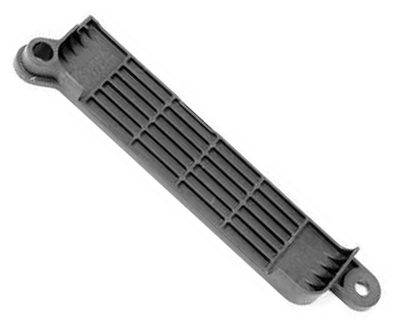

Hard Drive Lid / Bracket, Right 923-0364 for iMac 21.5-inch Mid 2014
Hard Drive Lid / Bracket, Right
923-0364

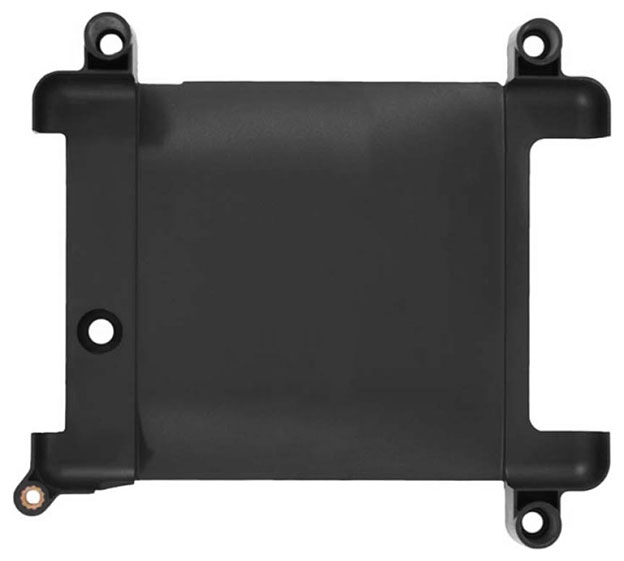

Hard Drive Cradle 923-0326 for iMac 21.5-inch Mid 2014
Hard Drive Cradle
923-0326

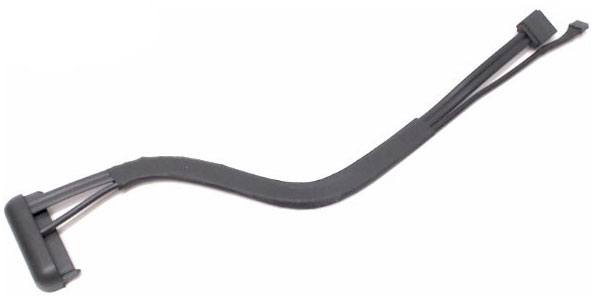

Hard Drive Data / Power Cable 923-0461 for iMac 21.5-inch Mid 2014
Hard Drive Data / Power Cable
923-0461

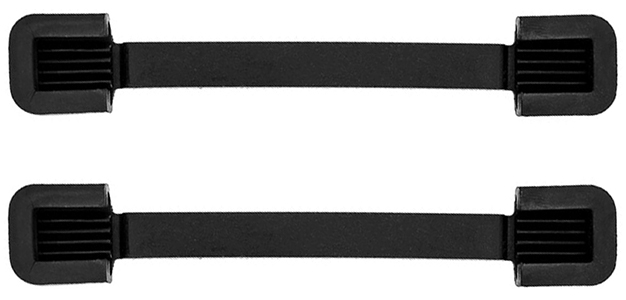

Hard Drive Rubber Bumpers 076-1448 for iMac 21.5-inch Mid 2014
Hard Drive Rubber Bumpers
076-1448

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462 for iMac 21.5-inch Mid 2014
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462

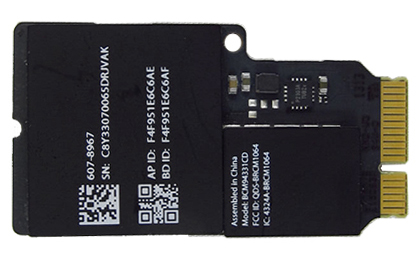

Wireless (Airport/Bluetooth) Card 661-7514 for iMac 21.5-inch Mid 2014
Wireless (Airport/Bluetooth) Card
661-7514

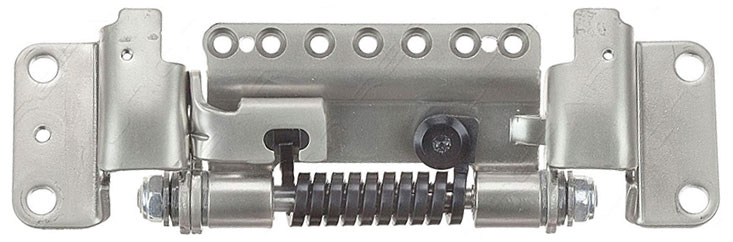

Clutch Hinge Mechanism 923-00046 for iMac 21.5-inch Mid 2014
Clutch Hinge Mechanism
923-00046
