Exploded View iMac Retina 5K 27-inch Mid 2015

iMac Retina 5K 27-inch Mid 2015 - Exploded View



LCD Display Panel Assembly w/ Glass 5K
661-00200

LCD Display Panel Assembly w/ Glass 5K 661-00200 for iMac Retina 5K 27-inch Mid 2015
LCD Display / DisplayPort LVDS Cable
923-00093

LCD Display / DisplayPort LVDS Cable 923-00093 for iMac Retina 5K 27-inch Mid 2015
Camera / Microphone Cable
923-0307

Camera / Microphone Cable 923-0307 for iMac Retina 5K 27-inch Mid 2015
CPU Cooling Fan
923-0302

CPU Cooling Fan 923-0302 for iMac Retina 5K 27-inch Mid 2015
Chin Strap
923-0528

Chin Strap 923-0528 for iMac Retina 5K 27-inch Mid 2015
Speaker Set (Left and Right)
923-00090

Speaker Set (Left and Right) 923-00090 for iMac Retina 5K 27-inch Mid 2015
Power Supply 300W
661-7170

Power Supply 300W 661-7170 for iMac Retina 5K 27-inch Mid 2015

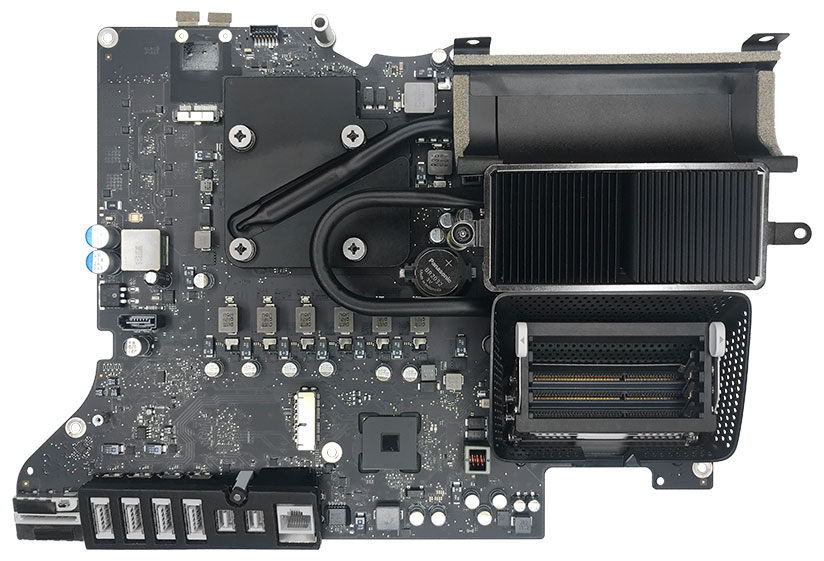

Logic Board 3.3GHz Quad Core i5 2GB
661-00190

Logic Board 3.3GHz Quad Core i5 2GB 661-00190 for iMac Retina 5K 27-inch Mid 2015
Rear Housing
923-00081

Rear Housing 923-00081 for iMac Retina 5K 27-inch Mid 2015
Clutch/Hinge Mechanism
923-0313

Clutch/Hinge Mechanism 923-0313 for iMac Retina 5K 27-inch Mid 2015
Stand
923-0299

Stand 923-0299 for iMac Retina 5K 27-inch Mid 2015
Memory RAM Door/Cover 923-0403 for iMac Retina 5K 27-inch Mid 2015
Memory RAM Door/Cover
923-0403

Display LCD Temperature Sensor Cable 923-0310 for iMac Retina 5K 27-inch Mid 2015
Display LCD Temperature Sensor Cable
923-0310

Camera 923-0301 for iMac Retina 5K 27-inch Mid 2015
Camera
923-0301

Bluetooth Antenna, Upper 923-00094 for iMac Retina 5K 27-inch Mid 2015
Bluetooth Antenna, Upper
923-00094

WiFi Antenna Middle 923-00095 for iMac Retina 5K 27-inch Mid 2015
WiFi Antenna Middle
923-00095

WiFi Antenna Lower 923-00096 for iMac Retina 5K 27-inch Mid 2015
WiFi Antenna Lower
923-00096

Hard Drive Bracket/Carrier/Mount, Left 923-00086 for iMac Retina 5K 27-inch Mid 2015
Hard Drive Bracket/Carrier/Mount, Left
923-00086

Hard Drive Bracket/Carrier/Mount, Right 923-00087 for iMac Retina 5K 27-inch Mid 2015
Hard Drive Bracket/Carrier/Mount, Right
923-00087

Hard Drive SATA 661-7164, 661-7165 for iMac Retina 5K 27-inch Mid 2015
Hard Drive SATA
661-7164, 661-7165

Hard Drive Data Power Cable, SATA 923-00092 for iMac Retina 5K 27-inch Mid 2015
Hard Drive Data Power Cable, SATA
923-00092

Power Supply Signal Cable 923-0311 for iMac Retina 5K 27-inch Mid 2015
Power Supply Signal Cable
923-0311

Memory RAM DDR3L 1600MHz / PC3L-12800 661-7884 for iMac Retina 5K 27-inch Mid 2015
Memory RAM DDR3L 1600MHz / PC3L-12800
661-7884

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for iMac Retina 5K 27-inch Mid 2015
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

Wireless (Airport/Bluetooth) Card 661-7514 for iMac Retina 5K 27-inch Mid 2015
Wireless (Airport/Bluetooth) Card
661-7514

Memory/RAM Door Latch w/ Button 923-0402 for iMac Retina 5K 27-inch Mid 2015
Memory/RAM Door Latch w/ Button
923-0402
