Exploded View iMac Retina 4K 21.5-inch Late 2015

iMac Retina 4K 21.5-inch Late 2015 - Exploded View

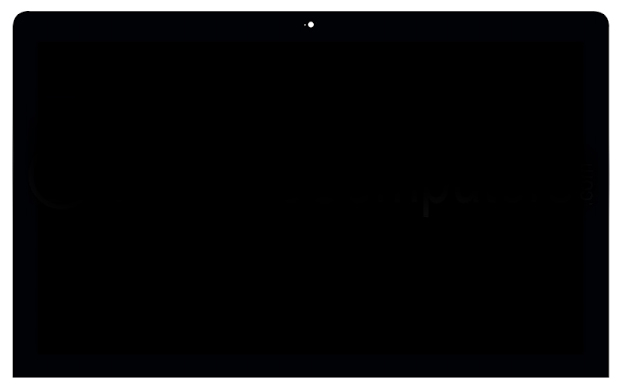

LCD Display Panel Assembly 4k Retina w/ Glass
661-02990

LCD Display Panel Assembly 4k Retina w/ Glass 661-02990 for iMac Retina 4K 21.5-inch Late 2015

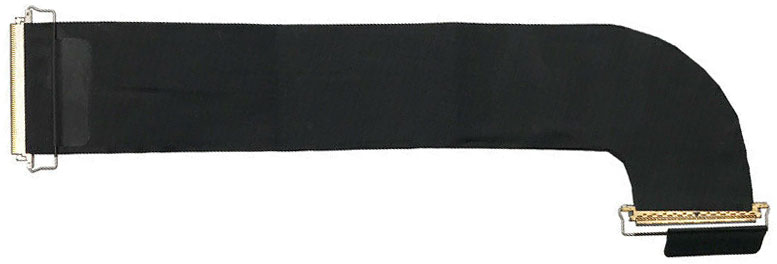

Display / LVDS / eDP Cable 4k Retina
923-00608

Display / LVDS / eDP Cable 4k Retina 923-00608 for iMac Retina 4K 21.5-inch Late 2015

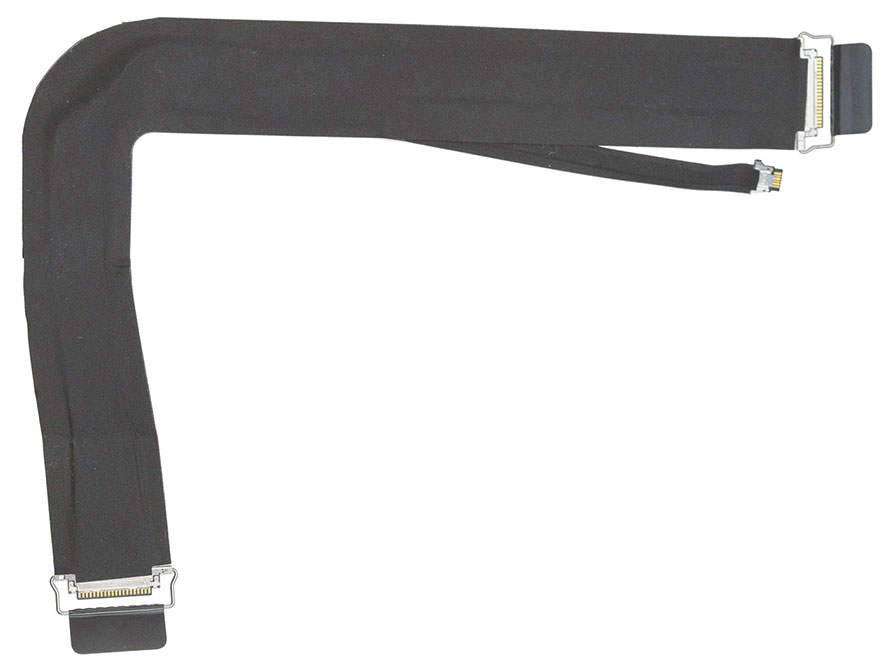

Camera (iSight) / Microphone Cable
923-00564

Camera (iSight) / Microphone Cable 923-00564 for iMac Retina 4K 21.5-inch Late 2015
CPU Cooling Fan
923-00563

CPU Cooling Fan 923-00563 for iMac Retina 4K 21.5-inch Late 2015
Hard Drive / Solid State SATA
661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026 for iMac Retina 4K 21.5-inch Late 2015
Chin Strap
923-0453

Chin Strap 923-0453 for iMac Retina 4K 21.5-inch Late 2015
Speaker Set (Left and Right)
923-0267

Speaker Set (Left and Right) 923-0267 for iMac Retina 4K 21.5-inch Late 2015
Power Supply Unit (PSU) 185W
661-7111

Power Supply Unit (PSU) 185W 661-7111 for iMac Retina 4K 21.5-inch Late 2015

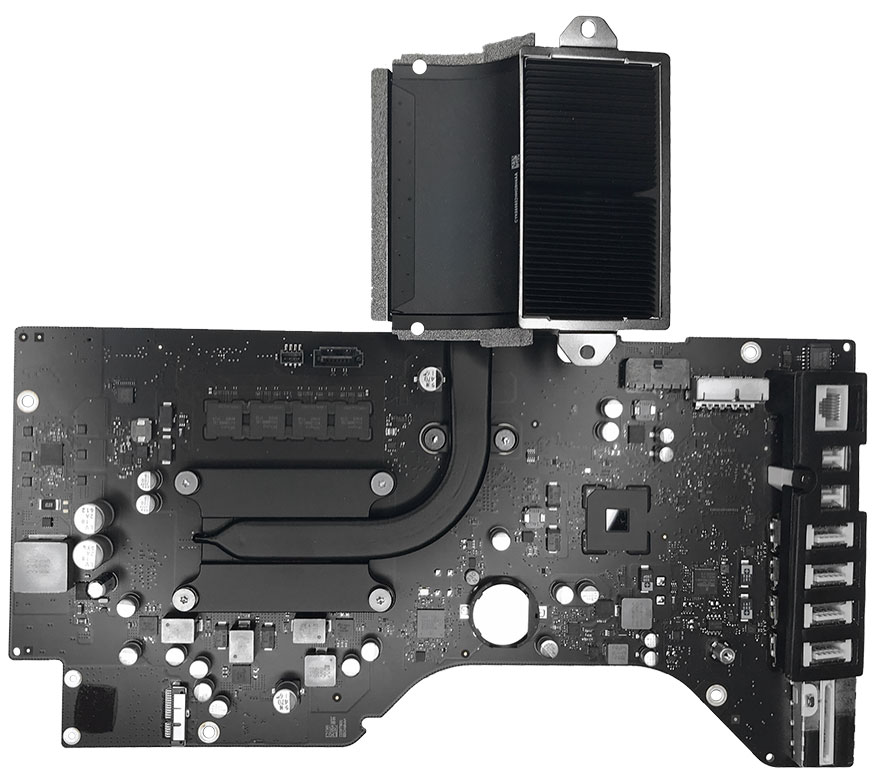

Logic Board
661-02985, 661-02986, 661-02987, 661-02988, 661-03279, 661-03280, 661-03281, 661-03282

Logic Board 661-02985, 661-02986, 661-02987, 661-02988, 661-03279, 661-03280, 661-03281, 661-03282 for iMac Retina 4K 21.5-inch Late 2015

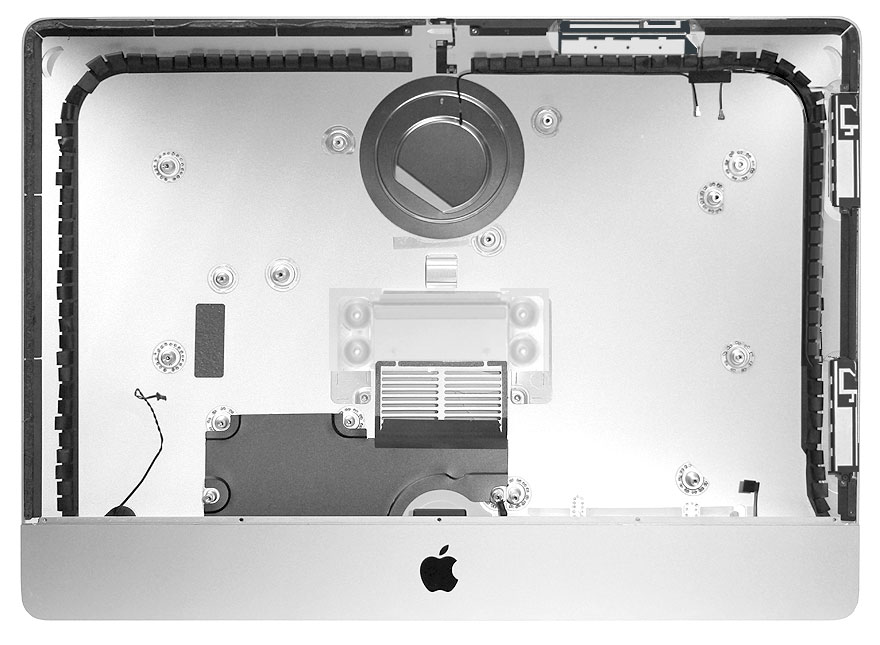

Rear Housing
923-00556

Rear Housing 923-00556 for iMac Retina 4K 21.5-inch Late 2015
Stand / Leg
923-0266

Stand / Leg 923-0266 for iMac Retina 4K 21.5-inch Late 2015
Display / LCD Temperature Sensor Cable 923-0280 for iMac Retina 4K 21.5-inch Late 2015
Display / LCD Temperature Sensor Cable
923-0280

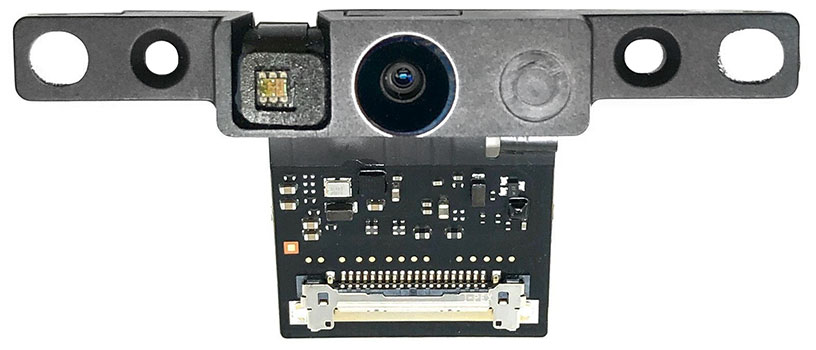

Camera iSight 923-00572 for iMac Retina 4K 21.5-inch Late 2015
Camera iSight
923-00572

Bluetooth / Wireless Antenna, Upper 923-00567 for iMac Retina 4K 21.5-inch Late 2015
Bluetooth / Wireless Antenna, Upper
923-00567

Wifi / Wireless Antenna, Middle 923-00569 for iMac Retina 4K 21.5-inch Late 2015
Wifi / Wireless Antenna, Middle
923-00569

Wifi / Wireless Antenna, Lower 923-00570 for iMac Retina 4K 21.5-inch Late 2015
Wifi / Wireless Antenna, Lower
923-00570

Hard Drive Lid / Bracket, Left 923-0365 for iMac Retina 4K 21.5-inch Late 2015
Hard Drive Lid / Bracket, Left
923-0365

Hard Drive Lid / Bracket, Right 923-0364 for iMac Retina 4K 21.5-inch Late 2015
Hard Drive Lid / Bracket, Right
923-0364

Hard Drive Cradle 923-0326 for iMac Retina 4K 21.5-inch Late 2015
Hard Drive Cradle
923-0326

Hard Drive Data / Power Cable 923-0461 for iMac Retina 4K 21.5-inch Late 2015
Hard Drive Data / Power Cable
923-0461

Hard Drive Rubber Bumpers 076-1448 for iMac Retina 4K 21.5-inch Late 2015
Hard Drive Rubber Bumpers
076-1448

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462 for iMac Retina 4K 21.5-inch Late 2015
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462

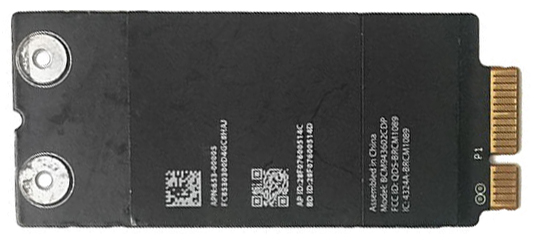

Wireless (Airport/Bluetooth) Card 661-02893 for iMac Retina 4K 21.5-inch Late 2015
Wireless (Airport/Bluetooth) Card
661-02893

Clutch Hinge Mechanism 923-00046 for iMac Retina 4K 21.5-inch Late 2015
Clutch Hinge Mechanism
923-00046
