Exploded View iMac Retina 4K 21.5-inch 2017

iMac Retina 4K 21.5-inch 2017 - Exploded View

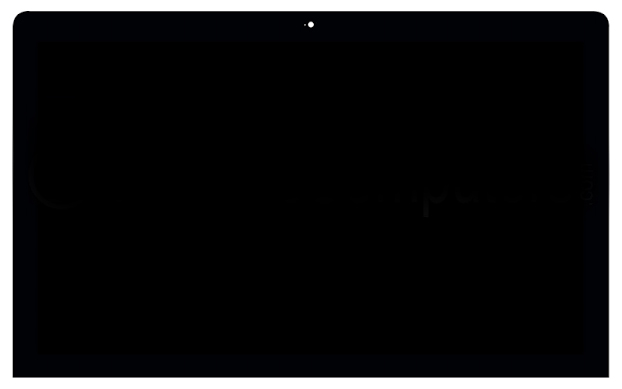

LCD Display Panel Assembly 4k Retina w/ Glass
661-07322

LCD Display Panel Assembly 4k Retina w/ Glass 661-07322 for iMac Retina 4K 21.5-inch 2017

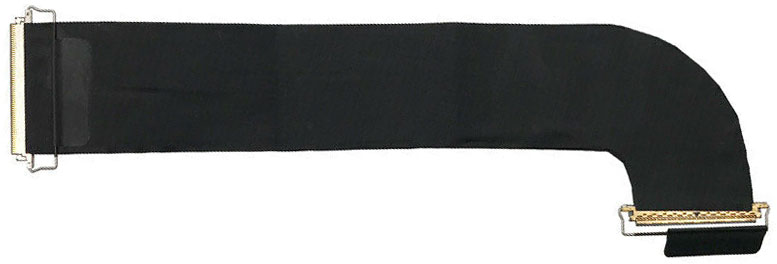

Display / LVDS / eDP Cable 4k Retina
923-01669

Display / LVDS / eDP Cable 4k Retina 923-01669 for iMac Retina 4K 21.5-inch 2017

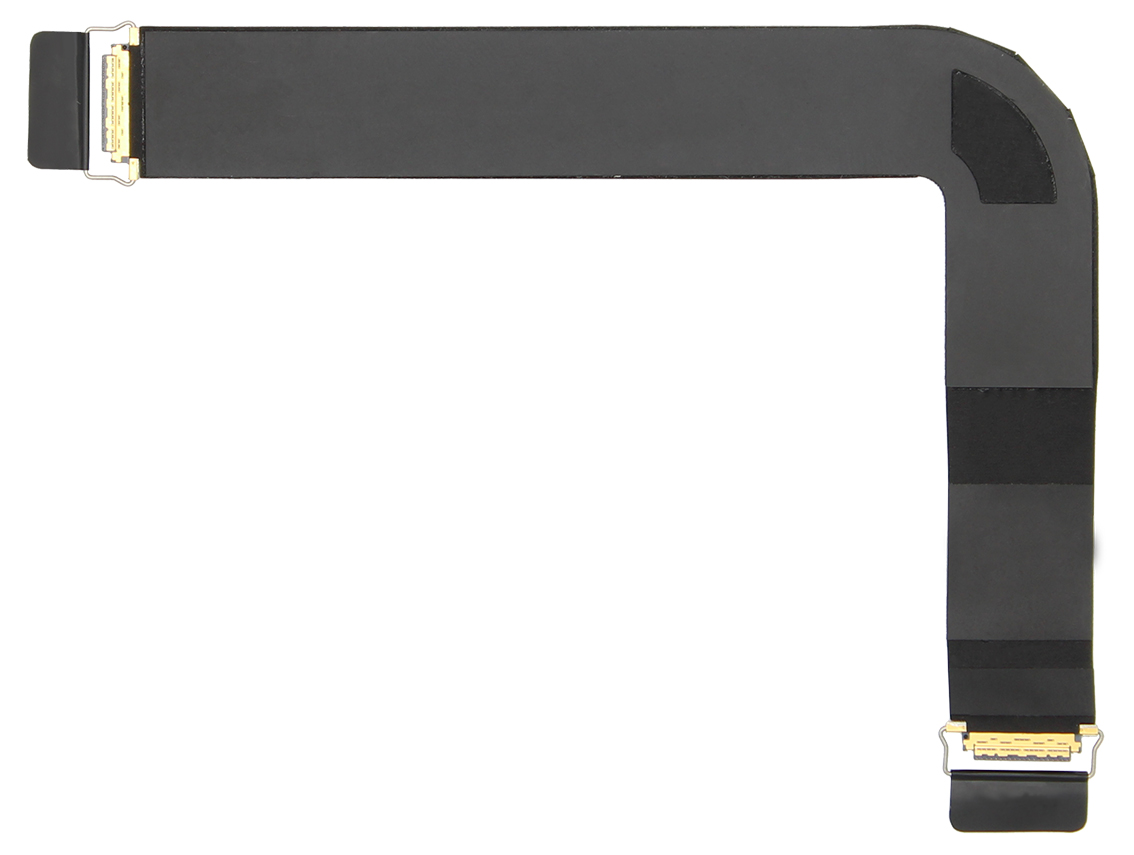

Camera / iSight Cable
923-01622

Camera / iSight Cable 923-01622 for iMac Retina 4K 21.5-inch 2017

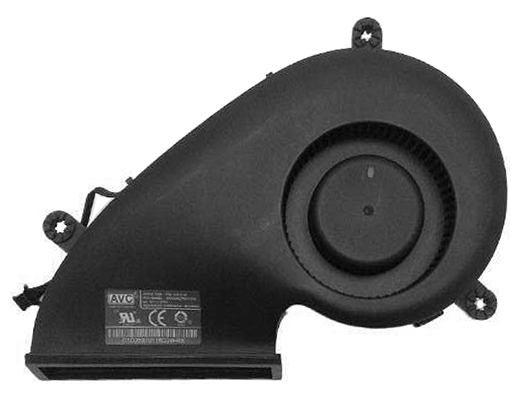

CPU Cooling Fan
923-00563

CPU Cooling Fan 923-00563 for iMac Retina 4K 21.5-inch 2017

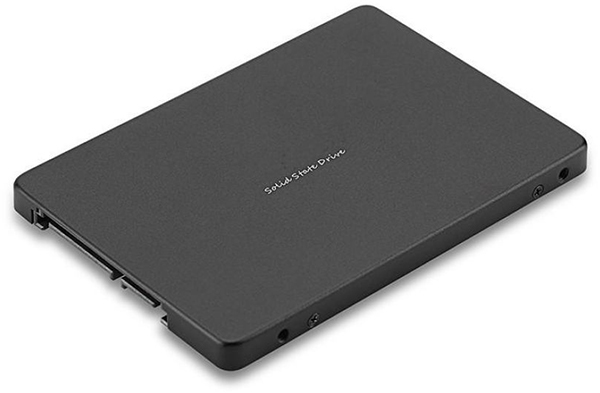

Hard Drive / Solid State SATA
661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026 for iMac Retina 4K 21.5-inch 2017

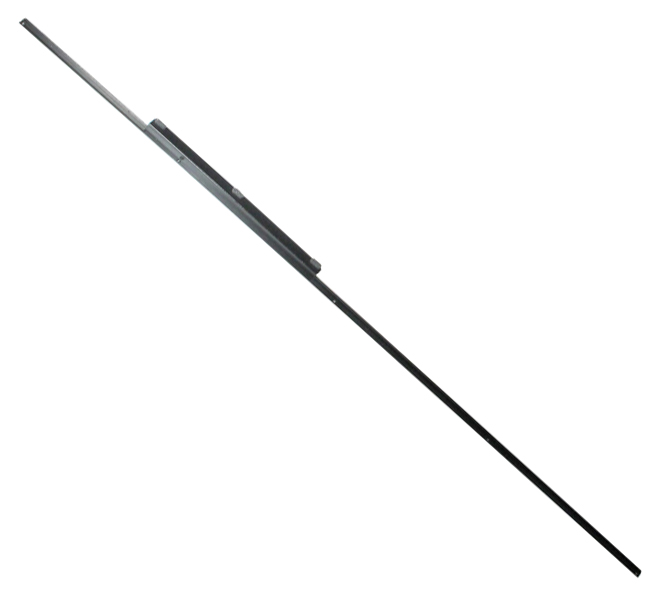

Chin Strap
923-01678

Chin Strap 923-01678 for iMac Retina 4K 21.5-inch 2017
Speaker Set (Left and Right)
923-0267

Speaker Set (Left and Right) 923-0267 for iMac Retina 4K 21.5-inch 2017
Power Supply Unit (PSU) 185W
661-7111

Power Supply Unit (PSU) 185W 661-7111 for iMac Retina 4K 21.5-inch 2017

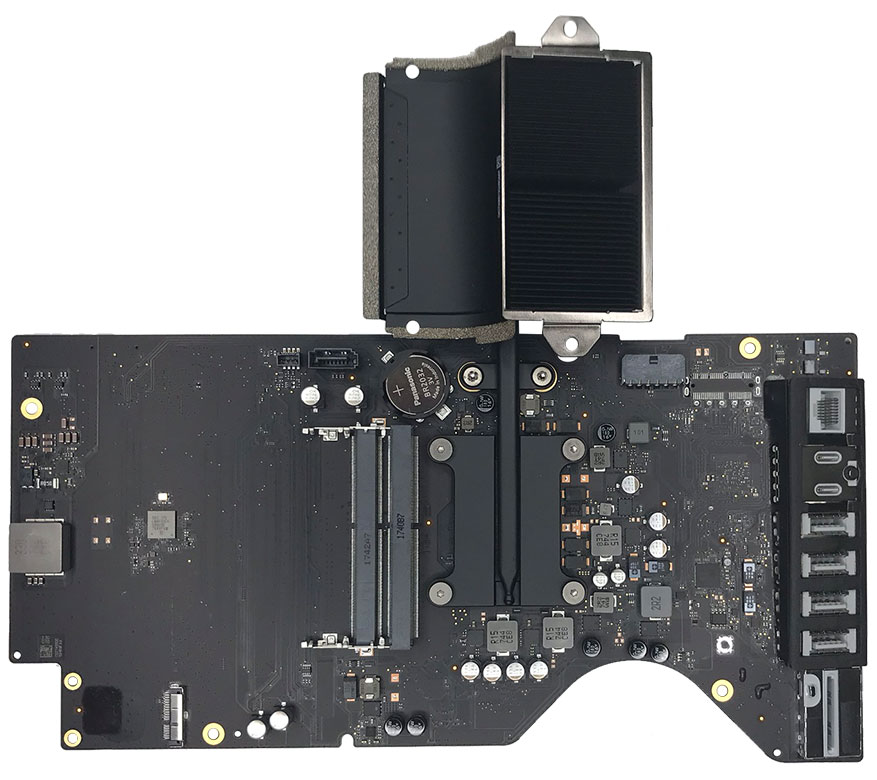

Logic Board
661-02292, 661-02294, 661-03374, 661-03375, 661-03376, 661-03377

Logic Board 661-02292, 661-02294, 661-03374, 661-03375, 661-03376, 661-03377 for iMac Retina 4K 21.5-inch 2017

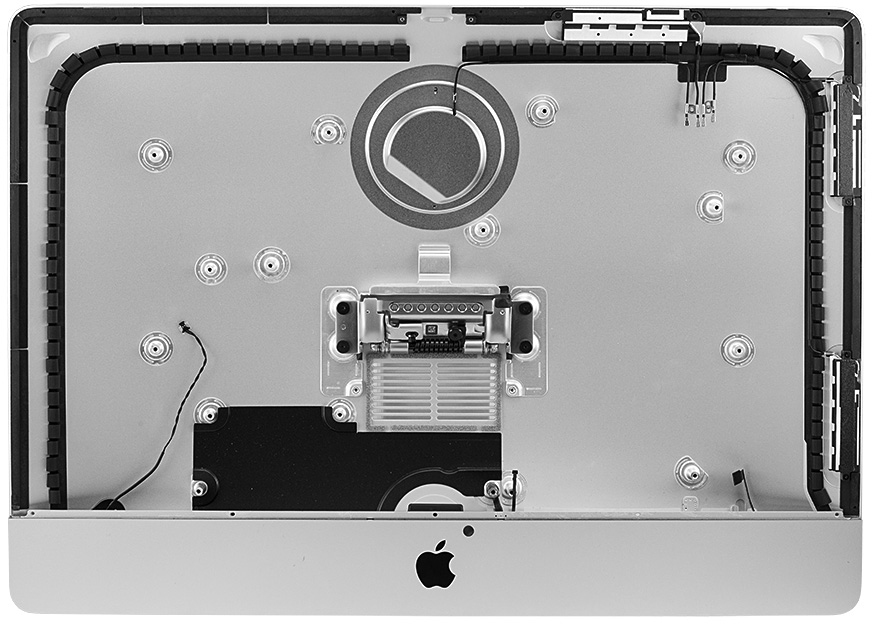

Rear Housing
923-01615

Rear Housing 923-01615 for iMac Retina 4K 21.5-inch 2017
Stand / Leg
923-0266

Stand / Leg 923-0266 for iMac Retina 4K 21.5-inch 2017
Display / LCD Temperature Sensor Cable 923-0280 for iMac Retina 4K 21.5-inch 2017
Display / LCD Temperature Sensor Cable
923-0280

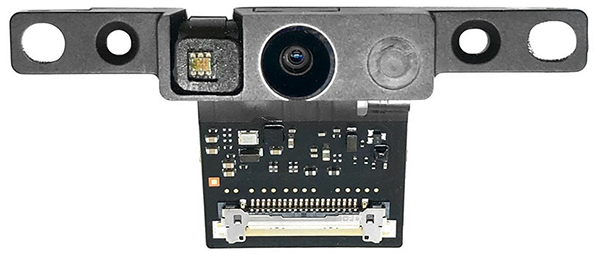

Camera 923-01618 for iMac Retina 4K 21.5-inch 2017
Camera
923-01618

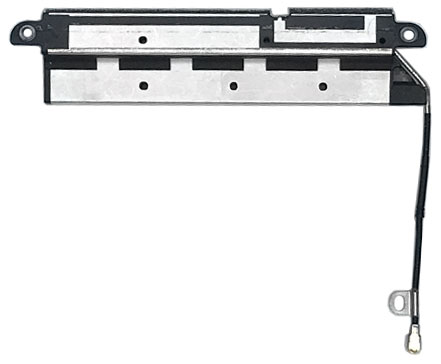

Bluetooth / Wireless Antenna, Upper 923-00567 for iMac Retina 4K 21.5-inch 2017
Bluetooth / Wireless Antenna, Upper
923-00567

Wifi / Wireless Antenna, Middle 923-00569 for iMac Retina 4K 21.5-inch 2017

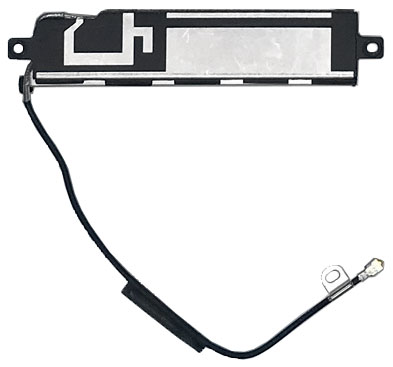

Wifi / Wireless Antenna, Middle
923-00569

Wifi / Wireless Antenna, Lower 923-00570 for iMac Retina 4K 21.5-inch 2017

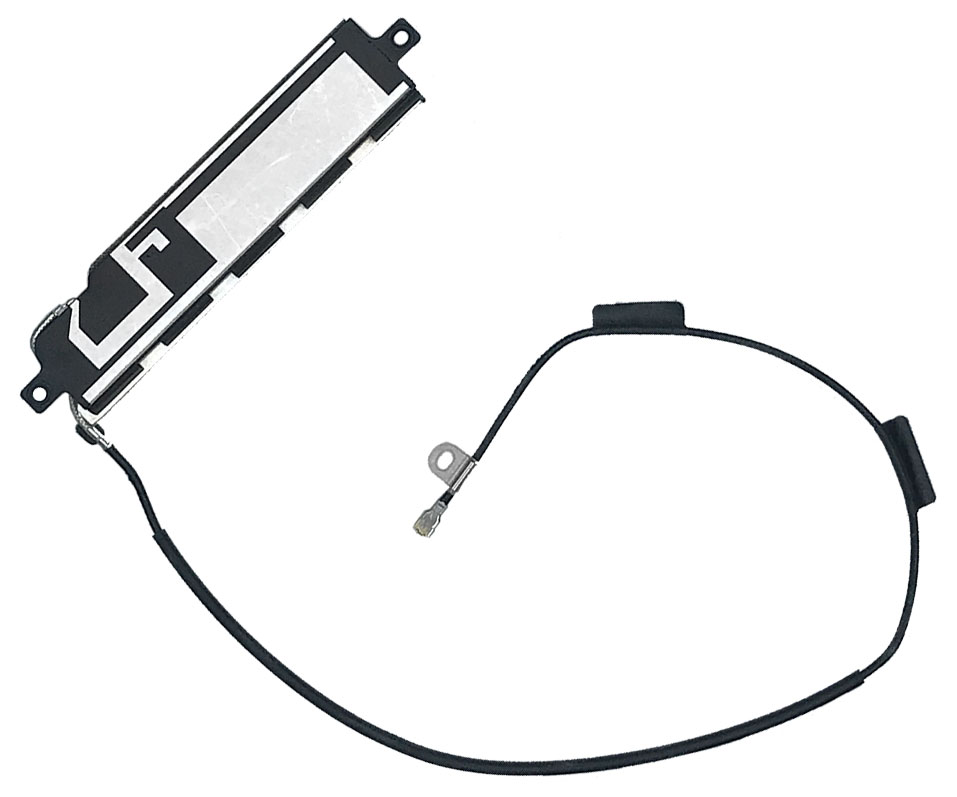

Wifi / Wireless Antenna, Lower
923-00570

Hard Drive Lid / Bracket, Left 923-0365 for iMac Retina 4K 21.5-inch 2017
Hard Drive Lid / Bracket, Left
923-0365

Hard Drive Lid / Bracket, Right 923-0364 for iMac Retina 4K 21.5-inch 2017
Hard Drive Lid / Bracket, Right
923-0364

Hard Drive Cradle 923-0326 for iMac Retina 4K 21.5-inch 2017
Hard Drive Cradle
923-0326

Hard Drive Data / Power Cable 923-0461 for iMac Retina 4K 21.5-inch 2017
Hard Drive Data / Power Cable
923-0461

Hard Drive Rubber Bumpers 076-1448 for iMac Retina 4K 21.5-inch 2017
Hard Drive Rubber Bumpers
076-1448

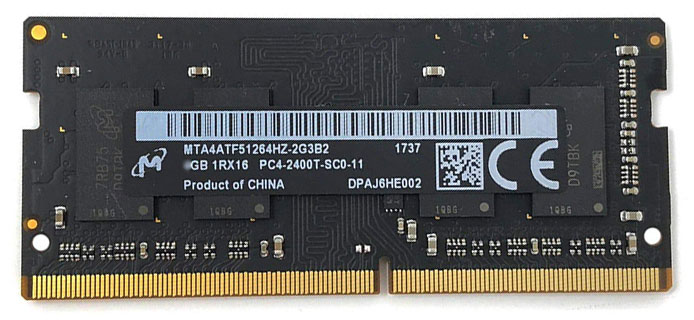

Memory SDRAM DDR4-2400 661-07301, 661-07302, 661-07303 for iMac Retina 4K 21.5-inch 2017
Memory SDRAM DDR4-2400
661-07301, 661-07302, 661-07303

Solid State Drive SSD SSPOLARIS PCIe 661-07309, 661-07312, 661-07313, 661-07320, 661-07588, 661-07589 for iMac Retina 4K 21.5-inch 2017
Solid State Drive SSD SSPOLARIS PCIe
661-07309, 661-07312, 661-07313, 661-07320, 661-07588, 661-07589

Wireless Card 661-07505 for iMac Retina 4K 21.5-inch 2017

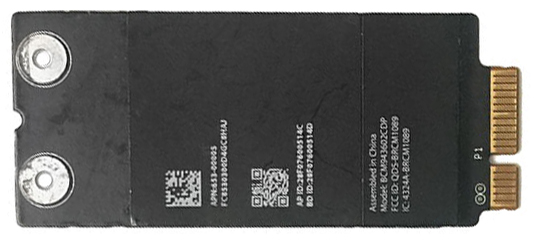

Wireless Card
661-07505

Clutch Hinge Mechanism 923-00046 for iMac Retina 4K 21.5-inch 2017
Clutch Hinge Mechanism
923-00046
