Exploded View Mac mini Late 2014

Mac mini Late 2014 - Exploded View

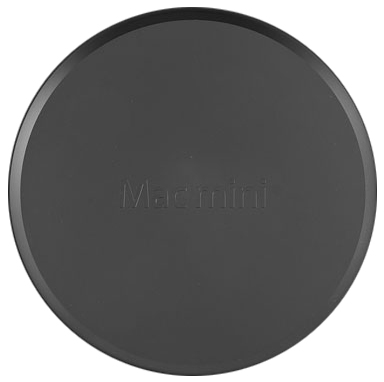

Bottom Case
923-00154

Bottom Case 923-00154 for Mac mini Late 2014

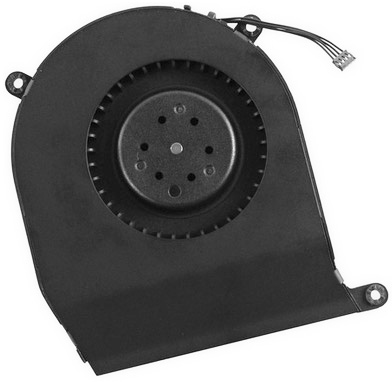

CPU Cooling Fan
922-9953

CPU Cooling Fan 922-9953 for Mac mini Late 2014

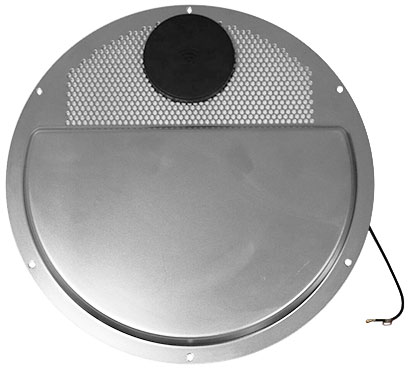

Antenna Plate w/ Wi-Fi Antenna
923-00158

Antenna Plate w/ Wi-Fi Antenna 923-00158 for Mac mini Late 2014

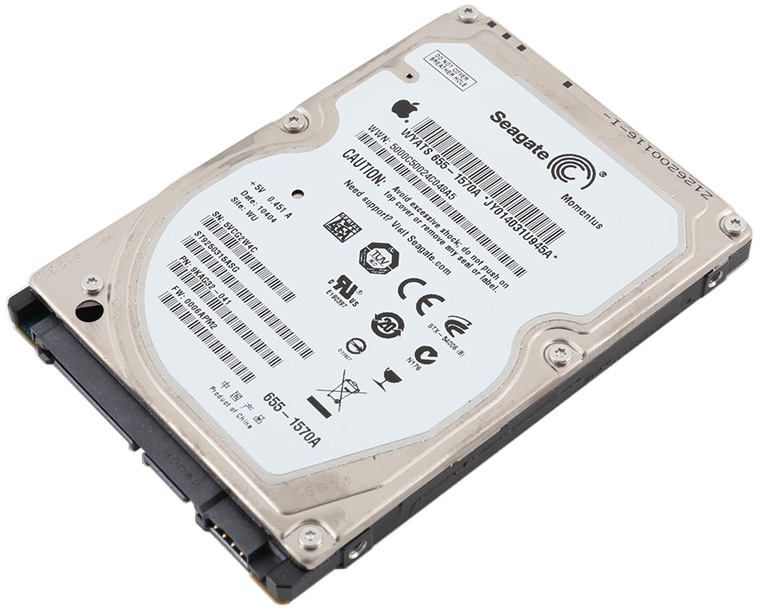

Hard Drive / Solid State SATA
661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026 for Mac mini Late 2014
Hard Drive Carrier w/ Grommets
923-00209

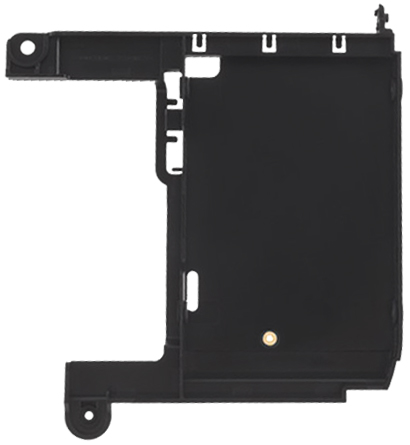

Hard Drive Carrier w/ Grommets 923-00209 for Mac mini Late 2014
Infrared (IR) Board w/ Cable
922-9558

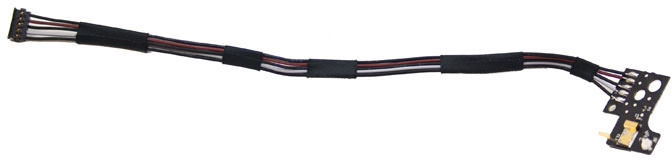

Infrared (IR) Board w/ Cable 922-9558 for Mac mini Late 2014
Logic Board
661-01019, 661-01020, 661-01021, 661-01022, 661-01023, 661-01024, 661-01025, 661-01026, 661-01557

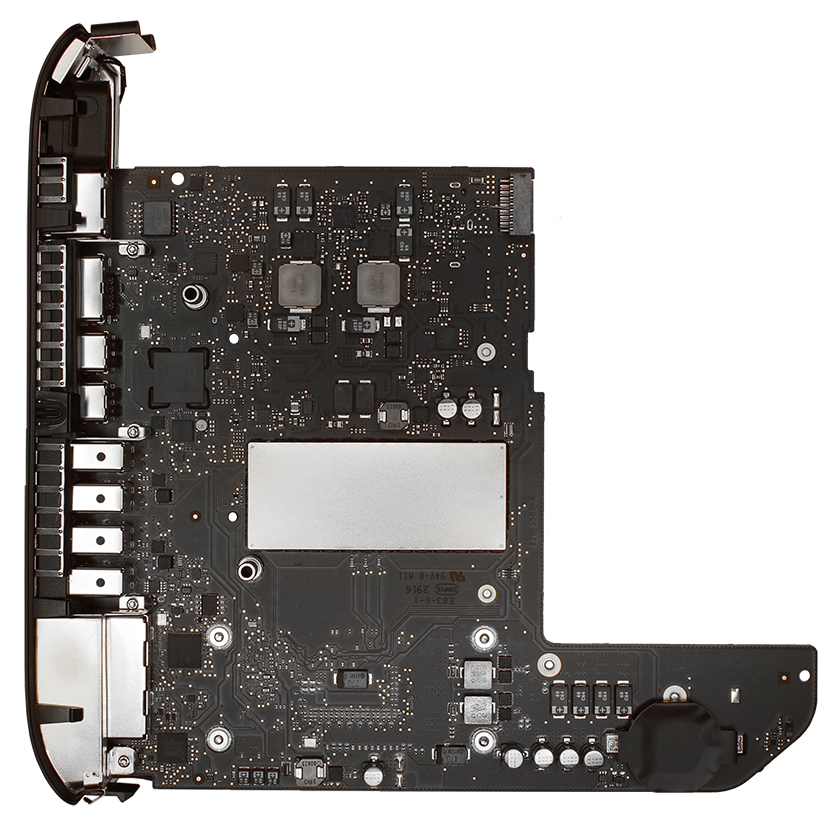

Logic Board 661-01019, 661-01020, 661-01021, 661-01022, 661-01023, 661-01024, 661-01025, 661-01026, 661-01557 for Mac mini Late 2014

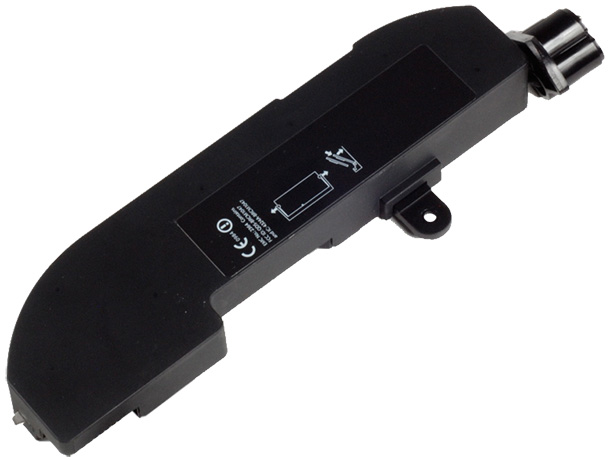

Power Supply 85W
661-7031

Power Supply 85W 661-7031 for Mac mini Late 2014

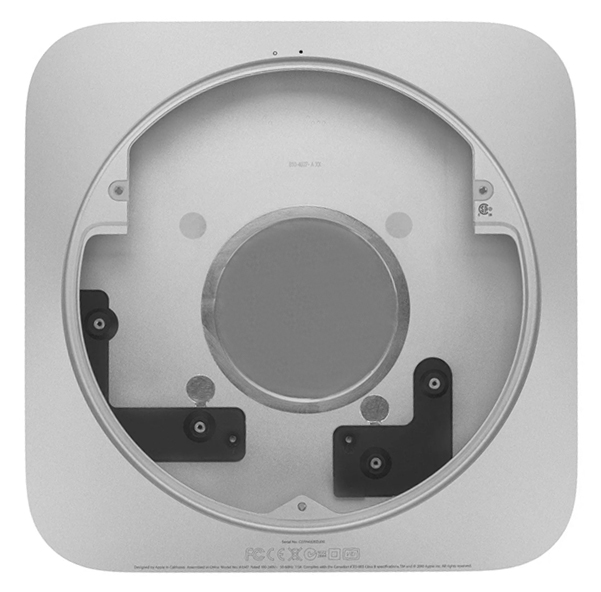

Housing / Enclosure
923-00153

Housing / Enclosure 923-00153 for Mac mini Late 2014

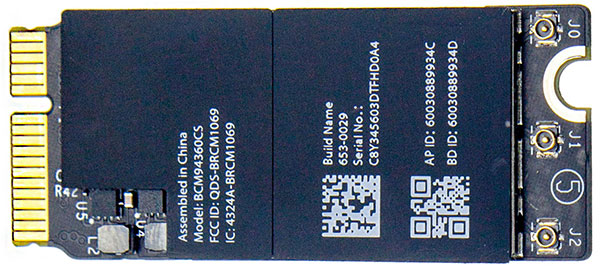

Wireless (Airport/Bluetooth) Card 661-01559 for Mac mini Late 2014
Wireless (Airport/Bluetooth) Card
661-01559

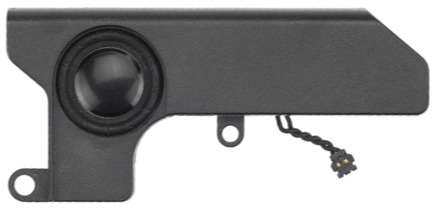

Speaker 076-1424 for Mac mini Late 2014
Speaker
076-1424

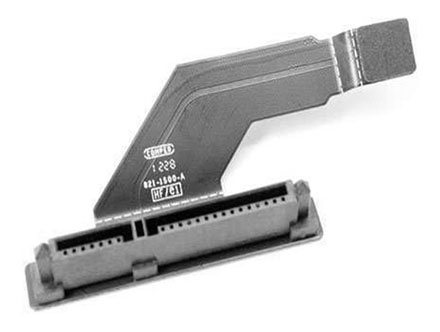

Flex Cable, SATA Hard Drive/SSD, Lower Bay 076-1390 for Mac mini Late 2014
Flex Cable, SATA Hard Drive/SSD, Lower Bay
076-1390

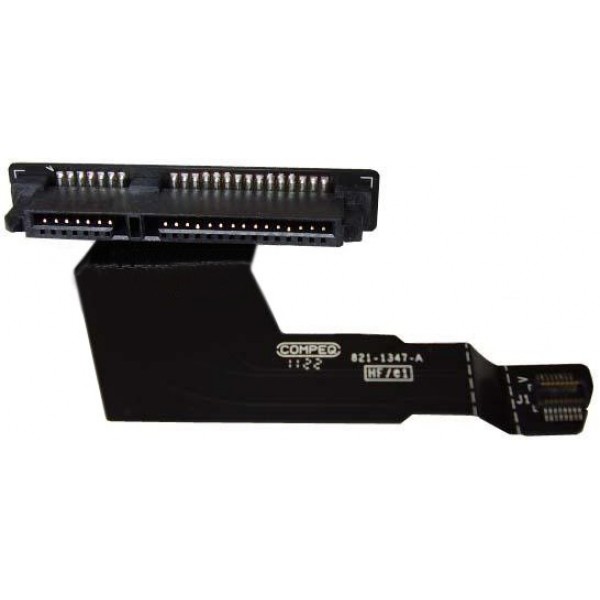

Flex Cable, SATA Hard Drive/SSD, Upper Bay 076-1391 for Mac mini Late 2014
Flex Cable, SATA Hard Drive/SSD, Upper Bay
076-1391

Hard Drive Retainer Plate 076-00017 for Mac mini Late 2014
Hard Drive Retainer Plate
076-00017

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for Mac mini Late 2014
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

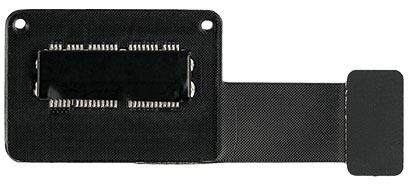

Solid State Drive (SSD) PCIe Flex Cable 076-00040 for Mac mini Late 2014
Solid State Drive (SSD) PCIe Flex Cable
076-00040

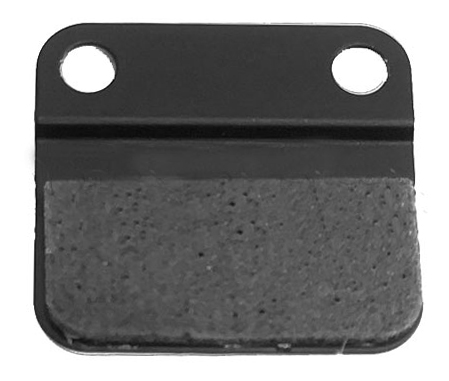

Retainer Plate, Flash Storage (SSD) 076-00018 for Mac mini Late 2014
Retainer Plate, Flash Storage (SSD)
076-00018

AC Cable Retention Clip 922-9569 for Mac mini Late 2014
AC Cable Retention Clip
922-9569

Power Supply Cable, Internal 922-9563 for Mac mini Late 2014
Power Supply Cable, Internal
922-9563
