Exploded View MacBook Retina 12-inch Early 2016

MacBook Retina 12-inch Early 2016 - Exploded View

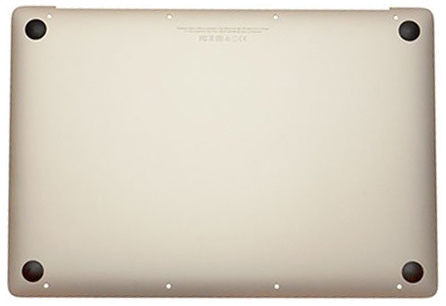

Bottom Case w/ Battery
661-04855, 661-04856, 661-04858, 661-04876

Bottom Case w/ Battery 661-04855, 661-04856, 661-04858, 661-04876 for MacBook Retina 12-inch Early 2016

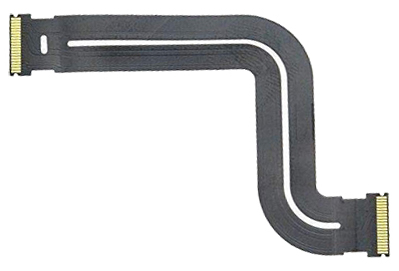

Keyboard To Input Device (IPD) Cable
923-00408

Keyboard To Input Device (IPD) Cable 923-00408 for MacBook Retina 12-inch Early 2016

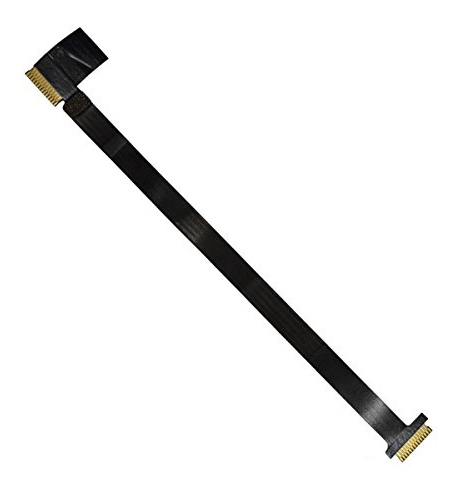

Audio Board Flex Cable
923-00403

Audio Board Flex Cable 923-00403 for MacBook Retina 12-inch Early 2016

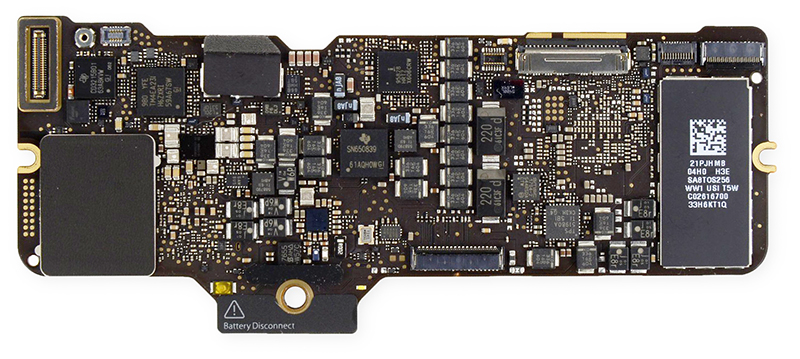

Logic Board
661-04728, 661-04729, 661-04730, 661-04737

Logic Board 661-04728, 661-04729, 661-04730, 661-04737 for MacBook Retina 12-inch Early 2016

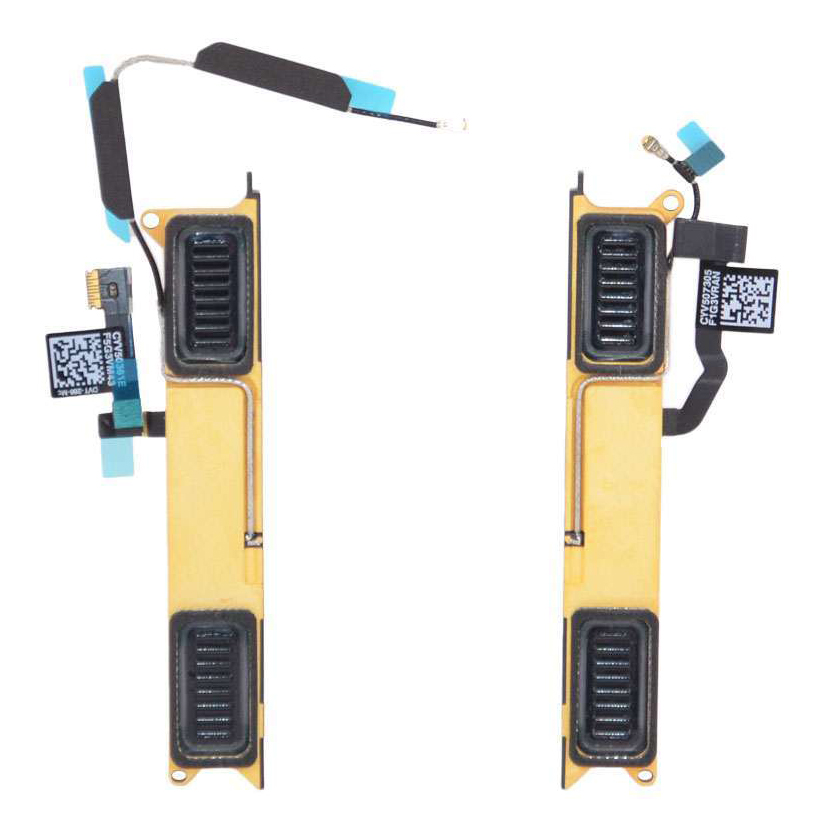

Speaker / Antenna Modules (Left and Right)
923-00996

Speaker / Antenna Modules (Left and Right) 923-00996 for MacBook Retina 12-inch Early 2016

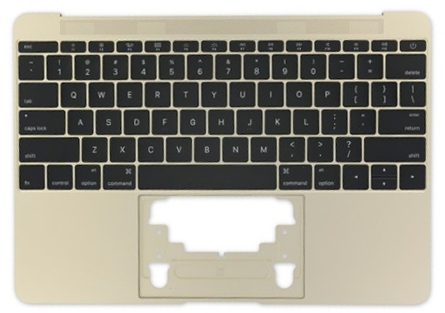

Top Case w/ Keyboard
661-04881, 661-04882, 661-04883, 661-04884

Top Case w/ Keyboard 661-04881, 661-04882, 661-04883, 661-04884 for MacBook Retina 12-inch Early 2016

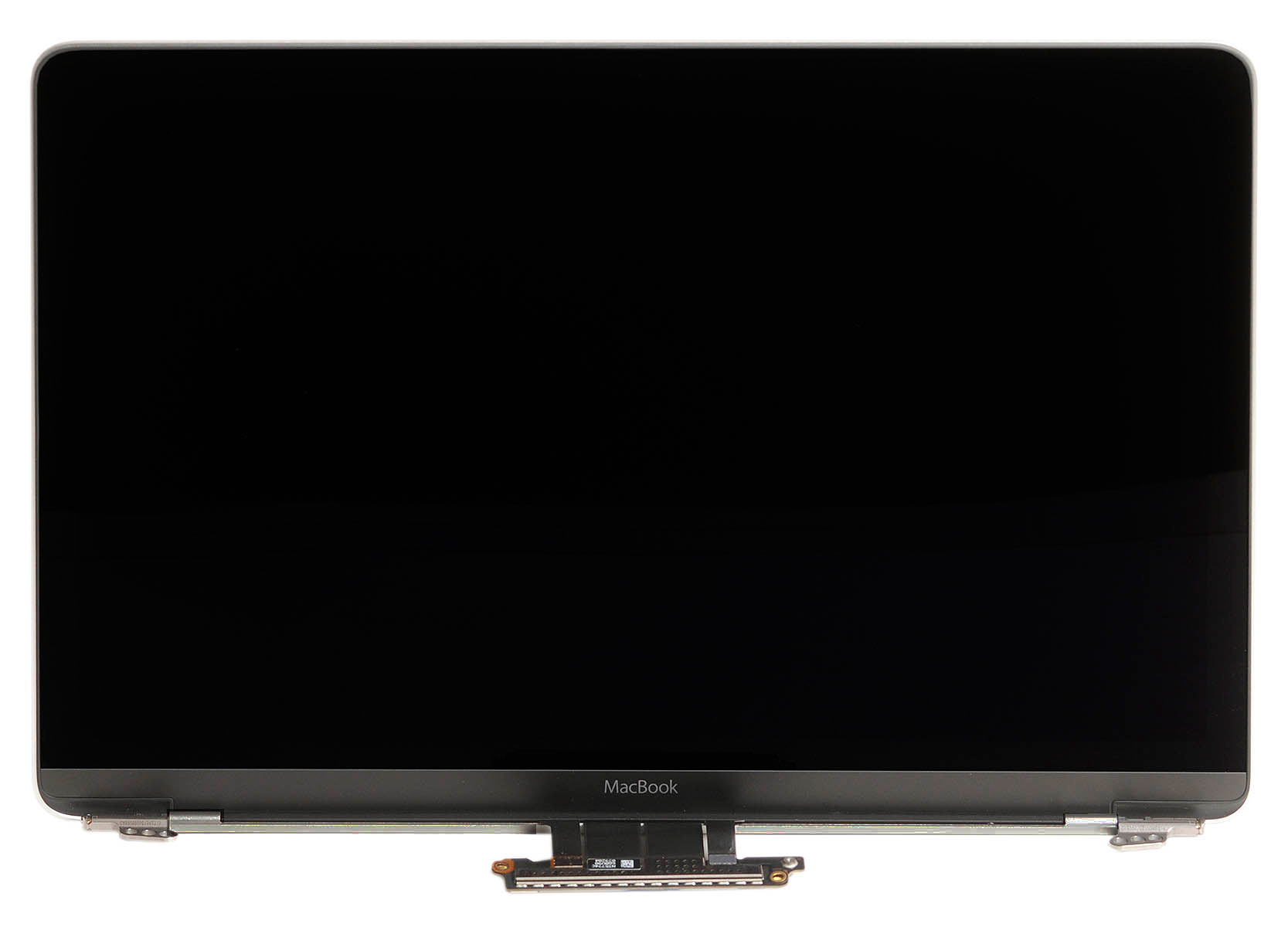

Display Assembly
661-02241, 661-02248, 661-02266, 661-04852

Display Assembly 661-02241, 661-02248, 661-02266, 661-04852 for MacBook Retina 12-inch Early 2016

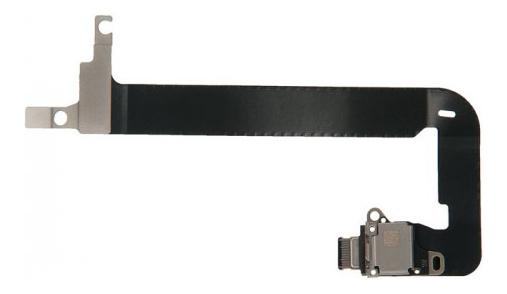

I/O Board And Flex Cable Assembly 923-00997 for MacBook Retina 12-inch Early 2016
I/O Board And Flex Cable Assembly
923-00997

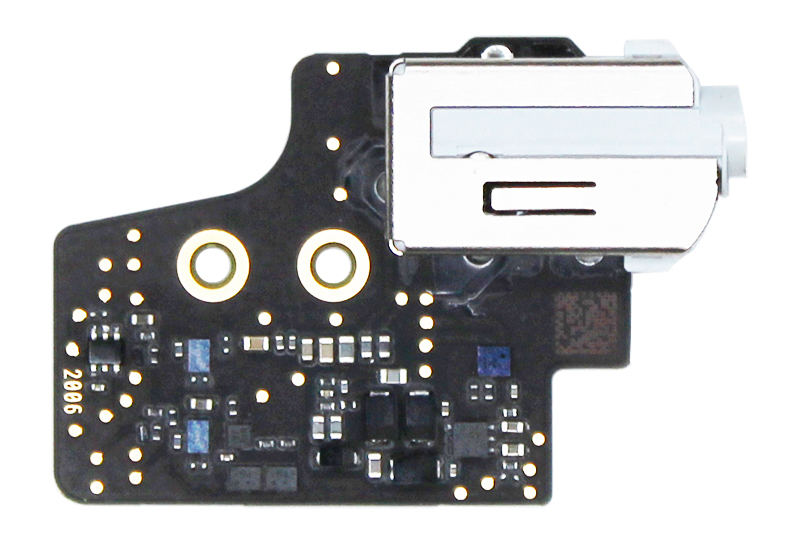

Audio Board 923-00413, 923-00440, 923-00441 for MacBook Retina 12-inch Early 2016
Audio Board
923-00413, 923-00440, 923-00441

Display (TCON) Flex Cable Cowling 923-01002 for MacBook Retina 12-inch Early 2016
Display (TCON) Flex Cable Cowling
923-01002

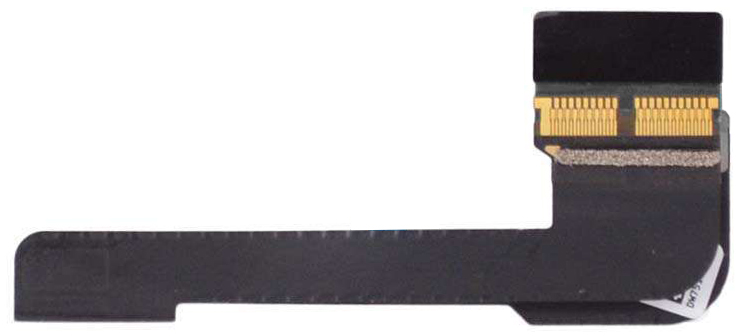

Display (TCON) Board Flex Cable 923-01004 for MacBook Retina 12-inch Early 2016
Display (TCON) Board Flex Cable
923-01004

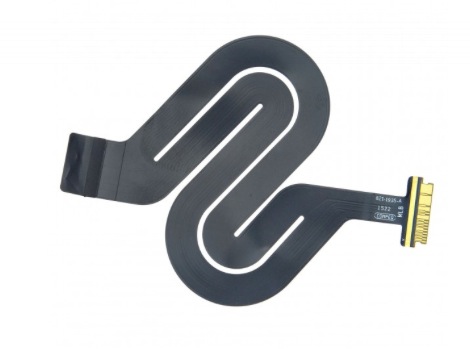

Trackpad (IPD) To Logic Board Flex Cable 923-01005 for MacBook Retina 12-inch Early 2016
Trackpad (IPD) To Logic Board Flex Cable
923-01005

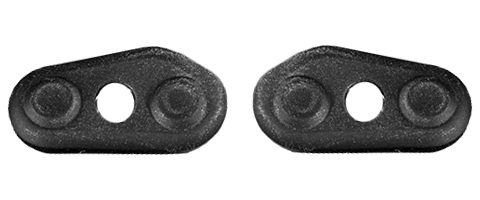

Display Clutch Screws Covers (Left and Right) 923-01001 for MacBook Retina 12-inch Early 2016
Display Clutch Screws Covers (Left and Right)
923-01001
