Exploded View MacBook Air 11-inch Mid 2012

MacBook Air 11-inch Mid 2012 - Exploded View



Bottom Case / Housing
923-0121

Bottom Case / Housing 923-0121 for MacBook Air 11-inch Mid 2012

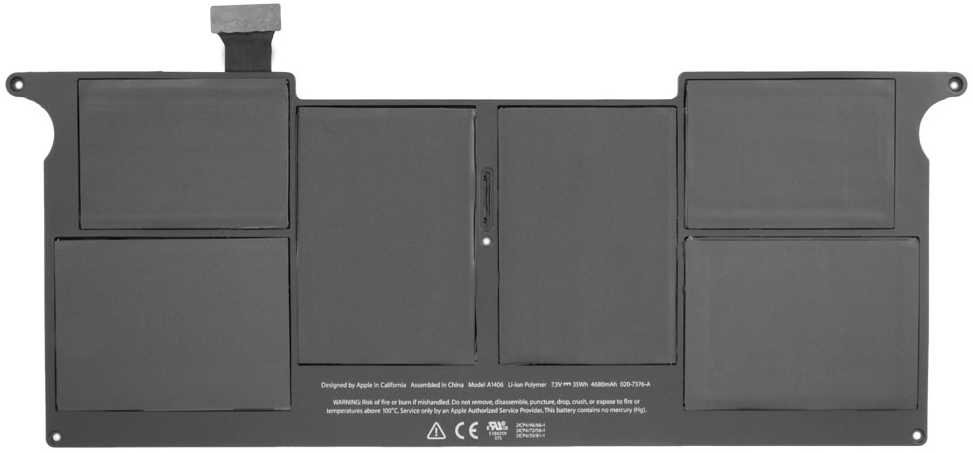

Battery
661-6068

Battery 661-6068 for MacBook Air 11-inch Mid 2012

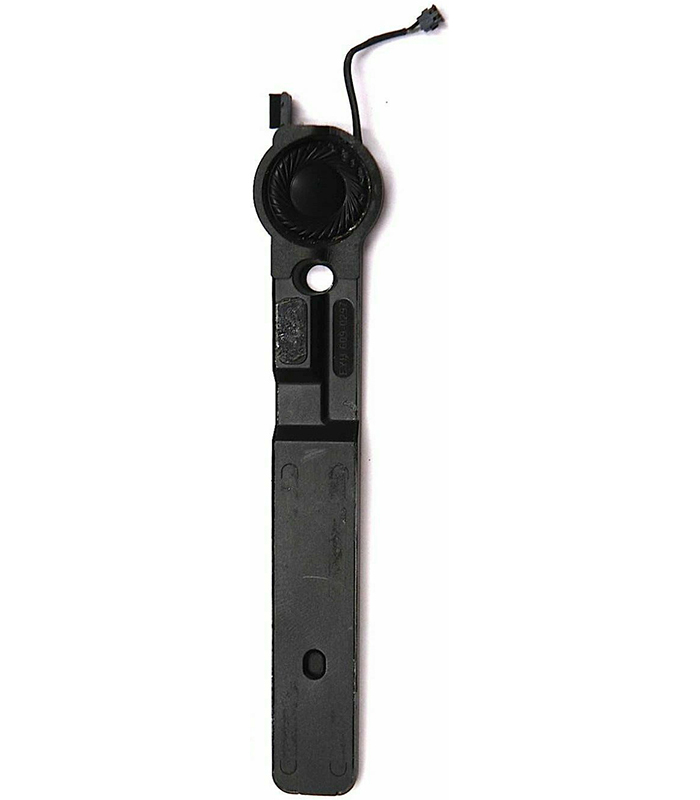

Speaker Left
922-9671

Speaker Left 922-9671 for MacBook Air 11-inch Mid 2012
Speaker Right
922-9672

Speaker Right 922-9672 for MacBook Air 11-inch Mid 2012

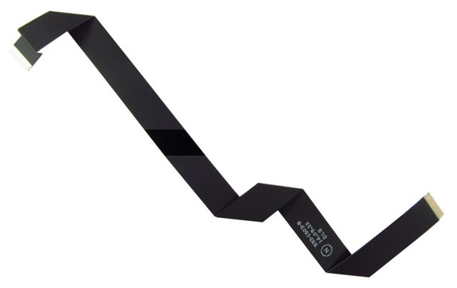

Trackpad To Logic Board Flex Cable
923-0120

Trackpad To Logic Board Flex Cable 923-0120 for MacBook Air 11-inch Mid 2012

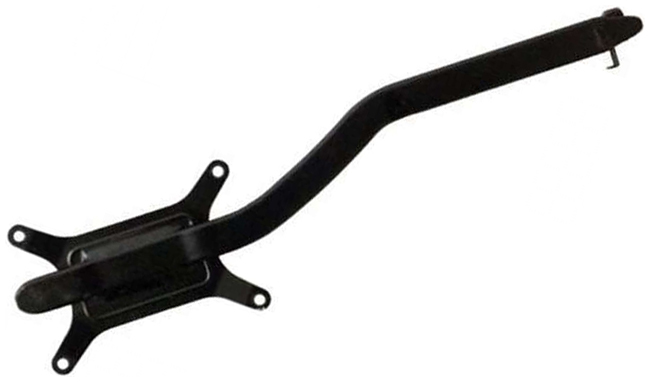

CPU Heatsink Kit
076-1388

CPU Heatsink Kit 076-1388 for MacBook Air 11-inch Mid 2012

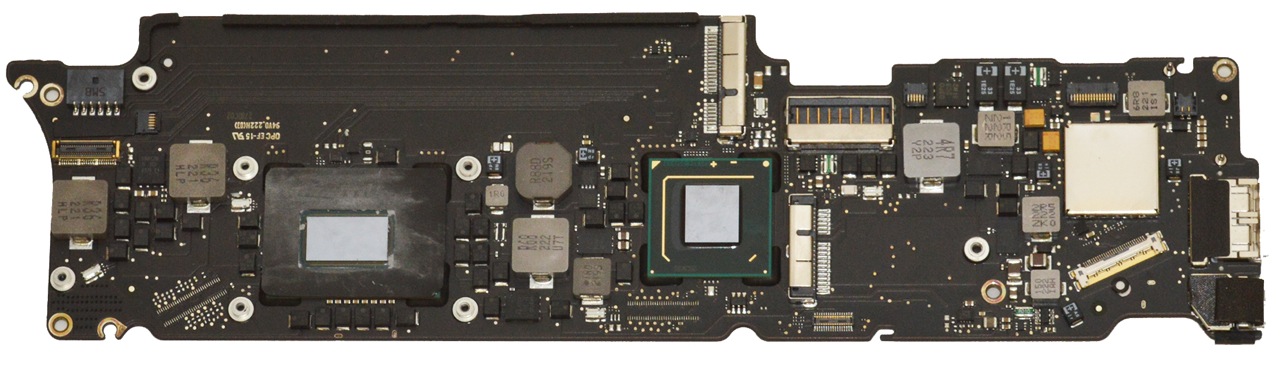

Logic Board
661-6625, 661-6626, 661-6627, 661-6628

Logic Board 661-6625, 661-6626, 661-6627, 661-6628 for MacBook Air 11-inch Mid 2012

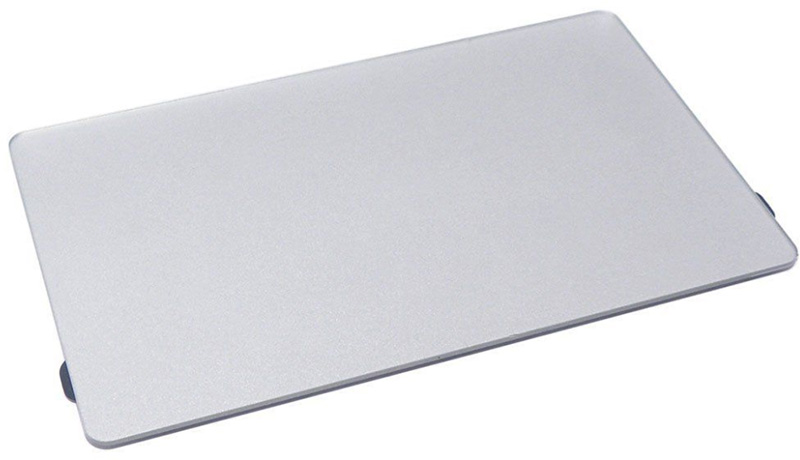

Trackpad
923-0117

Trackpad 923-0117 for MacBook Air 11-inch Mid 2012

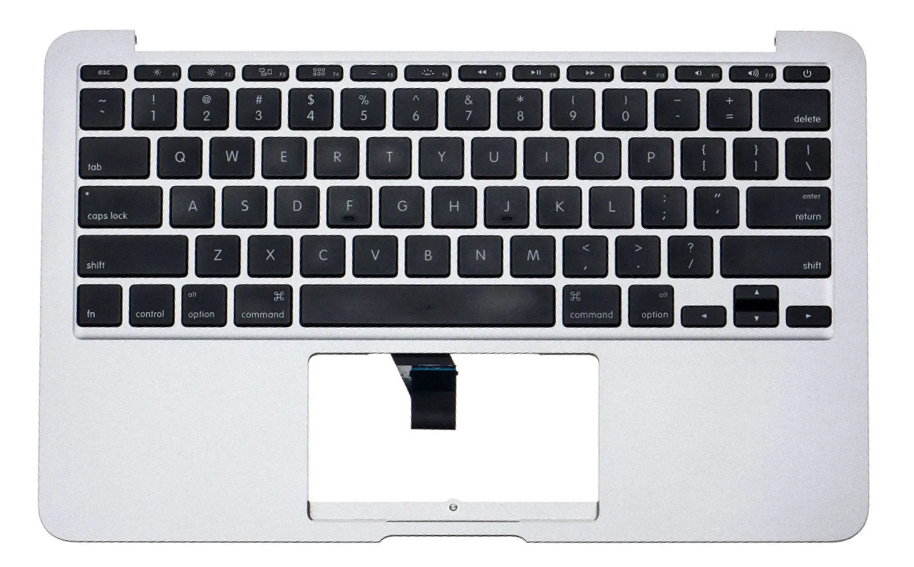

Top Case w/ Keyboard
661-6629

Top Case w/ Keyboard 661-6629 for MacBook Air 11-inch Mid 2012
Display Hinge Clutch Cover
076-1374

Display Hinge Clutch Cover 076-1374 for MacBook Air 11-inch Mid 2012

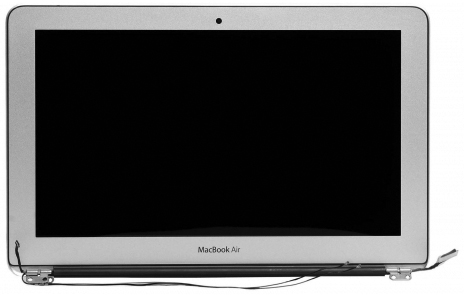

Display Assembly, Glossy
661-6624

Display Assembly, Glossy 661-6624 for MacBook Air 11-inch Mid 2012
Wireless (Airport/Bluetooth) Card 661-6622 for MacBook Air 11-inch Mid 2012
Wireless (Airport/Bluetooth) Card
661-6622

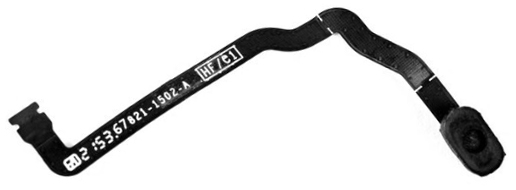

Microphone w/ Flex Cable 076-1405 for MacBook Air 11-inch Mid 2012
Microphone w/ Flex Cable
076-1405

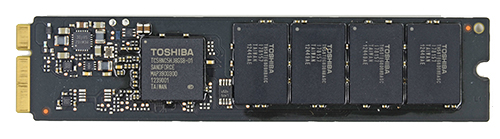

Solid State Drive (SSD) PCIe 661-6618, 661-6619, 661-6620, 661-6621 for MacBook Air 11-inch Mid 2012
Solid State Drive (SSD) PCIe
661-6618, 661-6619, 661-6620, 661-6621

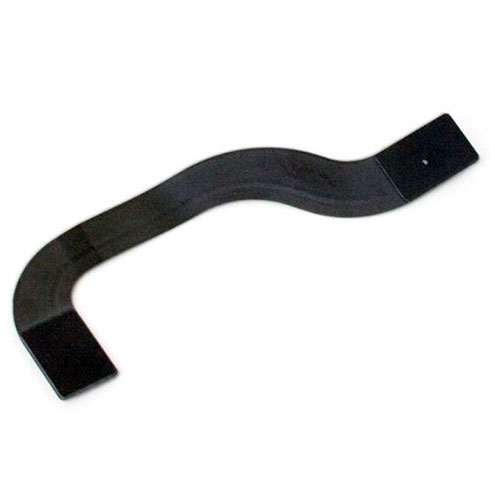

I/O Board Flex Cable 923-0119 for MacBook Air 11-inch Mid 2012
I/O Board Flex Cable
923-0119

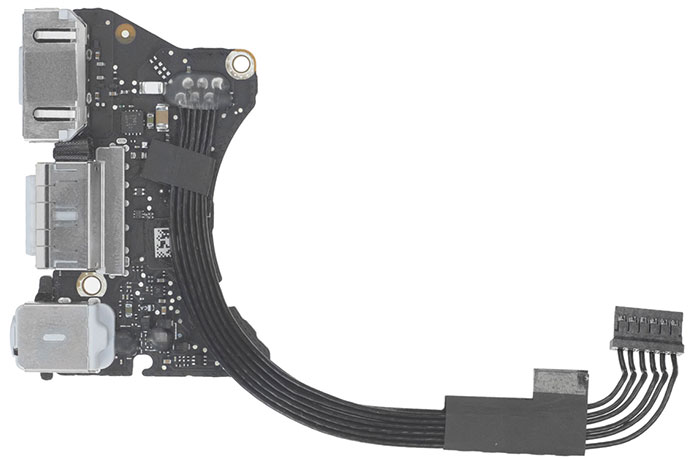

I/O Board Assembly 923-0118 for MacBook Air 11-inch Mid 2012
I/O Board Assembly
923-0118

CPU Cooling Fan 922-9973 for MacBook Air 11-inch Mid 2012
CPU Cooling Fan
922-9973

Fan Duct Rubber Gasket 923-0012 for MacBook Air 11-inch Mid 2012
Fan Duct Rubber Gasket
923-0012

Camera Cable Holder (Rubber Gasket) 922-9699 for MacBook Air 11-inch Mid 2012
Camera Cable Holder (Rubber Gasket)
922-9699

Display / LVDS / eDP Cable Holder (Rubber Gasket) 923-0123 for MacBook Air 11-inch Mid 2012
Display / LVDS / eDP Cable Holder (Rubber Gasket)
923-0123

Trackpad Flexure, Left 922-9648 for MacBook Air 11-inch Mid 2012
Trackpad Flexure, Left
922-9648

Trackpad Flexure, Right 922-9647 for MacBook Air 11-inch Mid 2012
Trackpad Flexure, Right
922-9647
