Exploded View MacBook Air 13-inch Early 2014

MacBook Air 13-inch Early 2014 - Exploded View



Bottom Case / Cover
923-0129

Bottom Case / Cover 923-0129 for MacBook Air 13-inch Early 2014
Li-Ion Battery
661-6055

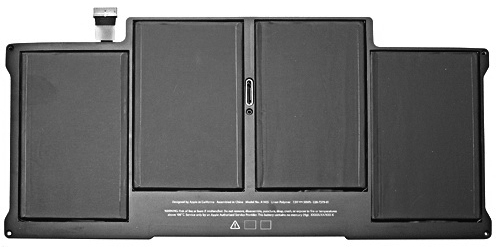

Li-Ion Battery 661-6055 for MacBook Air 13-inch Early 2014
Speaker Left
923-0463

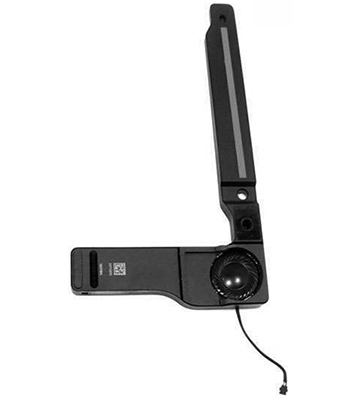

Speaker Left 923-0463 for MacBook Air 13-inch Early 2014

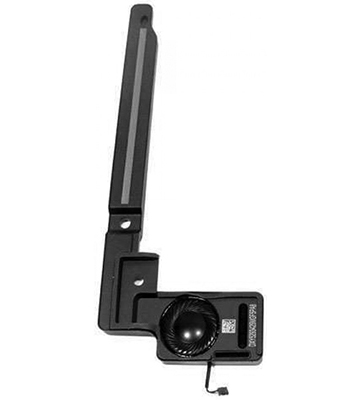

Speaker, Right
923-0127

Speaker, Right 923-0127 for MacBook Air 13-inch Early 2014

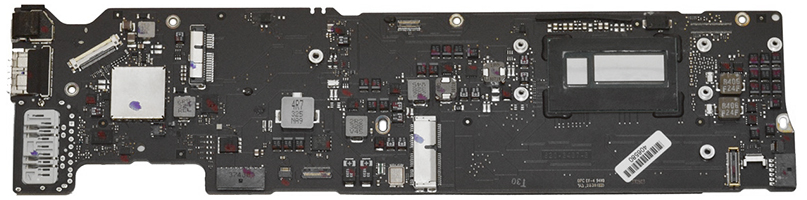

Logic Board
661-00062, 661-00063, 661-7476, 661-7477, 661-7478, 661-7479

Logic Board 661-00062, 661-00063, 661-7476, 661-7477, 661-7478, 661-7479 for MacBook Air 13-inch Early 2014

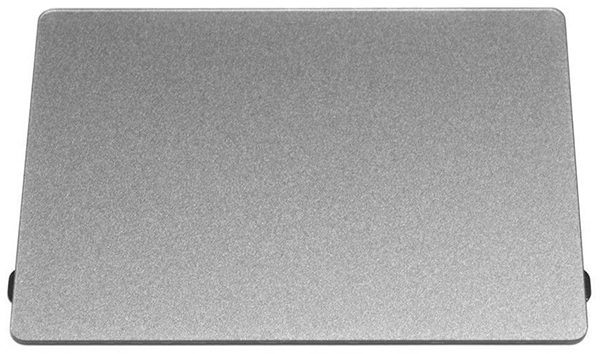

Trackpad
923-0438

Trackpad 923-0438 for MacBook Air 13-inch Early 2014

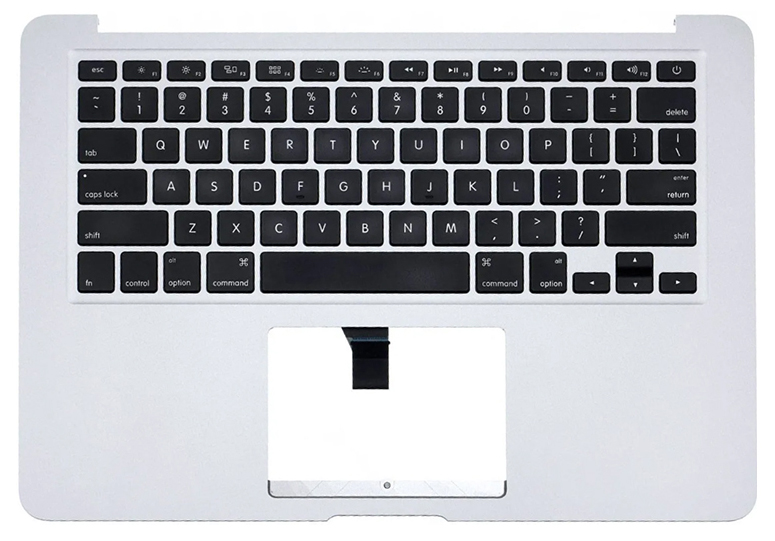

Top Case w/ Keyboard
661-7480

Top Case w/ Keyboard 661-7480 for MacBook Air 13-inch Early 2014
Display Hinge Clutch Cover Barrel
076-1373

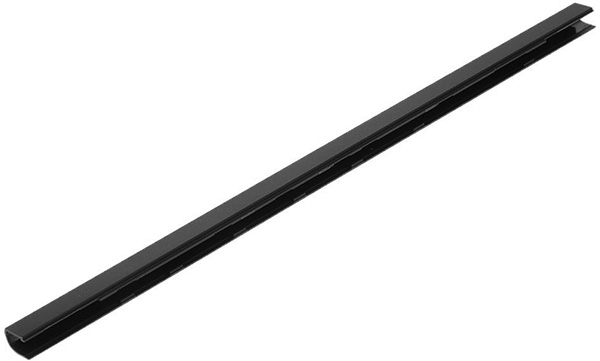

Display Hinge Clutch Cover Barrel 076-1373 for MacBook Air 13-inch Early 2014

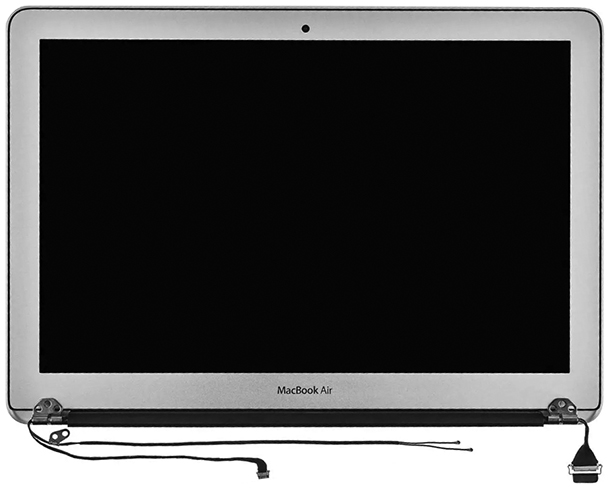

Display Assembly, Complete
661-7475

Display Assembly, Complete 661-7475 for MacBook Air 13-inch Early 2014

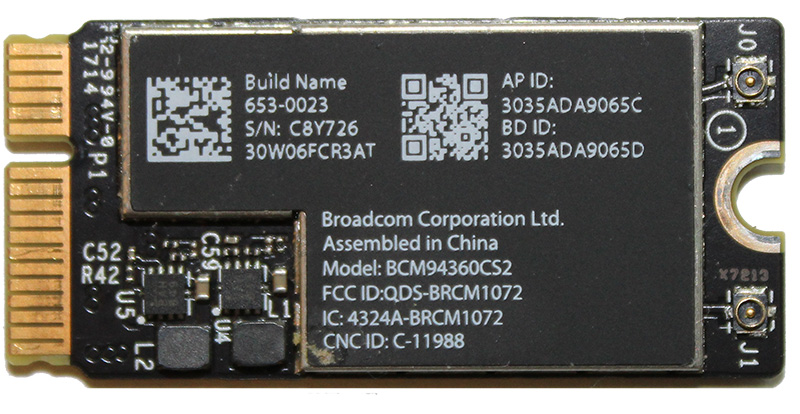

Wireless (Airport/Bluetooth) Card 661-7481 for MacBook Air 13-inch Early 2014
Wireless (Airport/Bluetooth) Card
661-7481

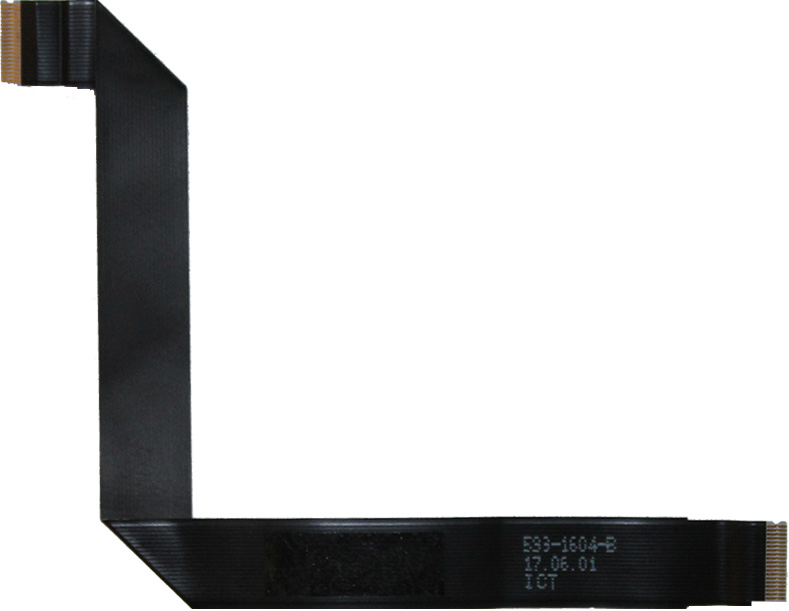

Trackpad (IPD) To Logic Board Flex Cable 923-0441 for MacBook Air 13-inch Early 2014
Trackpad (IPD) To Logic Board Flex Cable
923-0441

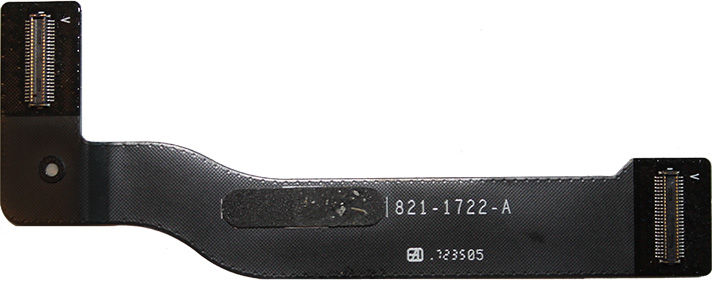

I/O Magsafe 2 Board Flex Cable Left 923-0440 for MacBook Air 13-inch Early 2014
I/O Magsafe 2 Board Flex Cable Left
923-0440

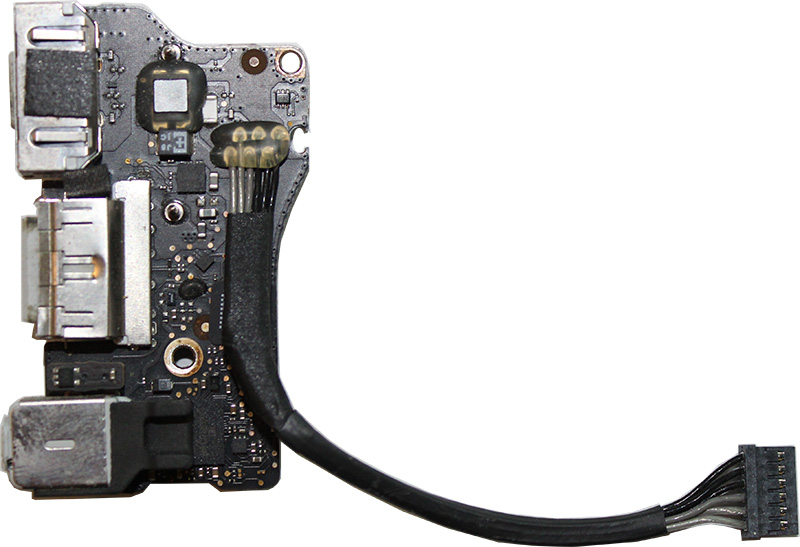

I/O Magsafe 2 / DC-In Board 923-0439 for MacBook Air 13-inch Early 2014
I/O Magsafe 2 / DC-In Board
923-0439

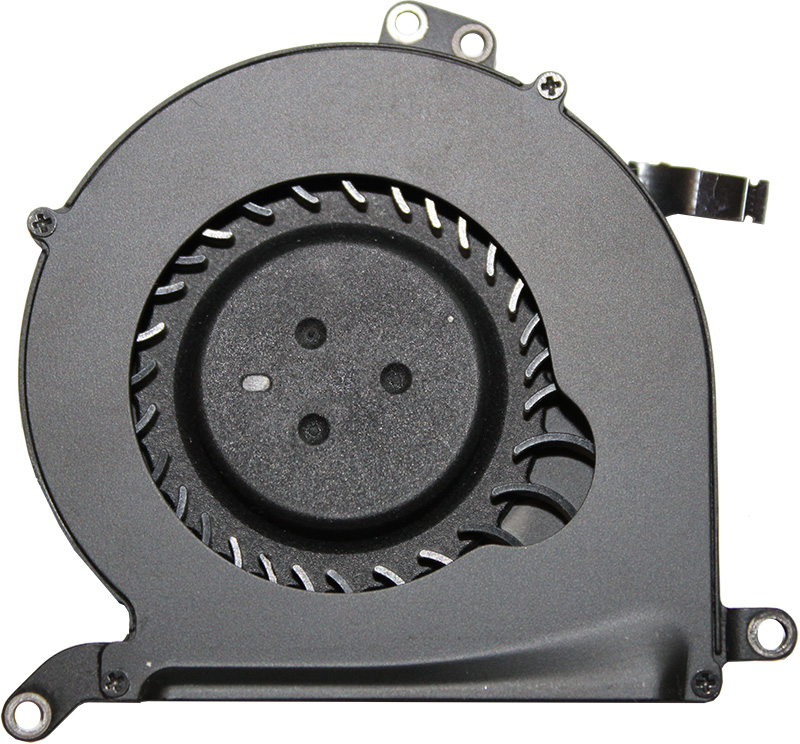

CPU Cooling Fan 922-9643 for MacBook Air 13-inch Early 2014
CPU Cooling Fan
922-9643

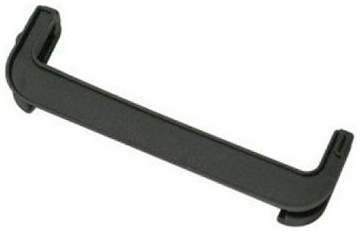

Thermal Module / Fan Gasket 922-9669 for MacBook Air 13-inch Early 2014
Thermal Module / Fan Gasket
922-9669

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462 for MacBook Air 13-inch Early 2014
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462

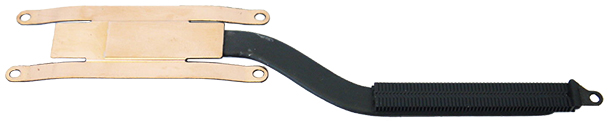

CPU Heatsink 076-1442 for MacBook Air 13-inch Early 2014
CPU Heatsink
076-1442

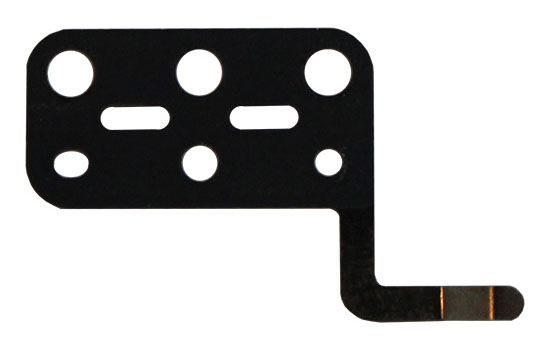

Trackpad Flexure, Left 922-9648 for MacBook Air 13-inch Early 2014
Trackpad Flexure, Left
922-9648

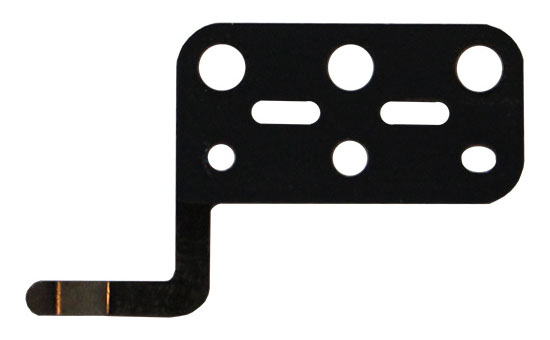

Trackpad Flexure, Right 922-9647 for MacBook Air 13-inch Early 2014
Trackpad Flexure, Right
922-9647
