Exploded View MacBook Air 11-inch Early 2015

MacBook Air 11-inch Early 2015 - Exploded View



Bottom Case / Housing
923-0121

Bottom Case / Housing 923-0121 for MacBook Air 11-inch Early 2015
Battery
661-7467

Battery 661-7467 for MacBook Air 11-inch Early 2015

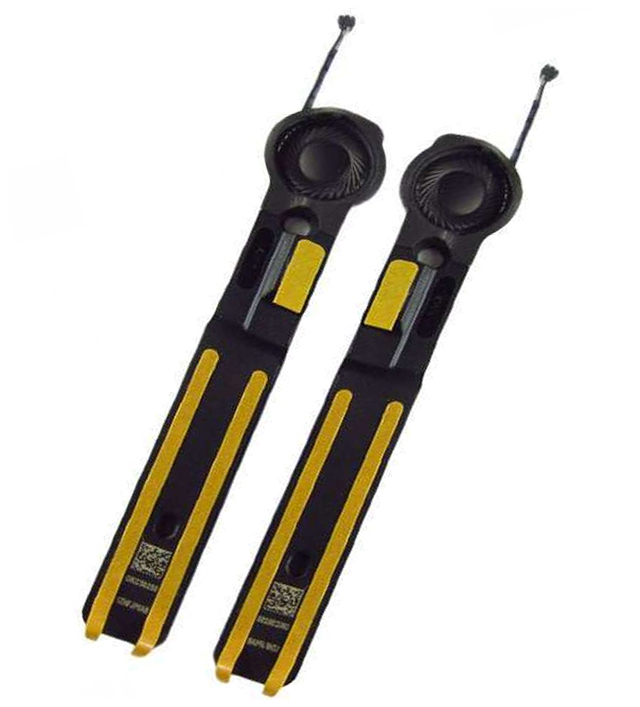

Speaker Set (Left and Right)
923-00498

Speaker Set (Left and Right) 923-00498 for MacBook Air 11-inch Early 2015
Trackpad (IPD) Flex Cable
923-0432

Trackpad (IPD) Flex Cable 923-0432 for MacBook Air 11-inch Early 2015

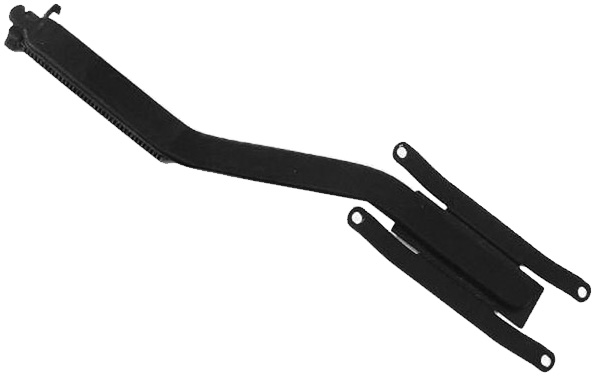

CPU Heatsink
076-00069

CPU Heatsink 076-00069 for MacBook Air 11-inch Early 2015

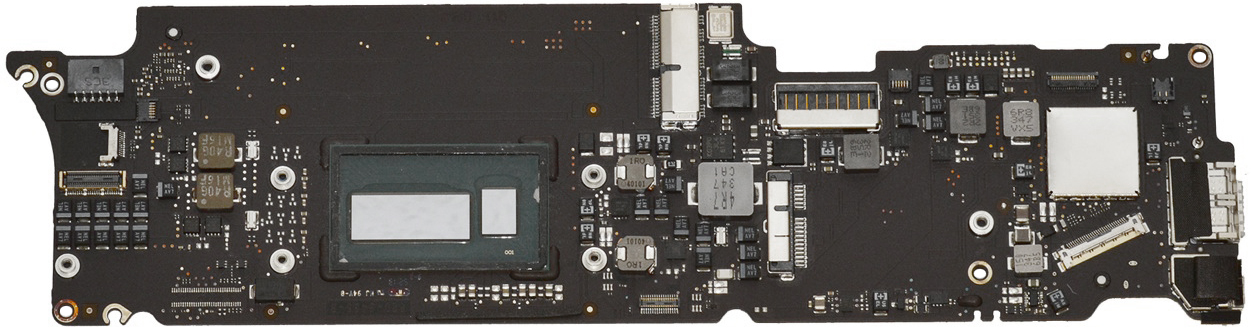

Logic Board
661-02346, 661-02347, 661-02348, 661-02349

Logic Board 661-02346, 661-02347, 661-02348, 661-02349 for MacBook Air 11-inch Early 2015
Trackpad
923-0429

Trackpad 923-0429 for MacBook Air 11-inch Early 2015
Top Case w/ Keyboard, US
661-7473

Top Case w/ Keyboard, US 661-7473 for MacBook Air 11-inch Early 2015
Display Hinge Clutch Cover
076-1374

Display Hinge Clutch Cover 076-1374 for MacBook Air 11-inch Early 2015
Display/LCD Assembly, Complete
661-7468

Display/LCD Assembly, Complete 661-7468 for MacBook Air 11-inch Early 2015
Wireless (Airport/Bluetooth) Card 661-7465 for MacBook Air 11-inch Early 2015
Wireless (Airport/Bluetooth) Card
661-7465

I/O Board Flex Cable 923-0431 for MacBook Air 11-inch Early 2015
I/O Board Flex Cable
923-0431

I/O (Magsafe 2, USB, Audio) Board Assembly 923-0430 for MacBook Air 11-inch Early 2015
I/O (Magsafe 2, USB, Audio) Board Assembly
923-0430

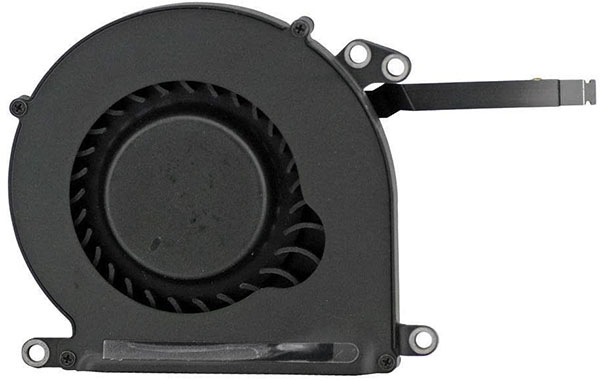

CPU Cooling Fan 923-00500 for MacBook Air 11-inch Early 2015
CPU Cooling Fan
923-00500

Fan Duct Rubber Gasket 923-0012 for MacBook Air 11-inch Early 2015
Fan Duct Rubber Gasket
923-0012

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462 for MacBook Air 11-inch Early 2015
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462

Camera Cable Holder (Rubber Gasket) 922-9699 for MacBook Air 11-inch Early 2015
Camera Cable Holder (Rubber Gasket)
922-9699

Display / LVDS / eDP Cable Holder (Rubber Gasket) 923-0123 for MacBook Air 11-inch Early 2015
Display / LVDS / eDP Cable Holder (Rubber Gasket)
923-0123

Trackpad Flexure, Left 922-9648 for MacBook Air 11-inch Early 2015
Trackpad Flexure, Left
922-9648

Trackpad Flexure, Right 922-9647 for MacBook Air 11-inch Early 2015
Trackpad Flexure, Right
922-9647
