Exploded View MacBook Air 13-inch Early 2015

MacBook Air 13-inch Early 2015 - Exploded View



Bottom Case / Cover
923-0129

Bottom Case / Cover 923-0129 for MacBook Air 13-inch Early 2015
Li-Ion Battery
661-6055

Li-Ion Battery 661-6055 for MacBook Air 13-inch Early 2015
Speaker Left
923-0463

Speaker Left 923-0463 for MacBook Air 13-inch Early 2015
Speaker, Right
923-0127

Speaker, Right 923-0127 for MacBook Air 13-inch Early 2015

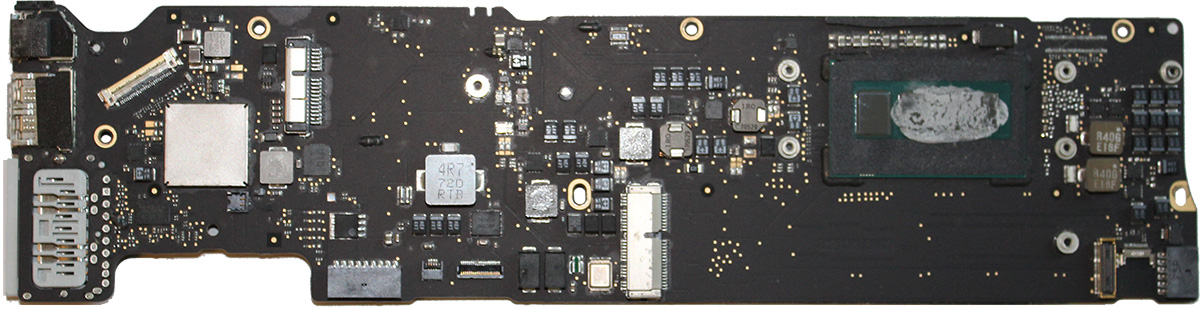

Logic Board
661-02391, 661-02392, 661-02393, 661-02394

Logic Board 661-02391, 661-02392, 661-02393, 661-02394 for MacBook Air 13-inch Early 2015
Trackpad
923-00976

Trackpad 923-00976 for MacBook Air 13-inch Early 2015
Top Case w/ Keyboard
661-7480

Top Case w/ Keyboard 661-7480 for MacBook Air 13-inch Early 2015
Display Hinge Clutch Cover Barrel
076-1373

Display Hinge Clutch Cover Barrel 076-1373 for MacBook Air 13-inch Early 2015
Display Assembly, Complete
661-7475

Display Assembly, Complete 661-7475 for MacBook Air 13-inch Early 2015
Wireless (Airport/Bluetooth) Card 661-7481 for MacBook Air 13-inch Early 2015
Wireless (Airport/Bluetooth) Card
661-7481

Trackpad (IPD) To Logic Board Flex Cable 923-0441 for MacBook Air 13-inch Early 2015
Trackpad (IPD) To Logic Board Flex Cable
923-0441

I/O Magsafe 2 Board Flex Cable Left 923-0440 for MacBook Air 13-inch Early 2015
I/O Magsafe 2 Board Flex Cable Left
923-0440

I/O Magsafe 2 / DC-In Board 923-0439 for MacBook Air 13-inch Early 2015
I/O Magsafe 2 / DC-In Board
923-0439

CPU Cooling Fan 922-9643 for MacBook Air 13-inch Early 2015
CPU Cooling Fan
922-9643

Thermal Module / Fan Gasket 922-9669 for MacBook Air 13-inch Early 2015
Thermal Module / Fan Gasket
922-9669

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462 for MacBook Air 13-inch Early 2015
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462

CPU Heatsink 076-00070 for MacBook Air 13-inch Early 2015
CPU Heatsink
076-00070

Trackpad Flexure, Left 922-9648 for MacBook Air 13-inch Early 2015
Trackpad Flexure, Left
922-9648

Trackpad Flexure, Right 922-9647 for MacBook Air 13-inch Early 2015
Trackpad Flexure, Right
922-9647
