Exploded View MacBook Pro 13-inch Mid 2012

MacBook Pro 13-inch Mid 2012 - Exploded View



Bottom Case
923-0103

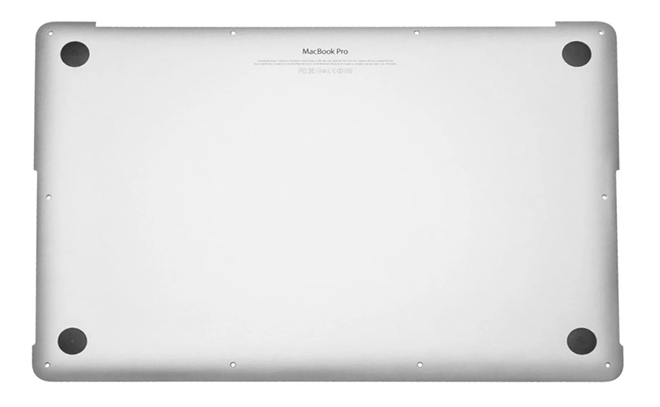

Bottom Case 923-0103 for MacBook Pro 13-inch Mid 2012

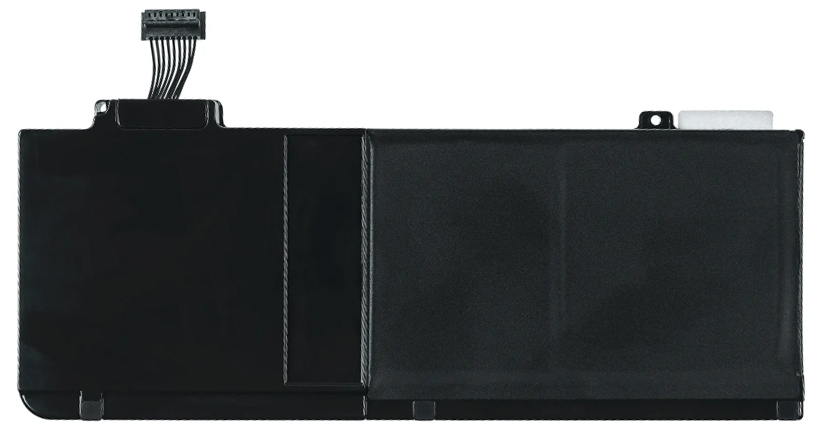

Battery
661-5557

Battery 661-5557 for MacBook Pro 13-inch Mid 2012
Hard Drive / Solid State SATA
661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026 for MacBook Pro 13-inch Mid 2012
Hard Drive Front Bracket w/ IR-Sleep Cable
923-0741

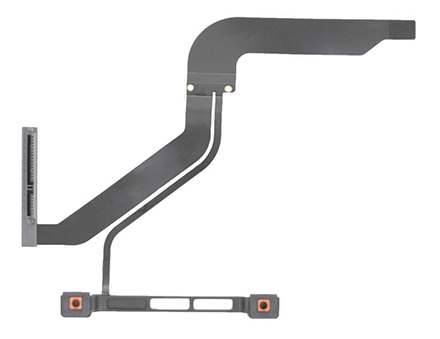

Hard Drive Front Bracket w/ IR-Sleep Cable 923-0741 for MacBook Pro 13-inch Mid 2012

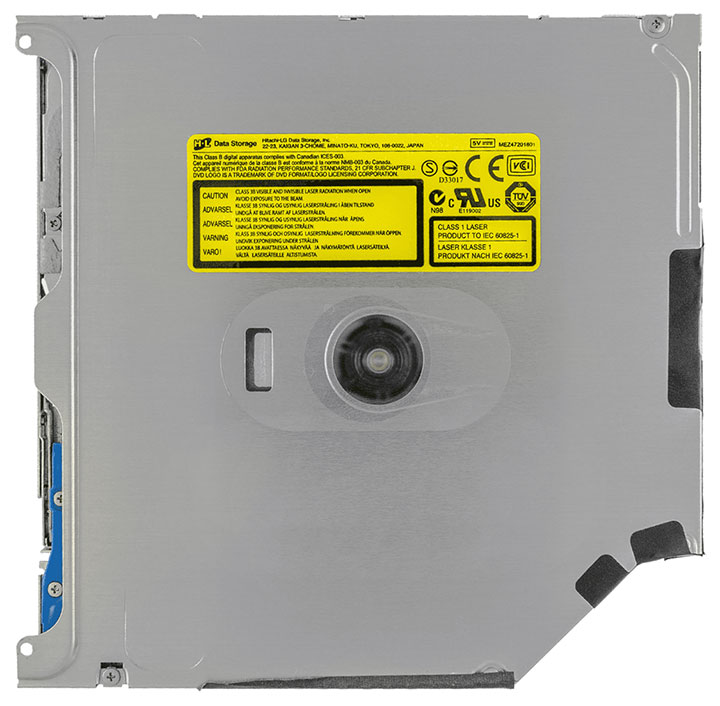

DVD-R/CD-RW SuperDrive 8x Slot Load
661-6593

DVD-R/CD-RW SuperDrive 8x Slot Load 661-6593 for MacBook Pro 13-inch Mid 2012
CPU Cooling Fan
922-8620

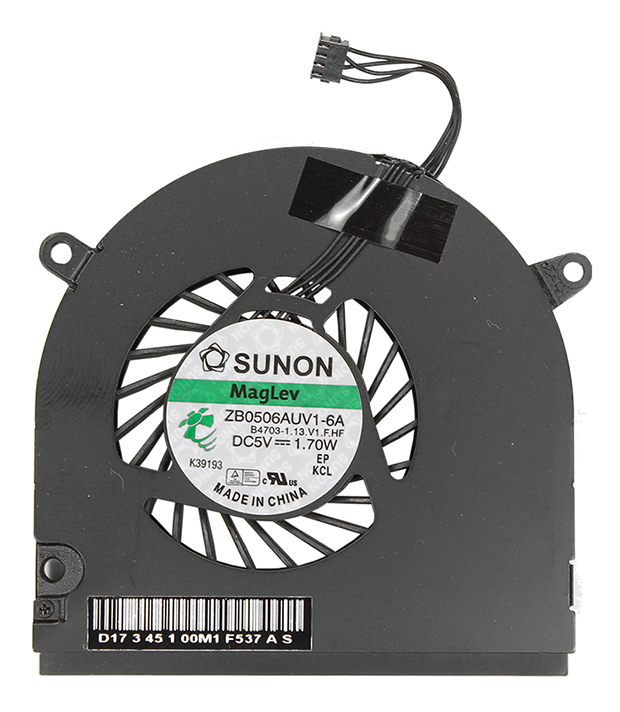

CPU Cooling Fan 922-8620 for MacBook Pro 13-inch Mid 2012

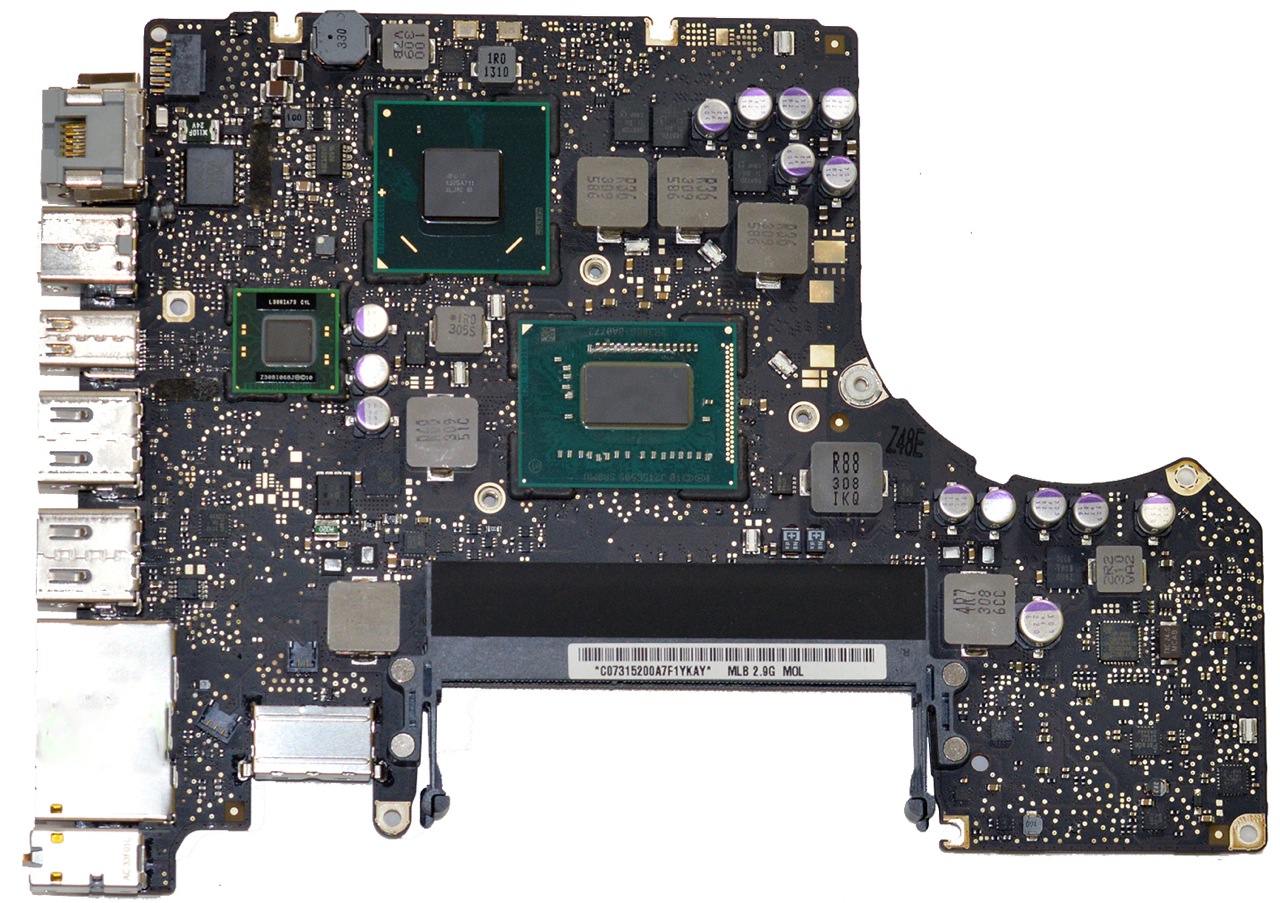

Logic Board
661-6588, 661-6589

Logic Board 661-6588, 661-6589 for MacBook Pro 13-inch Mid 2012

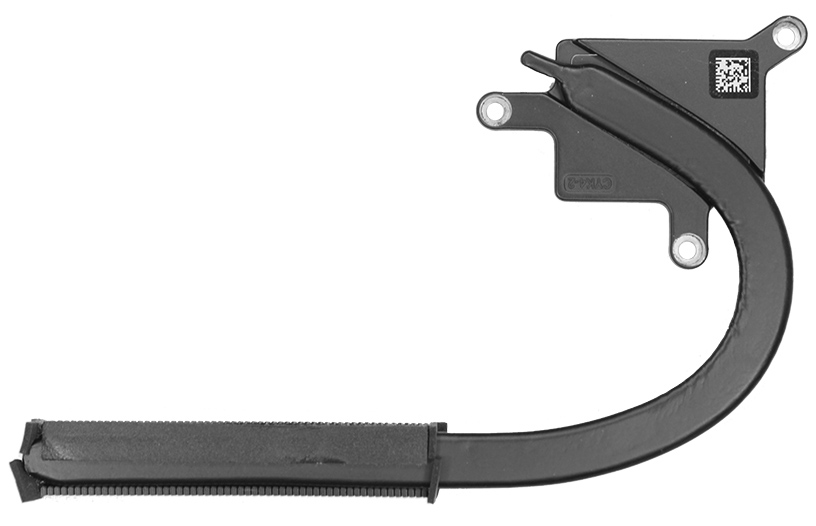

CPU Heatsink
923-0105

CPU Heatsink 923-0105 for MacBook Pro 13-inch Mid 2012

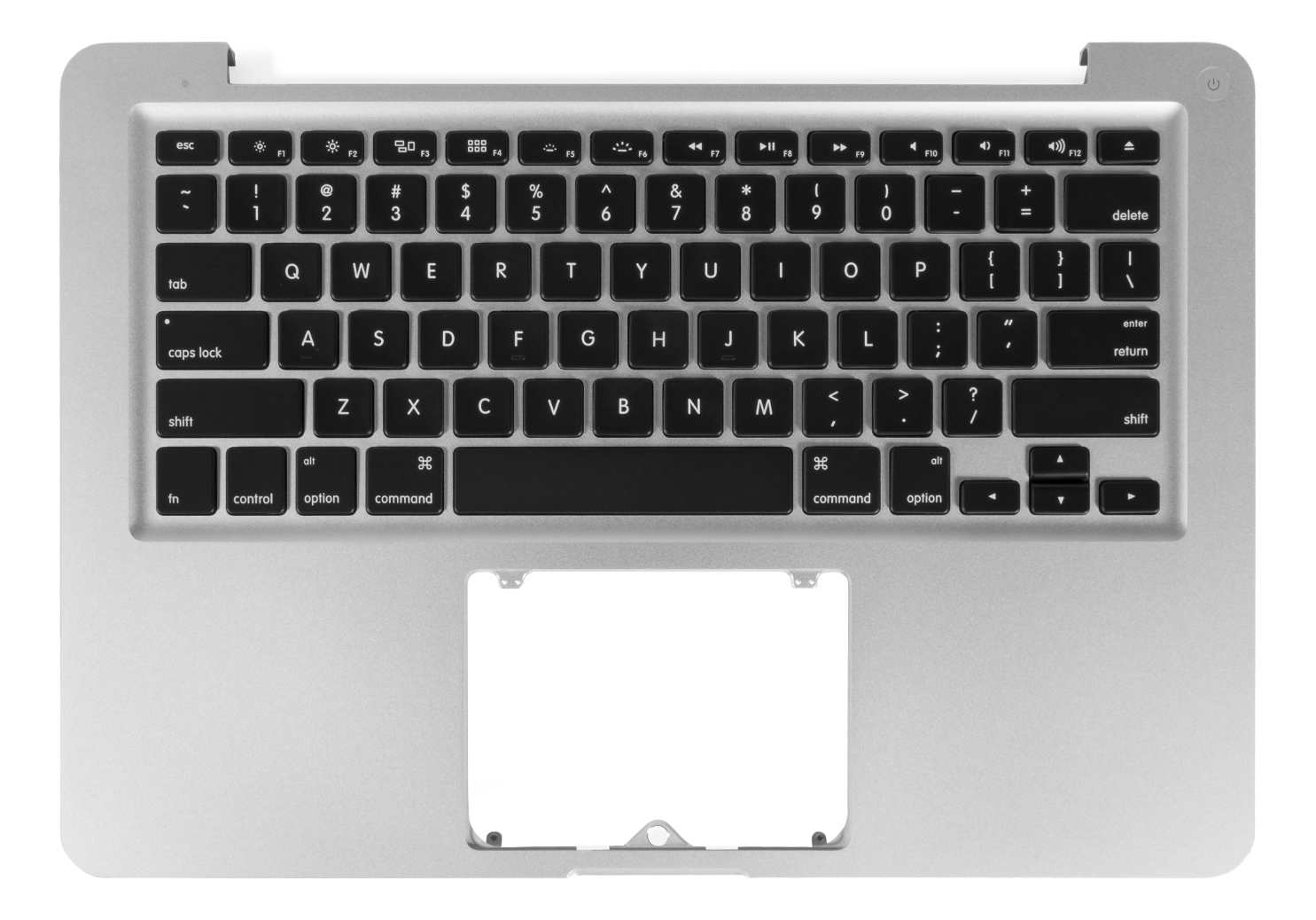

Top Case w/ Keyboard NO Trackpad
661-6595

Top Case w/ Keyboard NO Trackpad 661-6595 for MacBook Pro 13-inch Mid 2012

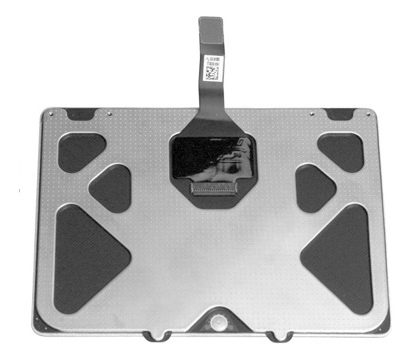

Trackpad w/ Flex Cable
922-9773

Trackpad w/ Flex Cable 922-9773 for MacBook Pro 13-inch Mid 2012

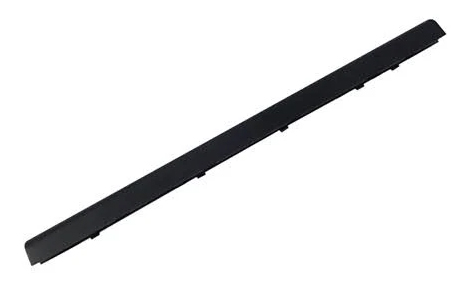

Display Clutch Cover Barrel
923-0153

Display Clutch Cover Barrel 923-0153 for MacBook Pro 13-inch Mid 2012

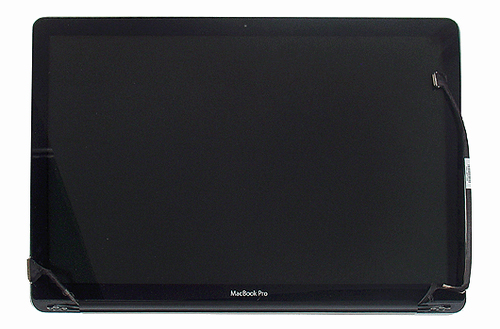

Display Assembly, Complete
661-6594

Display Assembly, Complete 661-6594 for MacBook Pro 13-inch Mid 2012

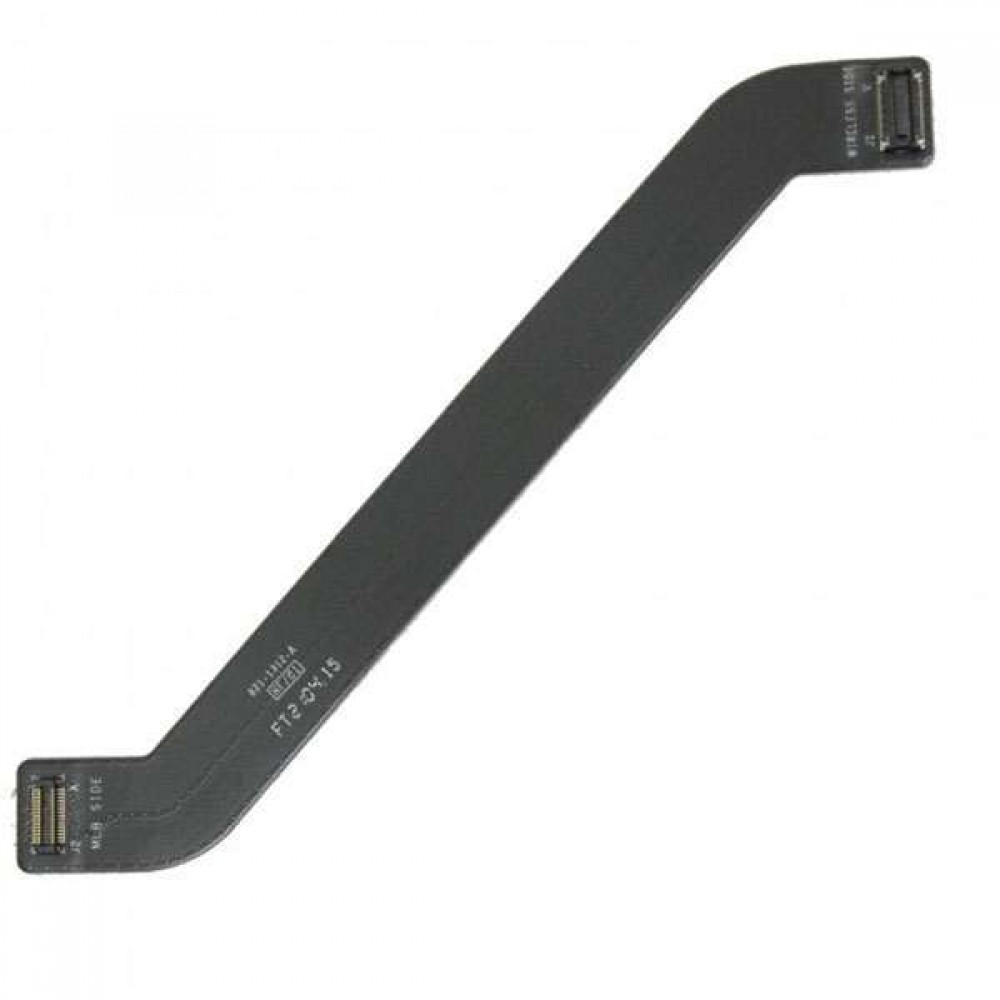

Airport/Bluetooth (Wireless) Card Flex Cable 922-9780 for MacBook Pro 13-inch Mid 2012
Airport/Bluetooth (Wireless) Card Flex Cable
922-9780

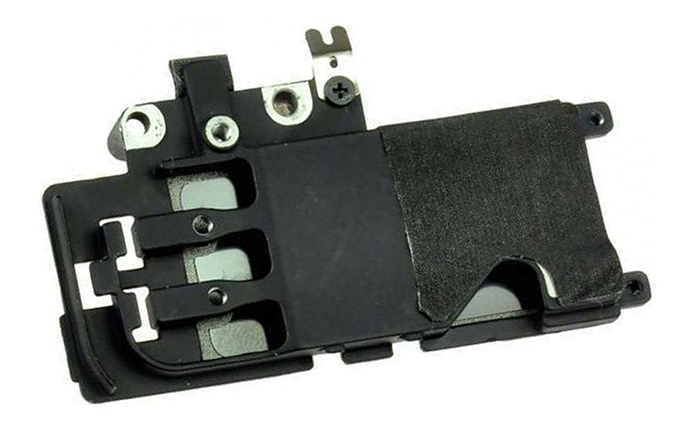

Airport/Bluetooth Carrier Kit 076-1381 for MacBook Pro 13-inch Mid 2012
Airport/Bluetooth Carrier Kit
076-1381

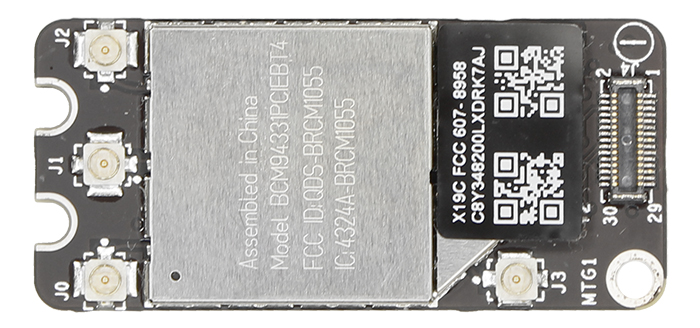

AirPort / Bluetooth (Wireless) Card 661-6510 for MacBook Pro 13-inch Mid 2012
AirPort / Bluetooth (Wireless) Card
661-6510

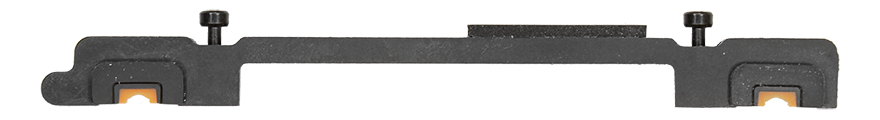

Hard Drive Rear Bracket 922-9065 for MacBook Pro 13-inch Mid 2012
Hard Drive Rear Bracket
922-9065

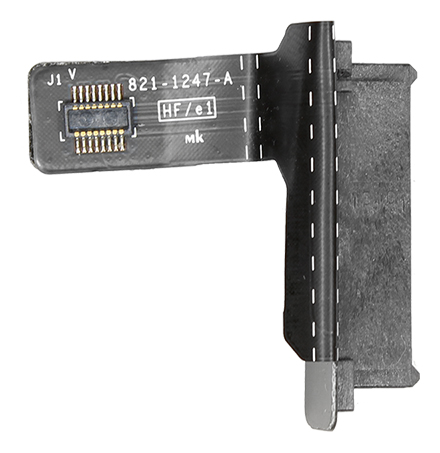

Optical Drive (SuperDrive) Flex Cable 922-9770 for MacBook Pro 13-inch Mid 2012
Optical Drive (SuperDrive) Flex Cable
922-9770

Optical Drive Center Bracket w/ Screws 922-8637 for MacBook Pro 13-inch Mid 2012
Optical Drive Center Bracket w/ Screws
922-8637

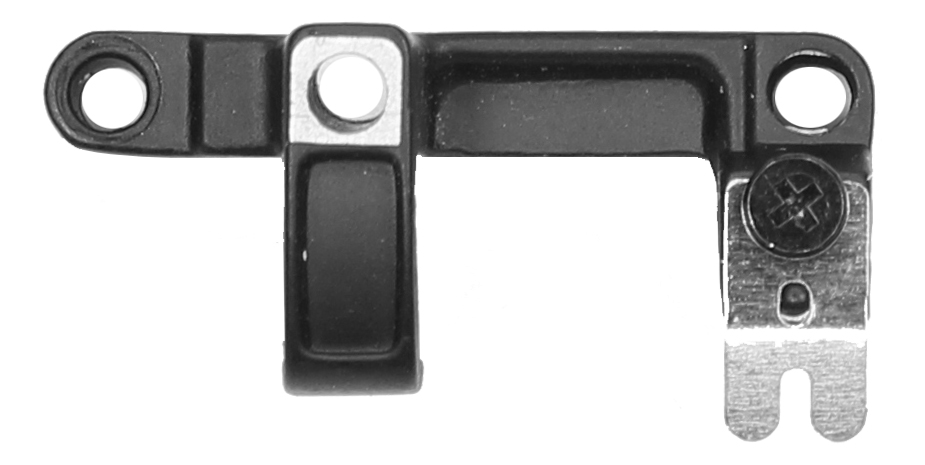

LVDS Cable Guide 922-9866 for MacBook Pro 13-inch Mid 2012
LVDS Cable Guide
922-9866

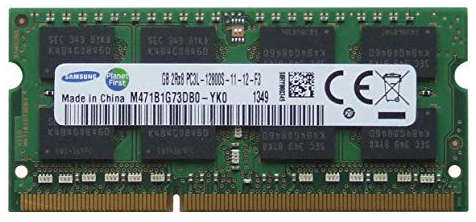

Memory SDRAM DDR3 1600MHz 661-6636, 661-6637 for MacBook Pro 13-inch Mid 2012
Memory SDRAM DDR3 1600MHz
661-6636, 661-6637

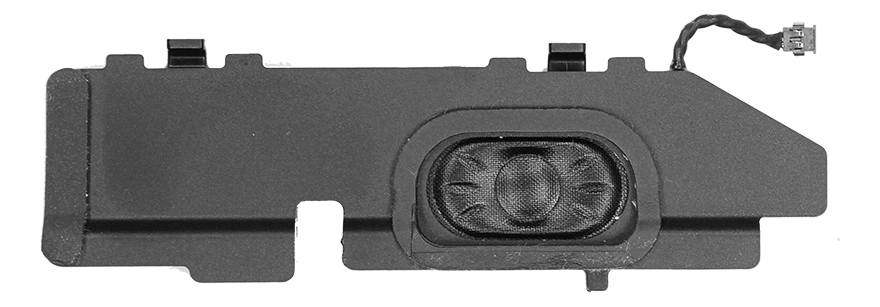

Left Speaker 922-9772 for MacBook Pro 13-inch Mid 2012
Left Speaker
922-9772

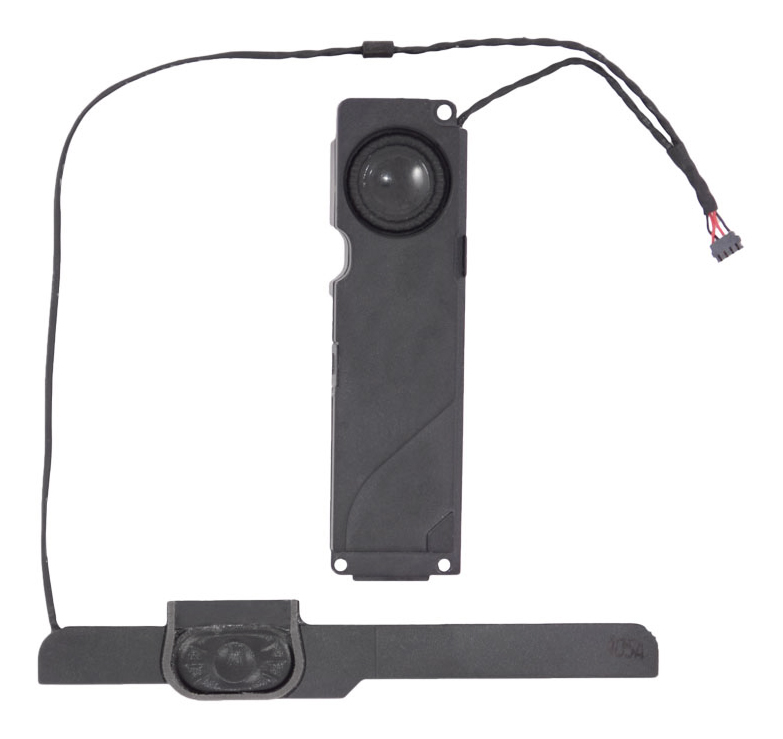

Center-Right Speaker 923-0106 for MacBook Pro 13-inch Mid 2012
Center-Right Speaker
923-0106

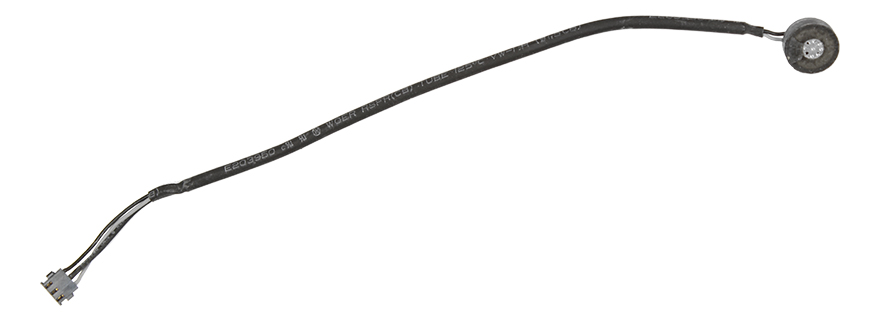

Microphone Cable 923-0107 for MacBook Pro 13-inch Mid 2012
Microphone Cable
923-0107

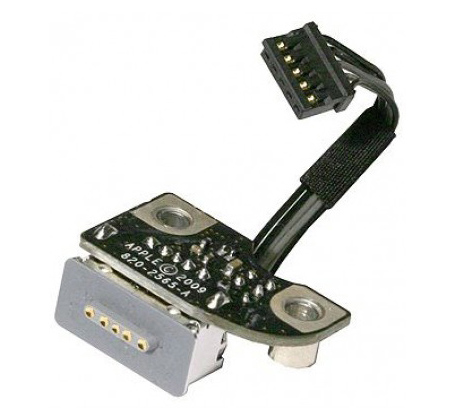

MagSafe Board w/ Cable 922-9307 for MacBook Pro 13-inch Mid 2012
MagSafe Board w/ Cable
922-9307

Center Bracket 923-0156 for MacBook Pro 13-inch Mid 2012
Center Bracket
923-0156

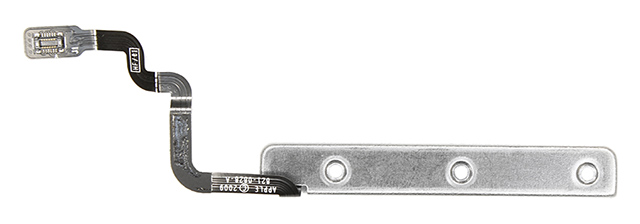

Sleep Sensor/Battery Indicator Light 922-9523 for MacBook Pro 13-inch Mid 2012
Sleep Sensor/Battery Indicator Light
922-9523
