Exploded View MacBook Pro Retina 13-inch Late 2012

MacBook Pro Retina 13-inch Late 2012 - Exploded View

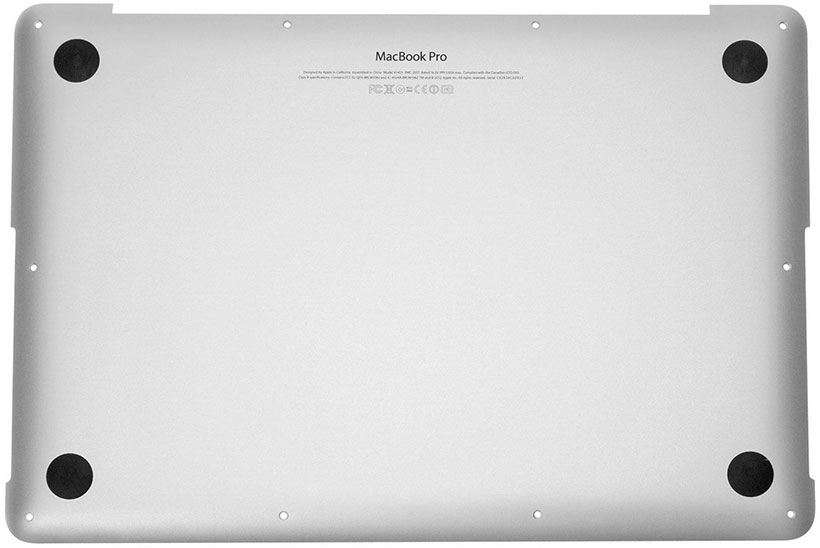

Bottom Case
923-0229

Bottom Case 923-0229 for MacBook Pro Retina 13-inch Late 2012
Solid State Drive Carrier w/ Flex Cable
923-0219

Solid State Drive Carrier w/ Flex Cable 923-0219 for MacBook Pro Retina 13-inch Late 2012
Speaker Set (Left and Right)
923-0224

Speaker Set (Left and Right) 923-0224 for MacBook Pro Retina 13-inch Late 2012
CPU Heatsink
923-0227

CPU Heatsink 923-0227 for MacBook Pro Retina 13-inch Late 2012
Fan Left
923-0221

Fan Left 923-0221 for MacBook Pro Retina 13-inch Late 2012
Fan Right
923-0220

Fan Right 923-0220 for MacBook Pro Retina 13-inch Late 2012
Logic Board
661-7006, 661-7007

Logic Board 661-7006, 661-7007 for MacBook Pro Retina 13-inch Late 2012
I/O Board, Right
661-7012

I/O Board, Right 661-7012 for MacBook Pro Retina 13-inch Late 2012
Top Case w/ Keyboard w/ Battery No Trackpad
661-7016

Top Case w/ Keyboard w/ Battery No Trackpad 661-7016 for MacBook Pro Retina 13-inch Late 2012
Display Assembly, Complete
661-7014, 923-0289

Display Assembly, Complete 661-7014, 923-0289 for MacBook Pro Retina 13-inch Late 2012
Trackpad w/ Flex Cable
923-0225

Trackpad w/ Flex Cable 923-0225 for MacBook Pro Retina 13-inch Late 2012
Right I/O Flex Cable 923-0223 for MacBook Pro Retina 13-inch Late 2012
Right I/O Flex Cable
923-0223

Solid State Drive (SSD) PCIe 661-7009, 661-7010, 661-7011, 661-7285 for MacBook Pro Retina 13-inch Late 2012
Solid State Drive (SSD) PCIe
661-7009, 661-7010, 661-7011, 661-7285

Fan Rubber Duct 923-0228 for MacBook Pro Retina 13-inch Late 2012
Fan Rubber Duct
923-0228

Wireless (Airport/Bluetooth) Card 661-7013 for MacBook Pro Retina 13-inch Late 2012
Wireless (Airport/Bluetooth) Card
661-7013

MagSafe 2 Board 923-0222 for MacBook Pro Retina 13-inch Late 2012
MagSafe 2 Board
923-0222

Audio Board w/ Flex Cable 923-0226 for MacBook Pro Retina 13-inch Late 2012
Audio Board w/ Flex Cable
923-0226

BMU Mylar Cover 923-0258 for MacBook Pro Retina 13-inch Late 2012
BMU Mylar Cover
923-0258

BMU Screw Cover / Cap 923-0257 for MacBook Pro Retina 13-inch Late 2012
BMU Screw Cover / Cap
923-0257

Interposer (Battery Contact Board) 661-7045 for MacBook Pro Retina 13-inch Late 2012
Interposer (Battery Contact Board)
661-7045

Hinge / Clutch Screws Cover, Left 923-0260 for MacBook Pro Retina 13-inch Late 2012
Hinge / Clutch Screws Cover, Left
923-0260

Hinge / Clutch Screws Cover, Right 923-0259 for MacBook Pro Retina 13-inch Late 2012
Hinge / Clutch Screws Cover, Right
923-0259

Display End Caps Kit (Left and Right) 076-1410 for MacBook Pro Retina 13-inch Late 2012
Display End Caps Kit (Left and Right)
076-1410
