Exploded View MacBook Pro Retina 13-inch Early 2013

MacBook Pro Retina 13-inch Early 2013 - Exploded View

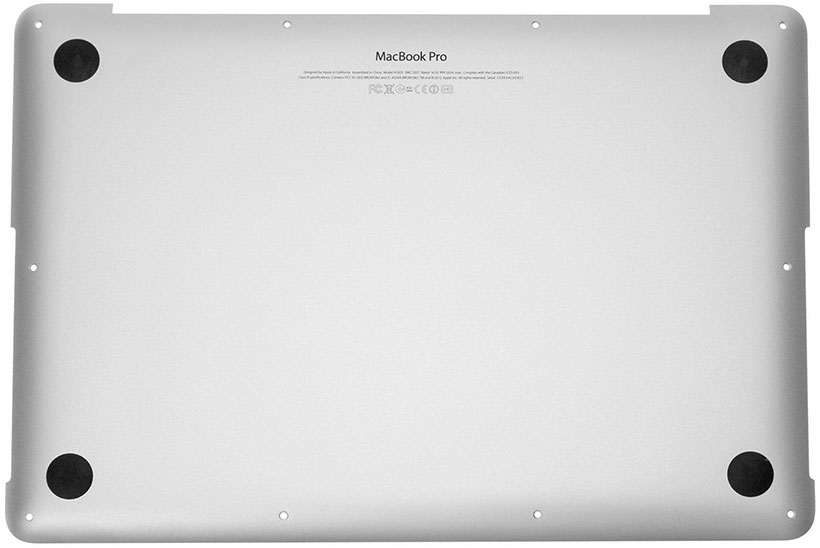

Bottom Case
923-0410

Bottom Case 923-0410 for MacBook Pro Retina 13-inch Early 2013

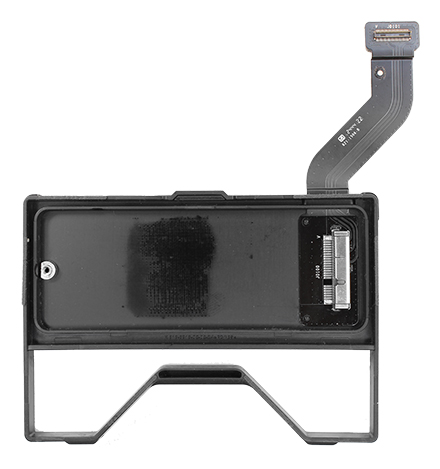

Solid State Drive Carrier w/ Flex Cable
923-0219

Solid State Drive Carrier w/ Flex Cable 923-0219 for MacBook Pro Retina 13-inch Early 2013

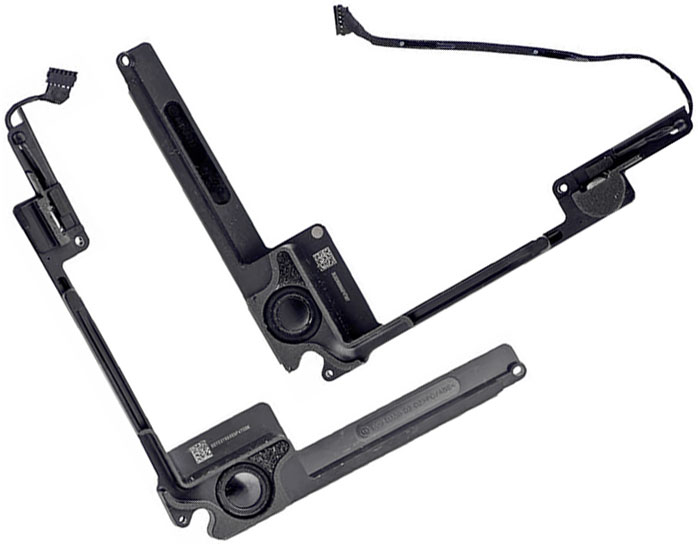

Speaker Set (Left and Right)
923-0224

Speaker Set (Left and Right) 923-0224 for MacBook Pro Retina 13-inch Early 2013

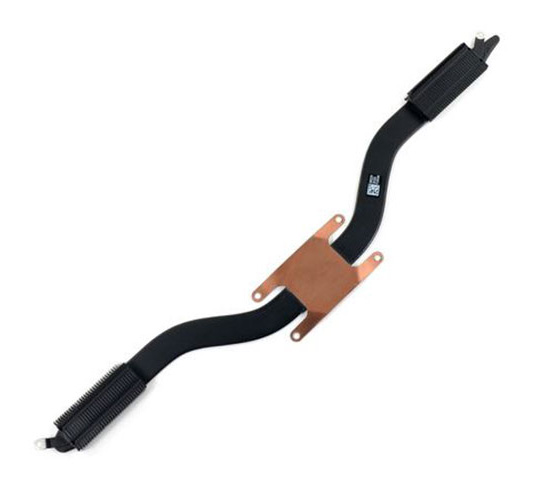

CPU Heatsink
923-0227

CPU Heatsink 923-0227 for MacBook Pro Retina 13-inch Early 2013

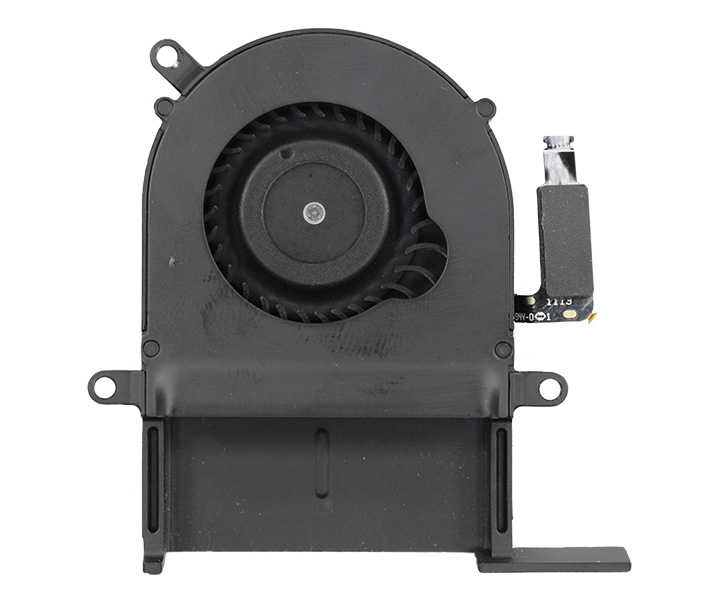

Fan Left
923-0221

Fan Left 923-0221 for MacBook Pro Retina 13-inch Early 2013

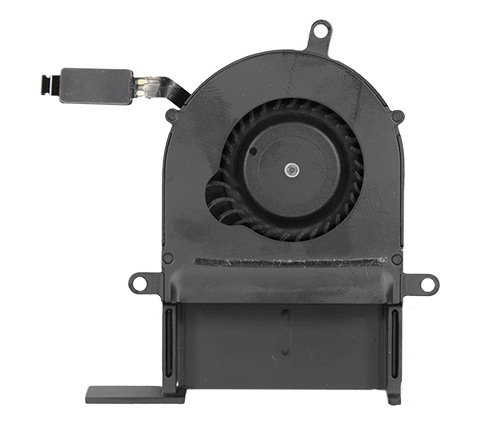

Fan Right
923-0220

Fan Right 923-0220 for MacBook Pro Retina 13-inch Early 2013

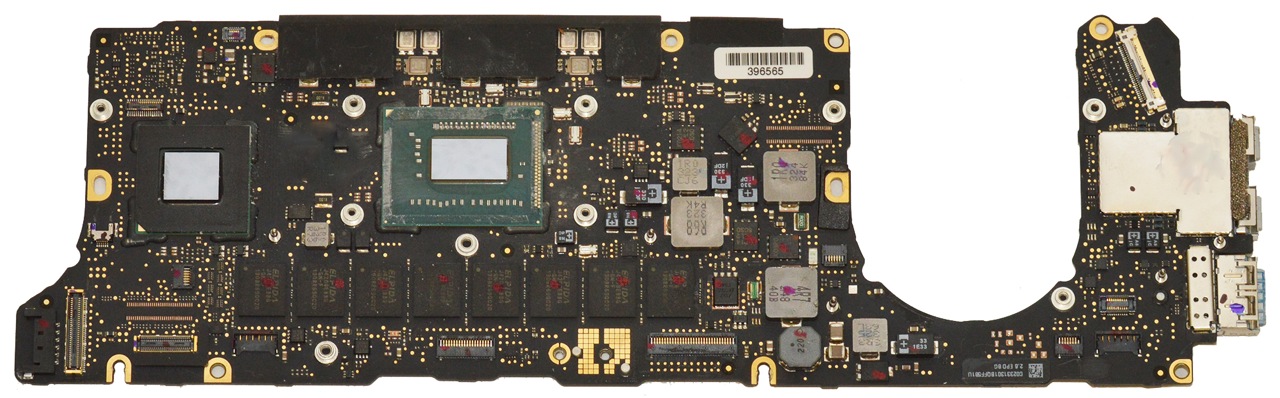

Logic Board
661-7346, 661-7347

Logic Board 661-7346, 661-7347 for MacBook Pro Retina 13-inch Early 2013

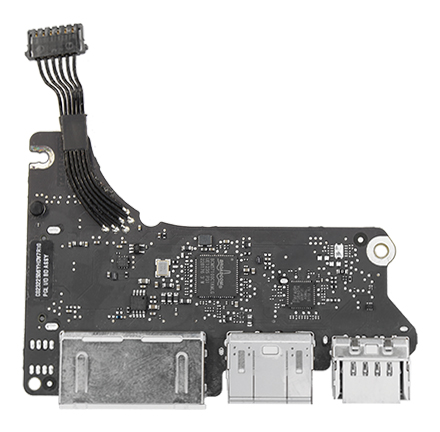

I/O Board, Right
661-7012

I/O Board, Right 661-7012 for MacBook Pro Retina 13-inch Early 2013

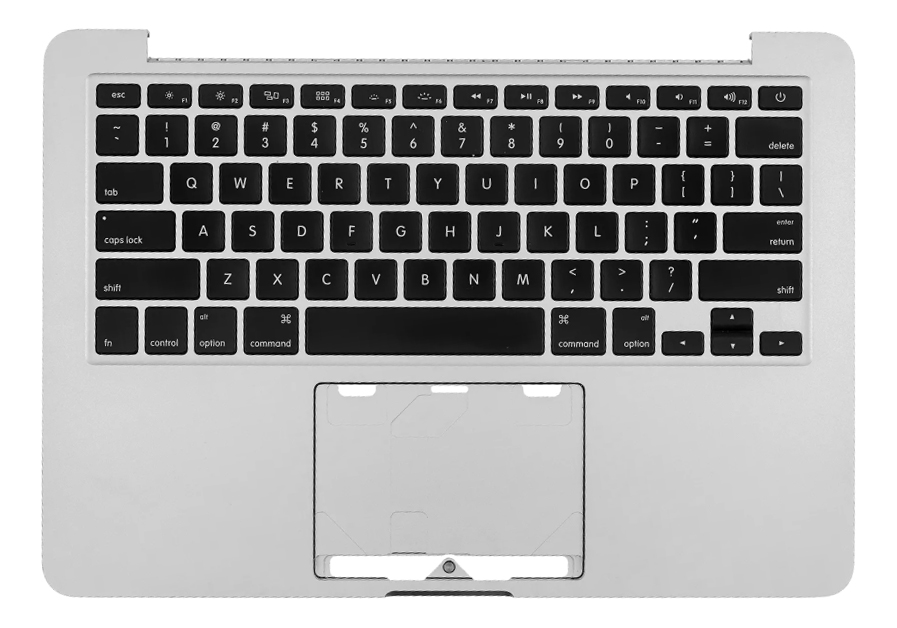

Top Case w/ Keyboard w/ Battery No Trackpad
661-7016

Top Case w/ Keyboard w/ Battery No Trackpad 661-7016 for MacBook Pro Retina 13-inch Early 2013

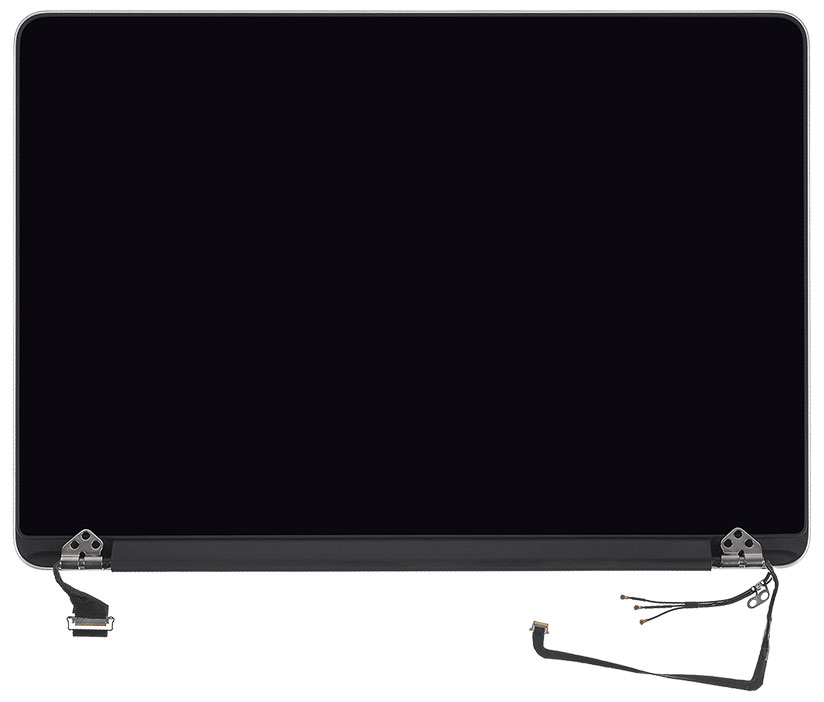

Display Assembly, Complete
661-7014, 923-0289

Display Assembly, Complete 661-7014, 923-0289 for MacBook Pro Retina 13-inch Early 2013

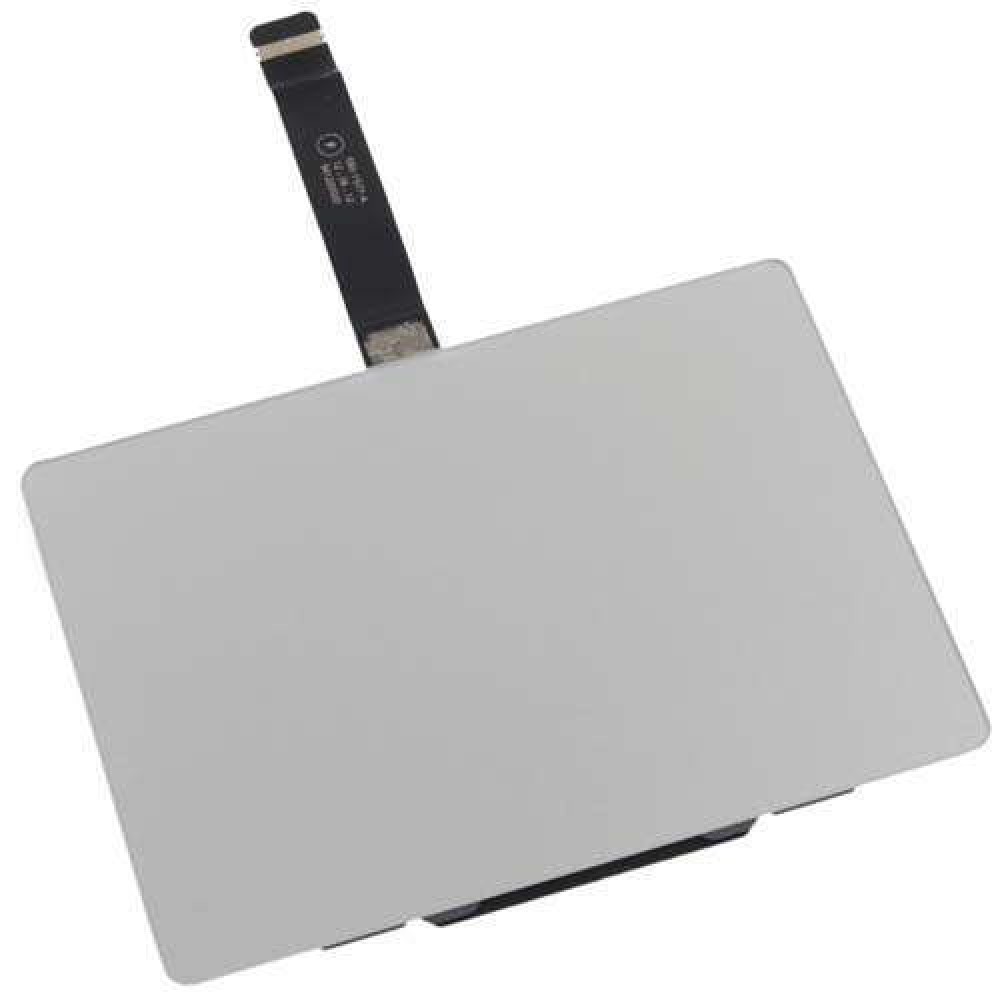

Trackpad w/ Flex Cable
923-0225

Trackpad w/ Flex Cable 923-0225 for MacBook Pro Retina 13-inch Early 2013

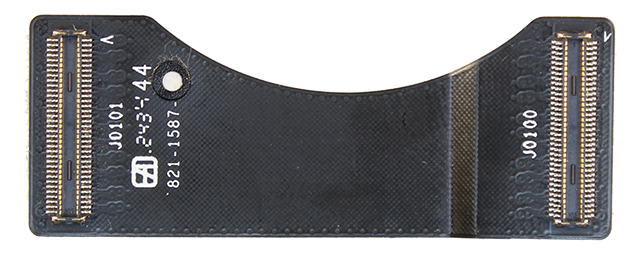

Right I/O Flex Cable 923-0223 for MacBook Pro Retina 13-inch Early 2013
Right I/O Flex Cable
923-0223

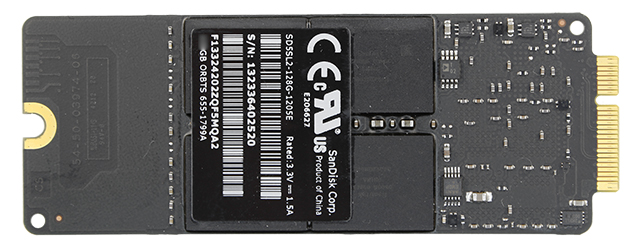

Solid State Drive (SSD) PCIe 661-7009, 661-7010, 661-7011, 661-7285 for MacBook Pro Retina 13-inch Early 2013
Solid State Drive (SSD) PCIe
661-7009, 661-7010, 661-7011, 661-7285

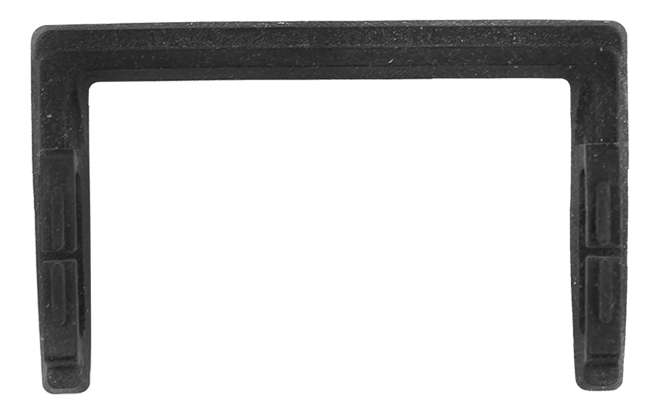

Fan Rubber Duct 923-0228 for MacBook Pro Retina 13-inch Early 2013
Fan Rubber Duct
923-0228

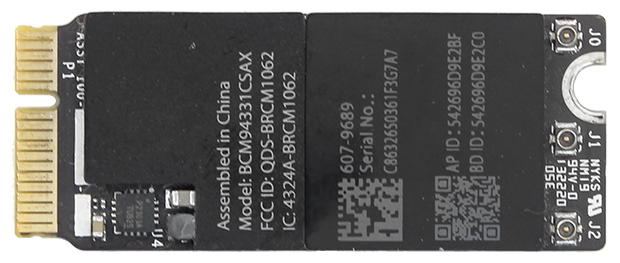

Wireless (Airport/Bluetooth) Card 661-7013 for MacBook Pro Retina 13-inch Early 2013
Wireless (Airport/Bluetooth) Card
661-7013

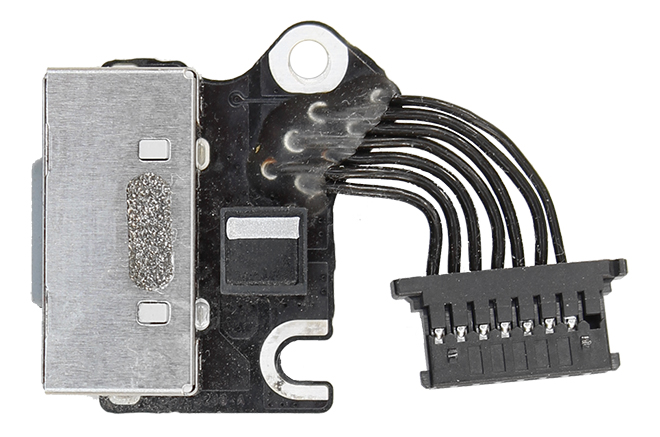

MagSafe 2 Board 923-0222 for MacBook Pro Retina 13-inch Early 2013
MagSafe 2 Board
923-0222

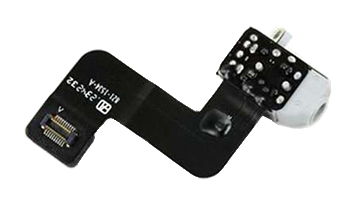

Audio Board w/ Flex Cable 923-0226 for MacBook Pro Retina 13-inch Early 2013
Audio Board w/ Flex Cable
923-0226

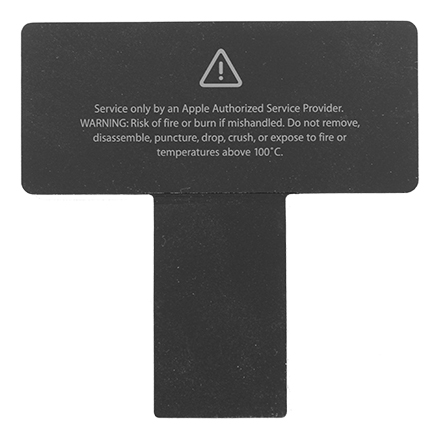

BMU Mylar Cover 923-0258 for MacBook Pro Retina 13-inch Early 2013
BMU Mylar Cover
923-0258

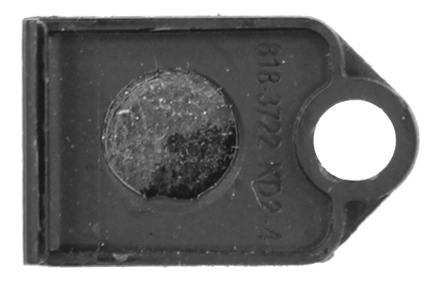

BMU Screw Cover / Cap 923-0257 for MacBook Pro Retina 13-inch Early 2013
BMU Screw Cover / Cap
923-0257

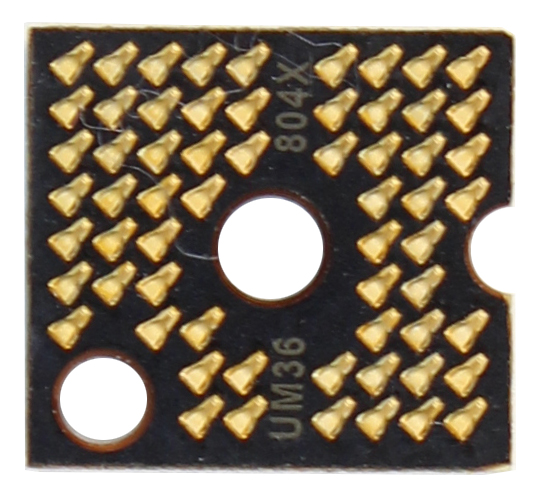

Interposer (Battery Contact Board) 661-7045 for MacBook Pro Retina 13-inch Early 2013
Interposer (Battery Contact Board)
661-7045

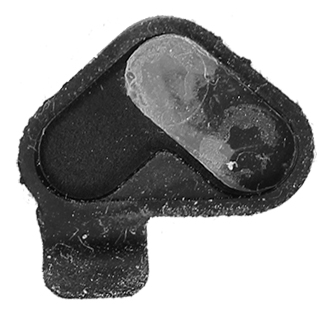

Hinge / Clutch Screws Cover, Left 923-0260 for MacBook Pro Retina 13-inch Early 2013
Hinge / Clutch Screws Cover, Left
923-0260

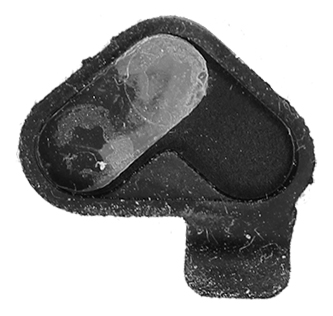

Hinge / Clutch Screws Cover, Right 923-0259 for MacBook Pro Retina 13-inch Early 2013
Hinge / Clutch Screws Cover, Right
923-0259

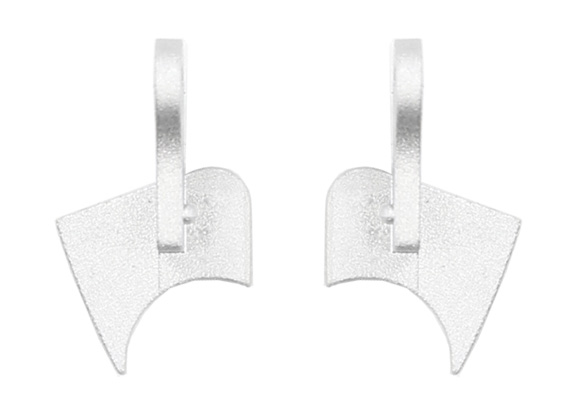

Display End Caps Kit (Left and Right) 076-1410 for MacBook Pro Retina 13-inch Early 2013
Display End Caps Kit (Left and Right)
076-1410
