Exploded View MacBook Pro Retina 13-inch Late 2013

MacBook Pro Retina 13-inch Late 2013 - Exploded View



Bottom Case
923-0561

Bottom Case 923-0561 for MacBook Pro Retina 13-inch Late 2013
Speaker Set (Left and Right)
923-0557

Speaker Set (Left and Right) 923-0557 for MacBook Pro Retina 13-inch Late 2013
CPU Cooling Fan
076-1450

CPU Cooling Fan 076-1450 for MacBook Pro Retina 13-inch Late 2013
CPU Heatsink
076-1449

CPU Heatsink 076-1449 for MacBook Pro Retina 13-inch Late 2013

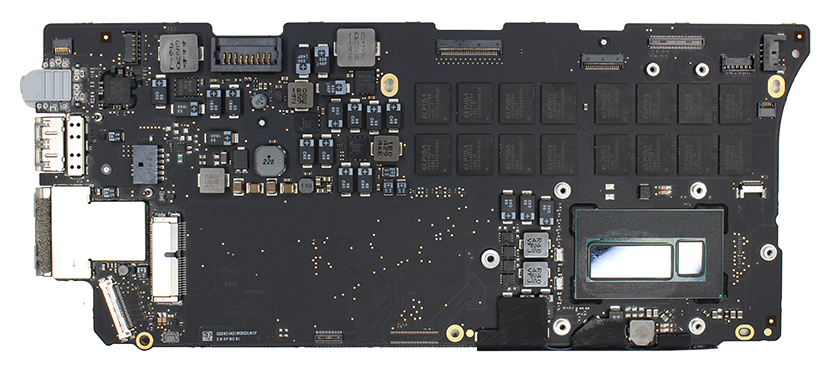

Logic Board
661-8144, 661-8145, 661-8146, 661-8147, 661-8148, 661-8149, 661-8150, 661-8151, 661-8152

Logic Board 661-8144, 661-8145, 661-8146, 661-8147, 661-8148, 661-8149, 661-8150, 661-8151, 661-8152 for MacBook Pro Retina 13-inch Late 2013
I/O Board, Right
661-8155

I/O Board, Right 661-8155 for MacBook Pro Retina 13-inch Late 2013
Top Case w/ Keyboard w/ Battery
661-8154

Top Case w/ Keyboard w/ Battery 661-8154 for MacBook Pro Retina 13-inch Late 2013
Display Assembly
661-8153, 923-0289

Display Assembly 661-8153, 923-0289 for MacBook Pro Retina 13-inch Late 2013

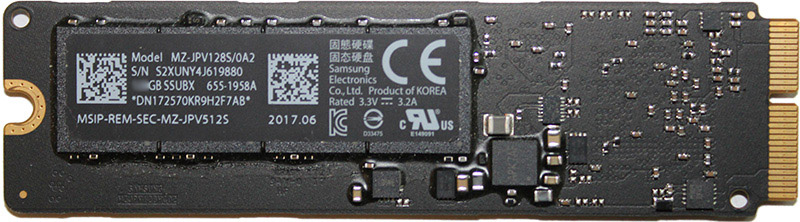

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for MacBook Pro Retina 13-inch Late 2013
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

Heatsink Rubber Duct 923-0642 for MacBook Pro Retina 13-inch Late 2013
Heatsink Rubber Duct
923-0642

Wireless (Airport/Bluetooth) Card 661-8143 for MacBook Pro Retina 13-inch Late 2013
Wireless (Airport/Bluetooth) Card
661-8143

I/O Board Flex Cable 923-0559 for MacBook Pro Retina 13-inch Late 2013
I/O Board Flex Cable
923-0559

I/O Board Flex Bracket 923-0558 for MacBook Pro Retina 13-inch Late 2013
I/O Board Flex Bracket
923-0558

MagSafe 2 Board 923-0560 for MacBook Pro Retina 13-inch Late 2013
MagSafe 2 Board
923-0560

Clutch Screw Cover, Left 923-0109 for MacBook Pro Retina 13-inch Late 2013
Clutch Screw Cover, Left
923-0109

Clutch Screw Cover, Right 923-0108 for MacBook Pro Retina 13-inch Late 2013
Clutch Screw Cover, Right
923-0108

Display End Caps Kit (Left and Right) 076-1410 for MacBook Pro Retina 13-inch Late 2013
Display End Caps Kit (Left and Right)
076-1410
