Exploded View MacBook Pro Retina 15-inch Late 2013

MacBook Pro Retina 15-inch Late 2013 - Exploded View

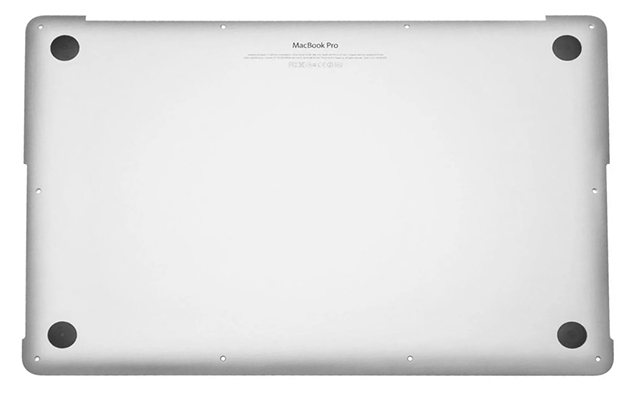

Bottom Case
923-0670, 923-0671

Bottom Case 923-0670, 923-0671 for MacBook Pro Retina 15-inch Late 2013
Speaker Set (Left and Right)
076-1401

Speaker Set (Left and Right) 076-1401 for MacBook Pro Retina 15-inch Late 2013

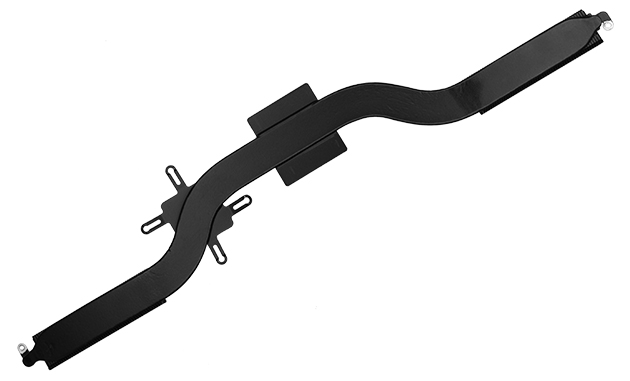

Heatsink (Discrete Graphics)
076-1452, 076-1453

Heatsink (Discrete Graphics) 076-1452, 076-1453 for MacBook Pro Retina 15-inch Late 2013
CPU Cooling Fan, Left
923-0669

CPU Cooling Fan, Left 923-0669 for MacBook Pro Retina 15-inch Late 2013
CPU Cooling Fan, Right
923-0668

CPU Cooling Fan, Right 923-0668 for MacBook Pro Retina 15-inch Late 2013

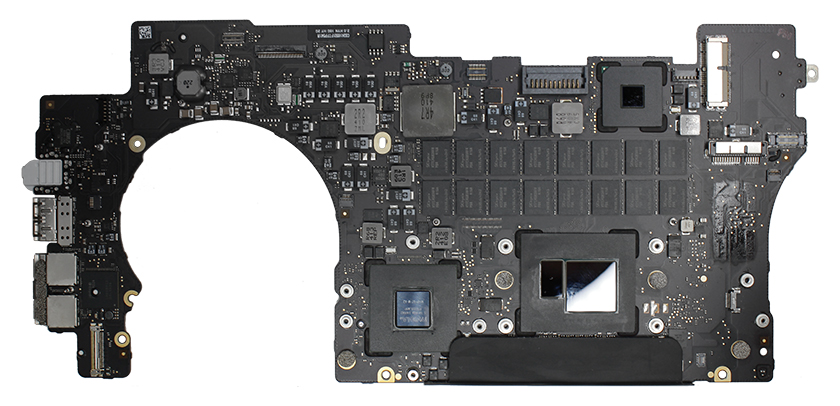

Logic Board
661-8302, 661-8303, 661-8304, 661-8305, 661-8306, 661-8307, 661-8308, 661-8309

Logic Board 661-8302, 661-8303, 661-8304, 661-8305, 661-8306, 661-8307, 661-8308, 661-8309 for MacBook Pro Retina 15-inch Late 2013
I/O Board Cable Guide
923-0674

I/O Board Cable Guide 923-0674 for MacBook Pro Retina 15-inch Late 2013
I/O USB SD Board
661-8312

I/O USB SD Board 661-8312 for MacBook Pro Retina 15-inch Late 2013
Top Case w/ Keyboard w/ Battery
661-8311

Top Case w/ Keyboard w/ Battery 661-8311 for MacBook Pro Retina 15-inch Late 2013
Display Assembly
661-8310

Display Assembly 661-8310 for MacBook Pro Retina 15-inch Late 2013
Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for MacBook Pro Retina 15-inch Late 2013
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

Fan Duct, Left 923-0673 for MacBook Pro Retina 15-inch Late 2013
Fan Duct, Left
923-0673

Fan Duct, Right 923-0672 for MacBook Pro Retina 15-inch Late 2013
Fan Duct, Right
923-0672

Wireless (Airport/Bluetooth) Card 661-8143 for MacBook Pro Retina 15-inch Late 2013
Wireless (Airport/Bluetooth) Card
661-8143

CPU / Heatsink Flexure / Spring (Discrete GPU) 923-00007 for MacBook Pro Retina 15-inch Late 2013
CPU / Heatsink Flexure / Spring (Discrete GPU)
923-00007

I/O Board Coax Cable 923-0666 for MacBook Pro Retina 15-inch Late 2013
I/O Board Coax Cable
923-0666

I/O Board Flex Cable w/ Foam 076-1454 for MacBook Pro Retina 15-inch Late 2013
I/O Board Flex Cable w/ Foam
076-1454

MagSafe 2 Board 923-0667 for MacBook Pro Retina 15-inch Late 2013
MagSafe 2 Board
923-0667

Clutch Screw Cover, Left 923-0109 for MacBook Pro Retina 15-inch Late 2013
Clutch Screw Cover, Left
923-0109

Clutch Screw Cover, Right 923-0108 for MacBook Pro Retina 15-inch Late 2013
Clutch Screw Cover, Right
923-0108

Display End Caps Kit (Left And Right) 076-1396 for MacBook Pro Retina 15-inch Late 2013
Display End Caps Kit (Left And Right)
076-1396

Microphone 923-0100 for MacBook Pro Retina 15-inch Late 2013
Microphone
923-0100
