Exploded View MacBook Pro Retina 15-inch Mid 2014

MacBook Pro Retina 15-inch Mid 2014 - Exploded View

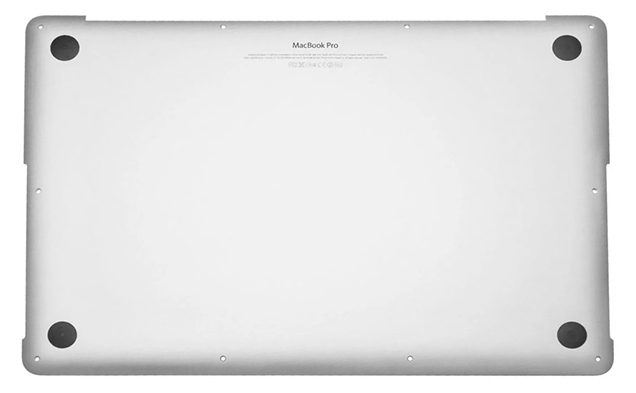

Bottom Case
923-0670, 923-0671

Bottom Case 923-0670, 923-0671 for MacBook Pro Retina 15-inch Mid 2014

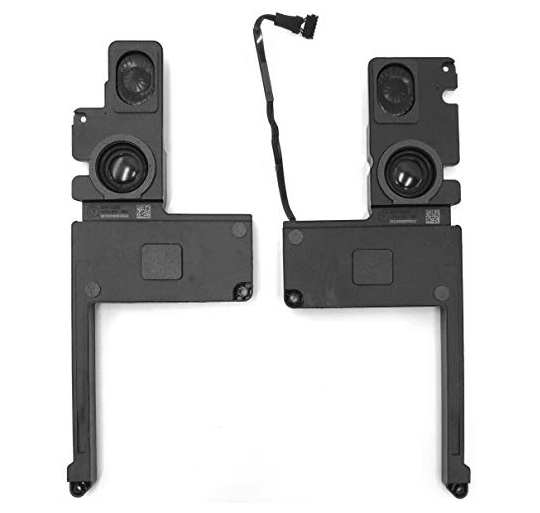

Speaker Set (Left and Right)
076-1401

Speaker Set (Left and Right) 076-1401 for MacBook Pro Retina 15-inch Mid 2014

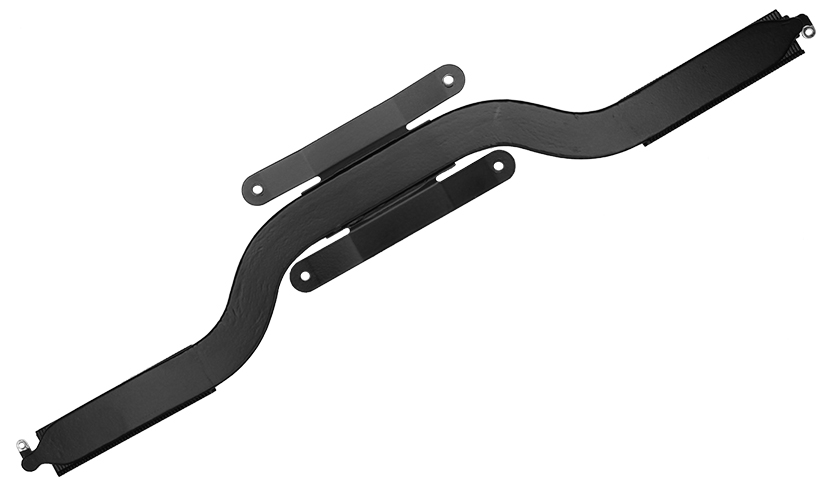

Heatsink (Integrated Graphics)
076-1452, 076-1453

Heatsink (Integrated Graphics) 076-1452, 076-1453 for MacBook Pro Retina 15-inch Mid 2014

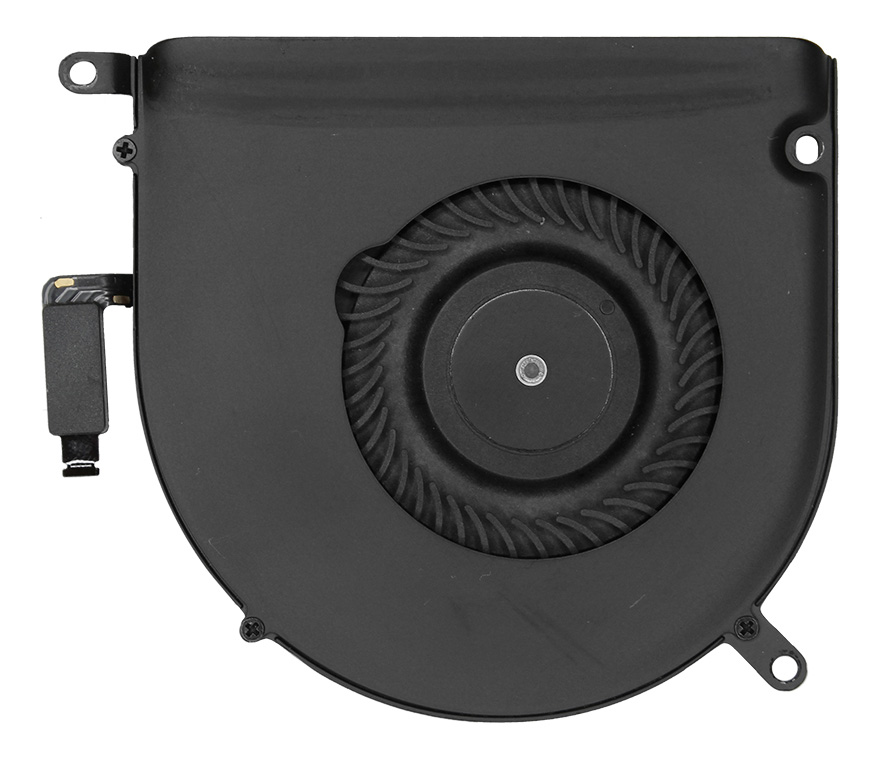

CPU Cooling Fan, Left
923-0669

CPU Cooling Fan, Left 923-0669 for MacBook Pro Retina 15-inch Mid 2014

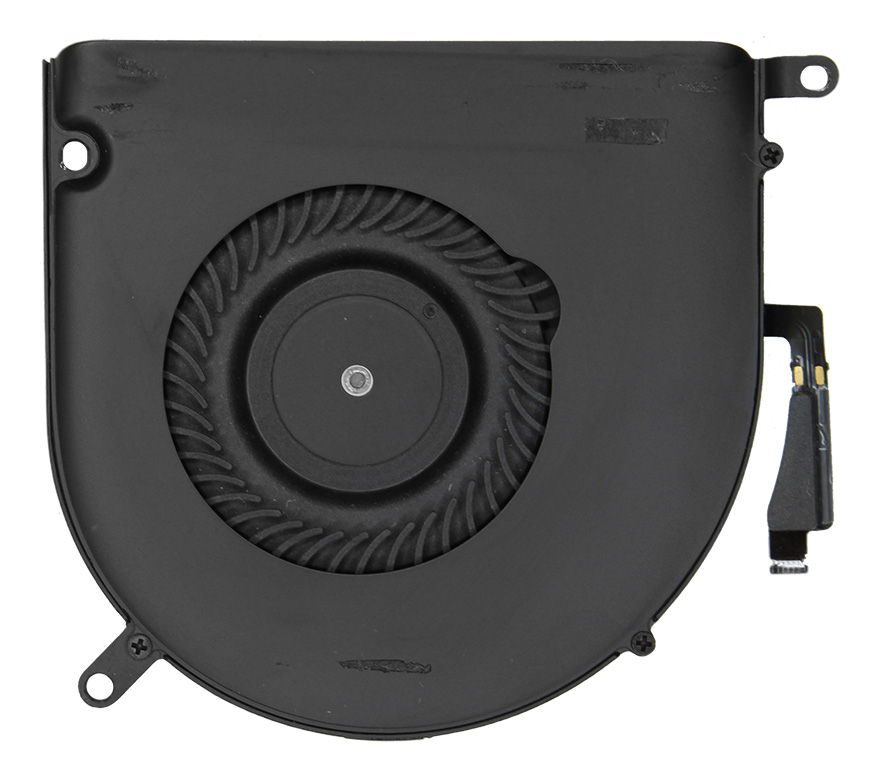

CPU Cooling Fan, Right
923-0668

CPU Cooling Fan, Right 923-0668 for MacBook Pro Retina 15-inch Mid 2014

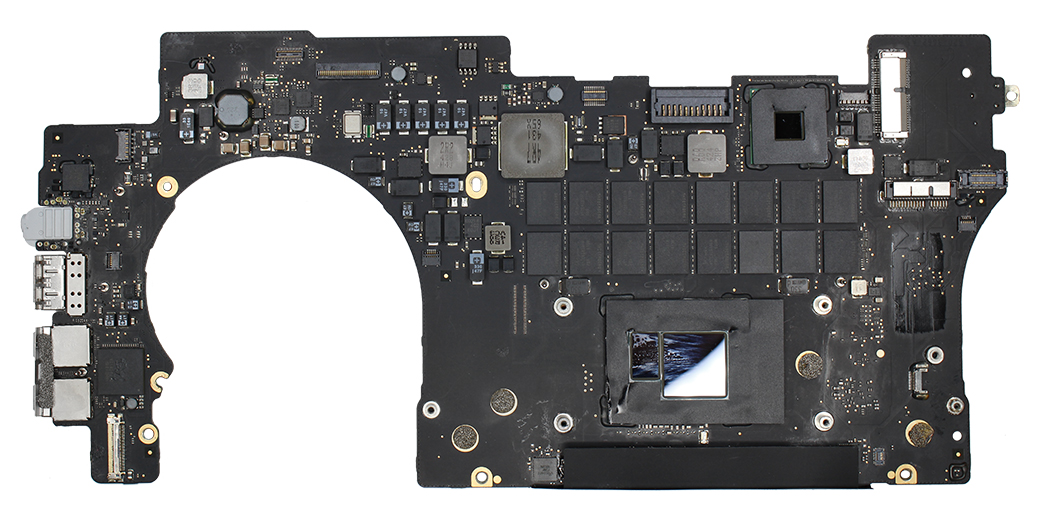

Logic Board
661-00676, 661-00677, 661-00678, 661-00679, 661-00680

Logic Board 661-00676, 661-00677, 661-00678, 661-00679, 661-00680 for MacBook Pro Retina 15-inch Mid 2014

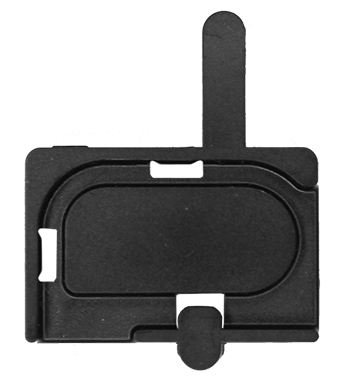

I/O Board Cable Guide
923-0674

I/O Board Cable Guide 923-0674 for MacBook Pro Retina 15-inch Mid 2014

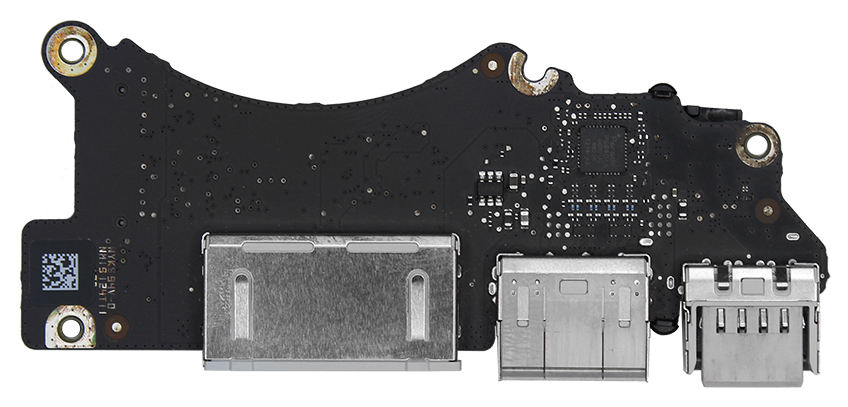

I/O USB SD Board
661-8312

I/O USB SD Board 661-8312 for MacBook Pro Retina 15-inch Mid 2014

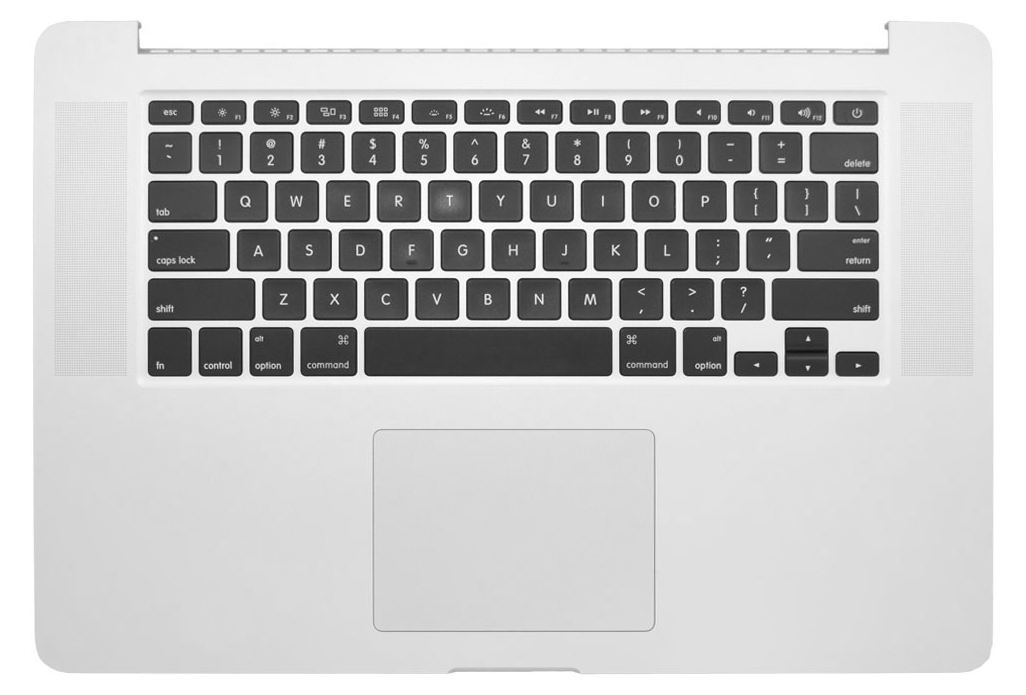

Top Case w/ Keyboard w/ Battery
661-8311

Top Case w/ Keyboard w/ Battery 661-8311 for MacBook Pro Retina 15-inch Mid 2014

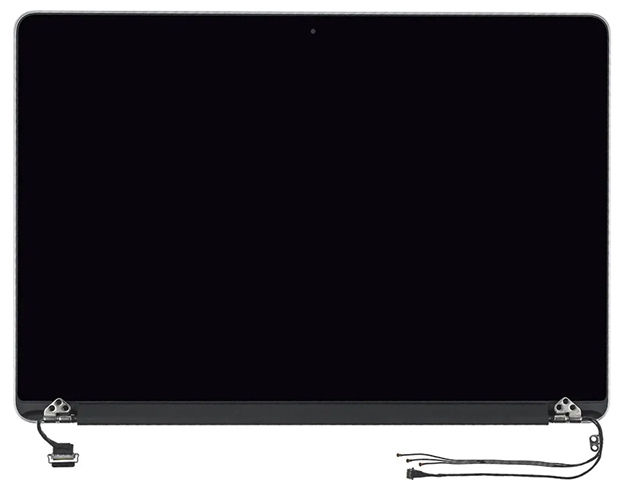

Display Assembly
661-8310

Display Assembly 661-8310 for MacBook Pro Retina 15-inch Mid 2014
Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for MacBook Pro Retina 15-inch Mid 2014
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

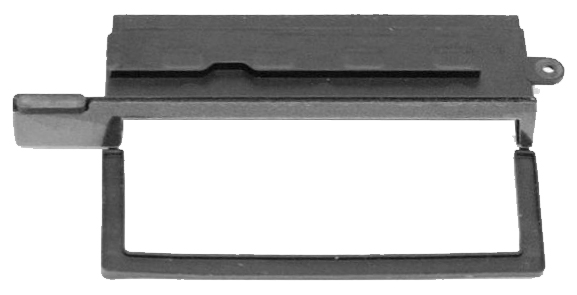

Fan Duct, Left 923-0673 for MacBook Pro Retina 15-inch Mid 2014
Fan Duct, Left
923-0673

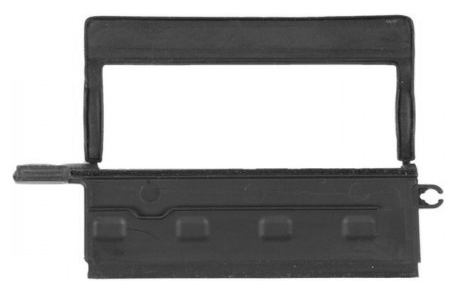

Fan Duct, Right 923-0672 for MacBook Pro Retina 15-inch Mid 2014
Fan Duct, Right
923-0672

Wireless (Airport/Bluetooth) Card 661-8143 for MacBook Pro Retina 15-inch Mid 2014
Wireless (Airport/Bluetooth) Card
661-8143

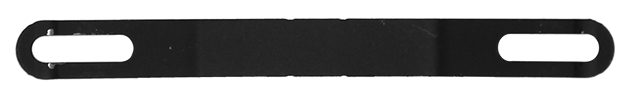

CPU / Heatsink Flexure / Spring (Discrete GPU) 923-00007 for MacBook Pro Retina 15-inch Mid 2014
CPU / Heatsink Flexure / Spring (Discrete GPU)
923-00007

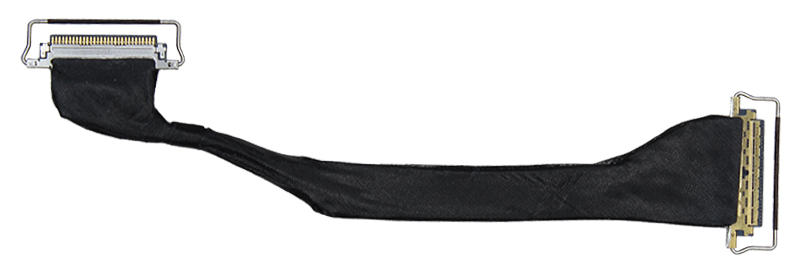

I/O Board Coax Cable 923-0666 for MacBook Pro Retina 15-inch Mid 2014
I/O Board Coax Cable
923-0666

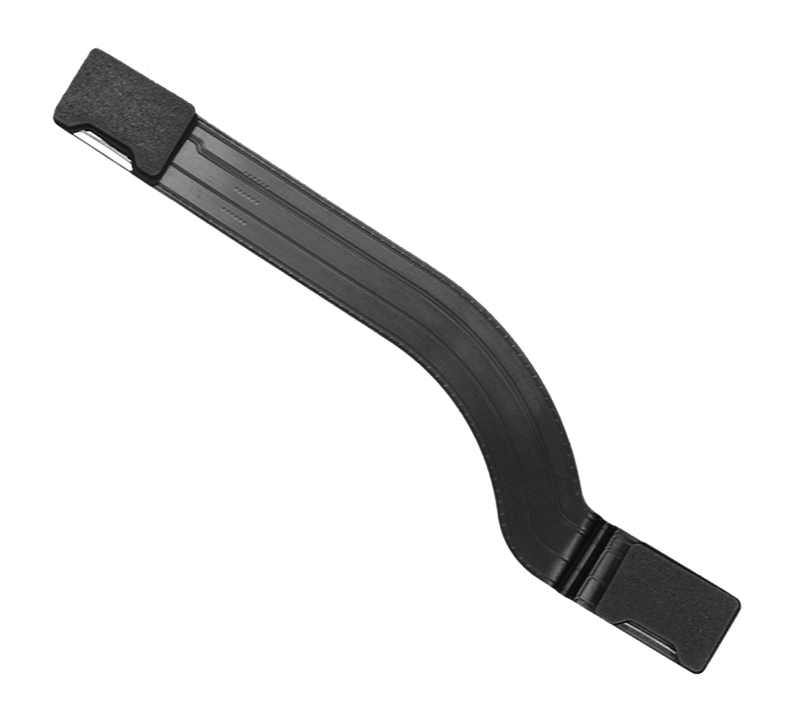

I/O Board Flex Cable w/ Foam 076-1454 for MacBook Pro Retina 15-inch Mid 2014
I/O Board Flex Cable w/ Foam
076-1454

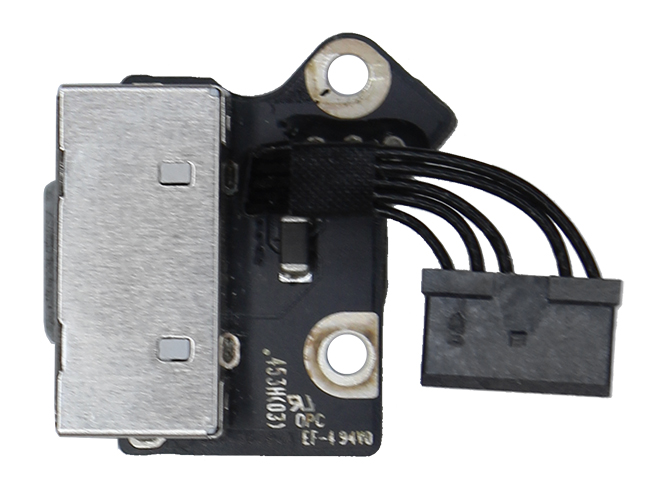

MagSafe 2 Board 923-0667 for MacBook Pro Retina 15-inch Mid 2014
MagSafe 2 Board
923-0667

Clutch Screw Cover, Left 923-0109 for MacBook Pro Retina 15-inch Mid 2014
Clutch Screw Cover, Left
923-0109

Clutch Screw Cover, Right 923-0108 for MacBook Pro Retina 15-inch Mid 2014
Clutch Screw Cover, Right
923-0108

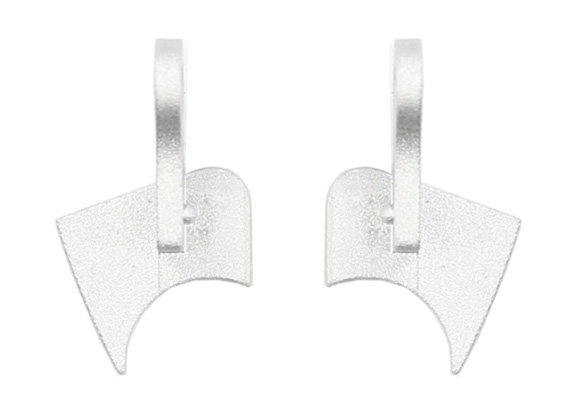

Display End Caps Kit  (Left And Right) 076-1396 for MacBook Pro Retina 15-inch Mid 2014
Display End Caps Kit (Left And Right)
076-1396

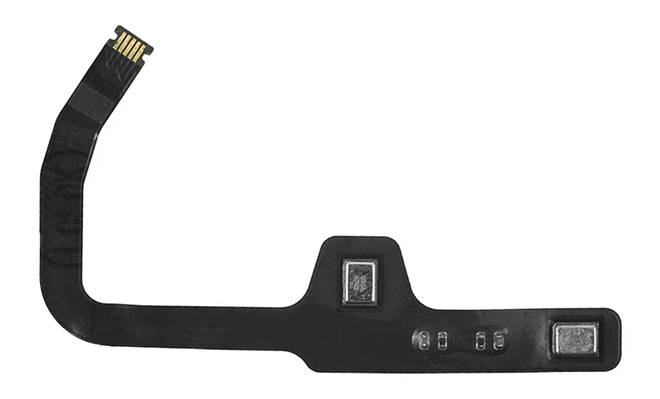

Microphone 923-0100 for MacBook Pro Retina 15-inch Mid 2014
Microphone
923-0100
