Exploded View MacBook Pro Retina 13-inch Early 2015

MacBook Pro Retina 13-inch Early 2015 - Exploded View

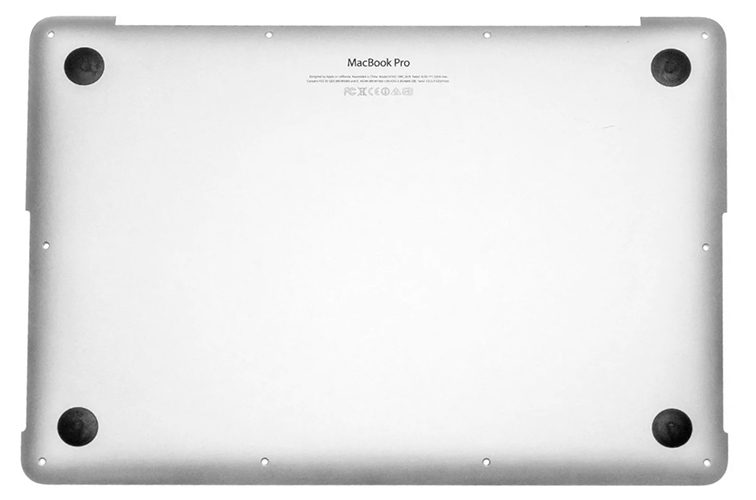

Bottom Case
923-00503

Bottom Case 923-00503 for MacBook Pro Retina 13-inch Early 2015

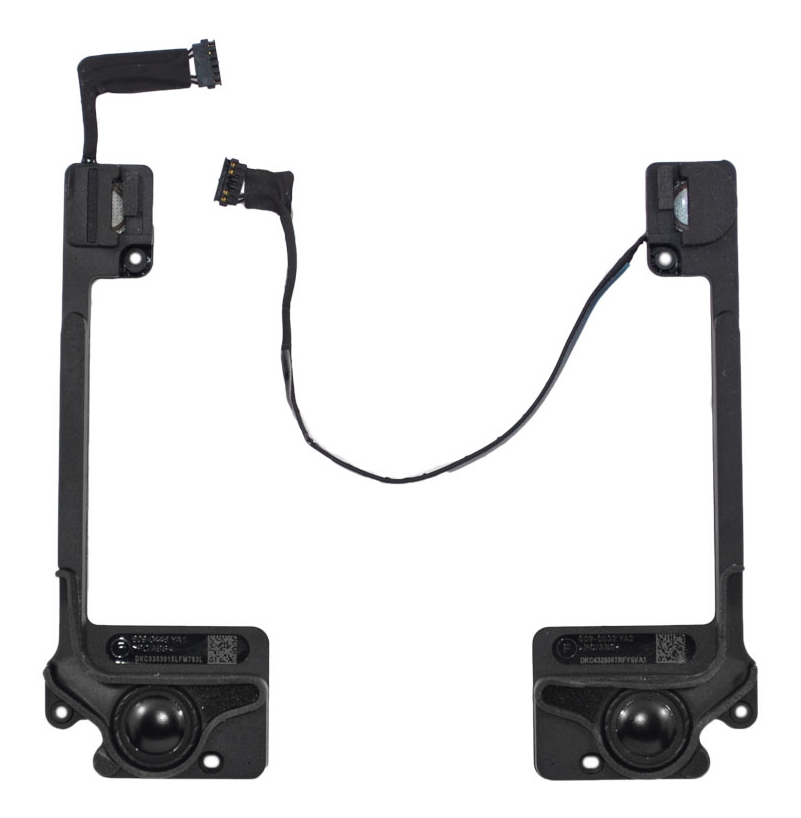

Speaker Set (Left and Right)
923-0557

Speaker Set (Left and Right) 923-0557 for MacBook Pro Retina 13-inch Early 2015

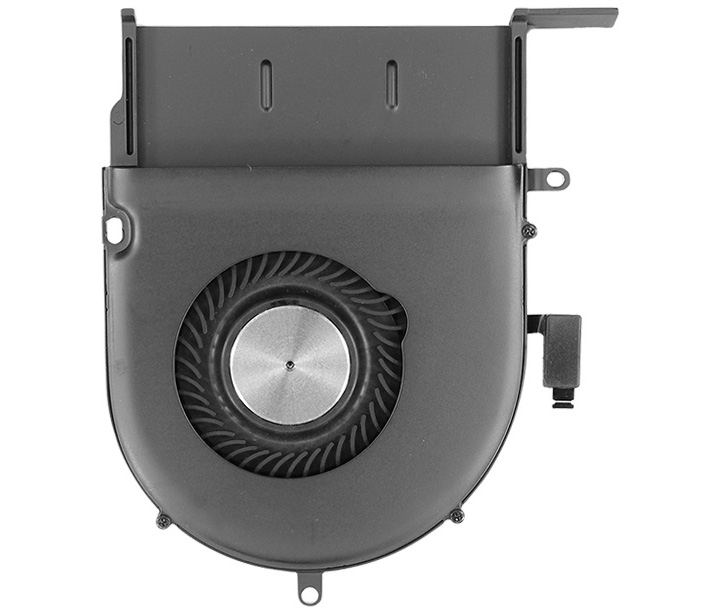

CPU Cooling Fan
076-1450

CPU Cooling Fan 076-1450 for MacBook Pro Retina 13-inch Early 2015

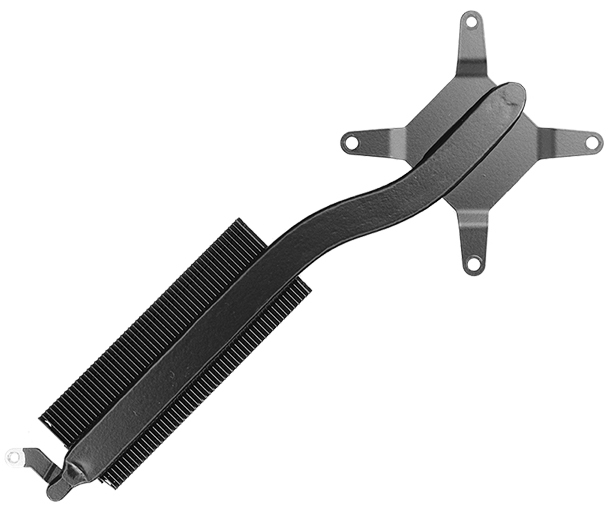

CPU Heatsink
076-1449

CPU Heatsink 076-1449 for MacBook Pro Retina 13-inch Early 2015

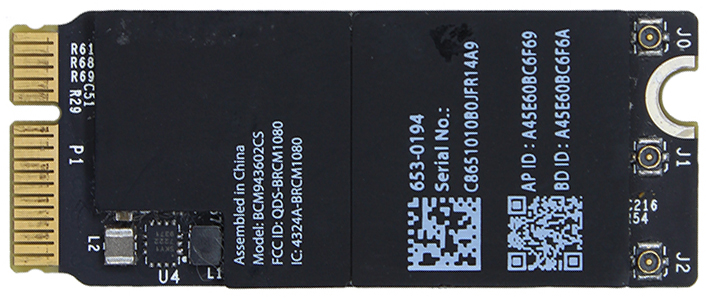

Wireless Card
661-02363

Wireless Card 661-02363 for MacBook Pro Retina 13-inch Early 2015

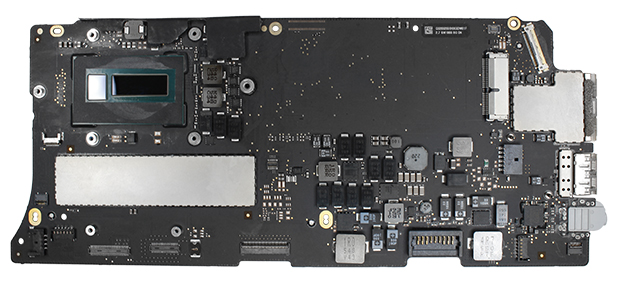

Logic Board
661-02354, 661-02355, 661-02356, 661-02357, 661-02358, 661-02359

Logic Board 661-02354, 661-02355, 661-02356, 661-02357, 661-02358, 661-02359 for MacBook Pro Retina 13-inch Early 2015

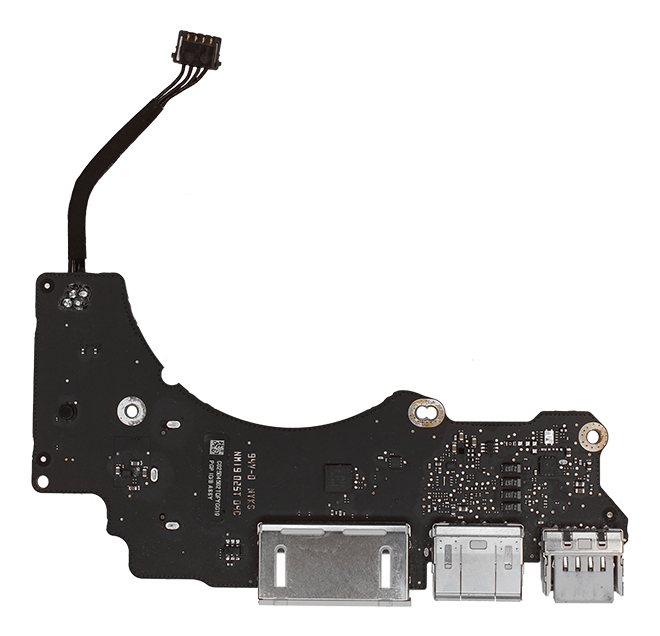

I/O Board
661-02457

I/O Board 661-02457 for MacBook Pro Retina 13-inch Early 2015

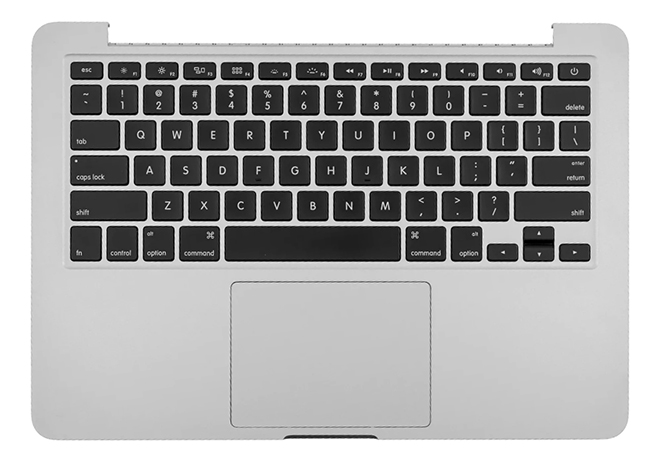

Top Case w/ Keyboard w/ Battery w/ Trackpad
661-02361

Top Case w/ Keyboard w/ Battery w/ Trackpad 661-02361 for MacBook Pro Retina 13-inch Early 2015
Display Assembly
661-02360

Display Assembly 661-02360 for MacBook Pro Retina 13-inch Early 2015

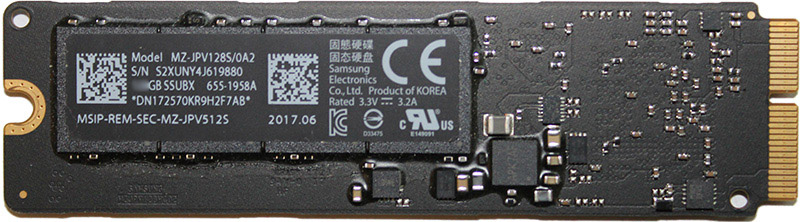

Solid State Drive (SSD) PCIe 661-03525, 661-7456, 661-7459, 661-7462, 661-7540 for MacBook Pro Retina 13-inch Early 2015
Solid State Drive (SSD) PCIe
661-03525, 661-7456, 661-7459, 661-7462, 661-7540

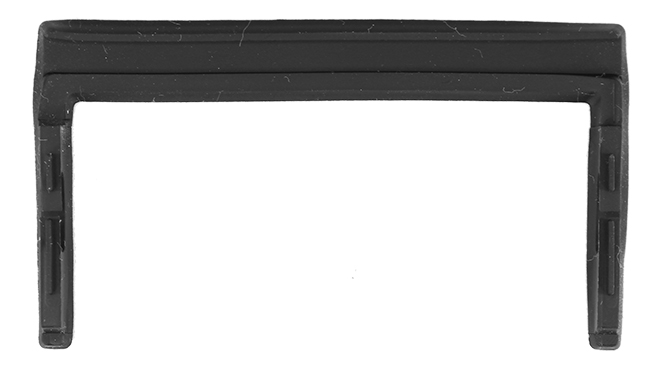

Heatsink Rubber Duct 923-0642 for MacBook Pro Retina 13-inch Early 2015
Heatsink Rubber Duct
923-0642

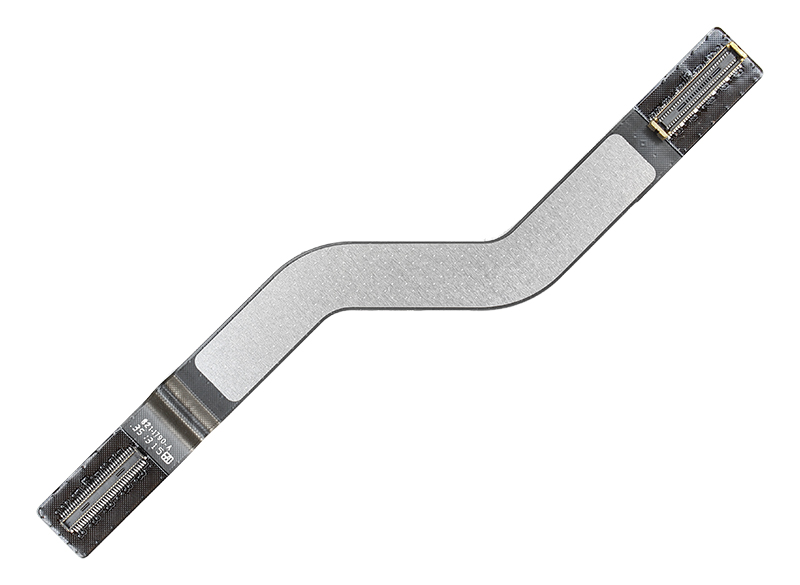

I/O Board Flex Cable 923-0559 for MacBook Pro Retina 13-inch Early 2015
I/O Board Flex Cable
923-0559

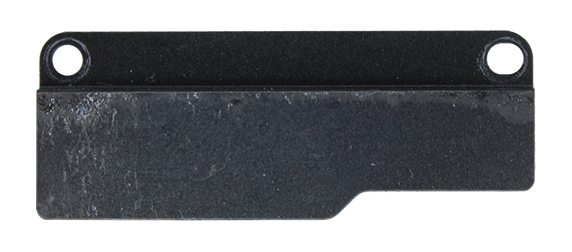

I/O Flex Cable Bracket, Left 923-00515, 923-0558 for MacBook Pro Retina 13-inch Early 2015
I/O Flex Cable Bracket, Left
923-00515, 923-0558

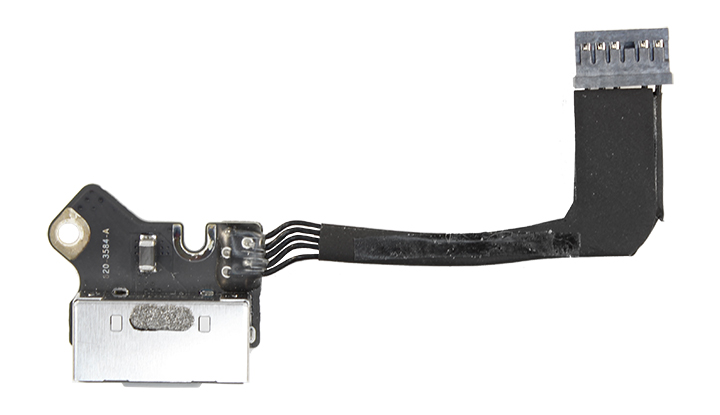

MagSafe 2 Board 923-0560 for MacBook Pro Retina 13-inch Early 2015
MagSafe 2 Board
923-0560

Clutch Screw Cover, Left 923-0109 for MacBook Pro Retina 13-inch Early 2015
Clutch Screw Cover, Left
923-0109

Clutch Screw Cover, Right 923-0108 for MacBook Pro Retina 13-inch Early 2015
Clutch Screw Cover, Right
923-0108

Display End Caps Kit (Left and Right) 076-1410 for MacBook Pro Retina 13-inch Early 2015
Display End Caps Kit (Left and Right)
076-1410

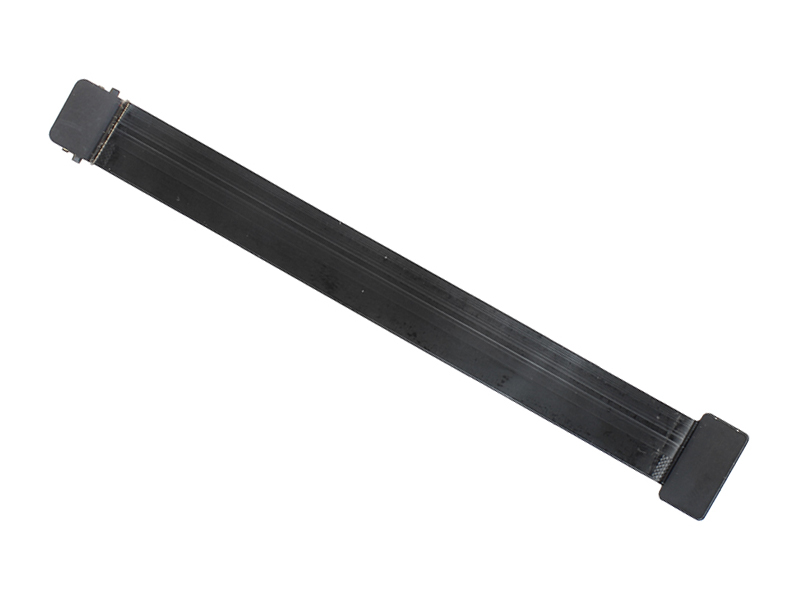

Trackpad Flex Cable 923-00518 for MacBook Pro Retina 13-inch Early 2015
Trackpad Flex Cable
923-00518
