Exploded View MacBook Pro 15-inch 2016

MacBook Pro 15-inch 2016 - Exploded View



Bottom Case
923-01456, 923-01457

Bottom Case 923-01456, 923-01457 for MacBook Pro 15-inch 2016

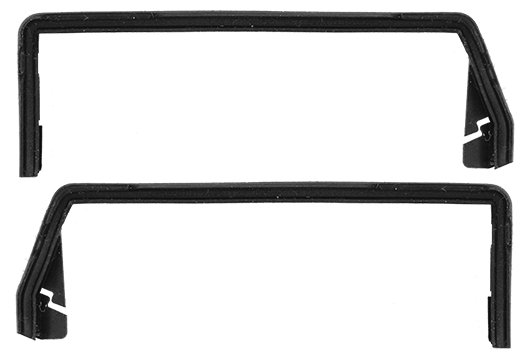

Thermal Duct (Left and Right)
923-01461

Thermal Duct (Left and Right) 923-01461 for MacBook Pro 15-inch 2016

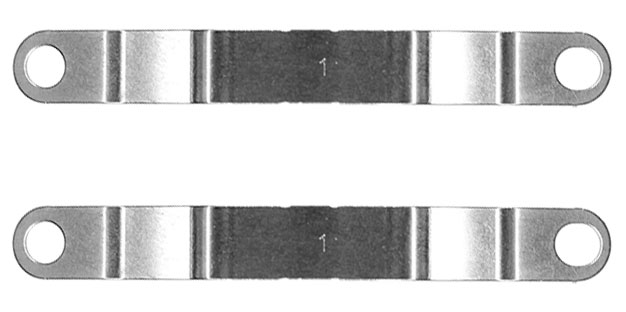

Heatsink GPU Flexure (Pair)
923-01483

Heatsink GPU Flexure (Pair) 923-01483 for MacBook Pro 15-inch 2016

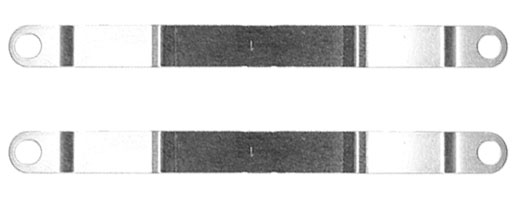

Heatsink CPU Flexure (Pair)
923-01484

Heatsink CPU Flexure (Pair) 923-01484 for MacBook Pro 15-inch 2016

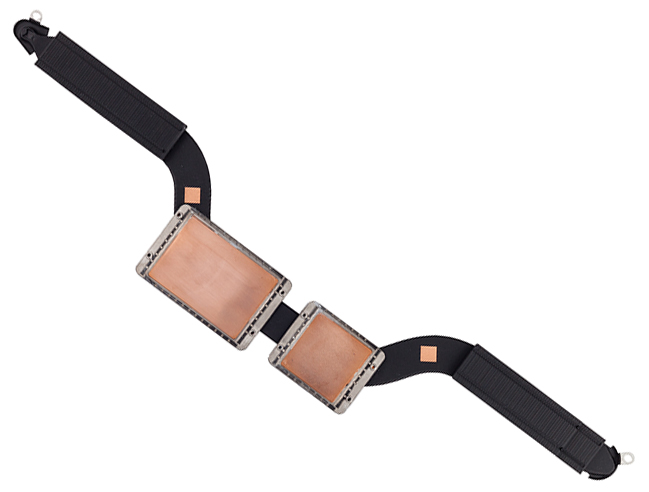

CPU Heatsink, Radeon Pro Graphics Cards
076-00294

CPU Heatsink, Radeon Pro Graphics Cards 076-00294 for MacBook Pro 15-inch 2016
Logic Board
661-06246, 661-06250, 661-06254, 661-06258, 661-06262, 661-06266, 661-06270, 661-06274, 661-06278, 661-06282, 661-06286, 661-06290, 661-06294, 661-06298, 661-06302, 661-06306, 661-06310, 661-06314, 661-06318, 661-06322, 661-06326, 661-06330, 661-06334, 661-06338, 661-06342

Logic Board 661-06246, 661-06250, 661-06254, 661-06258, 661-06262, 661-06266, 661-06270, 661-06274, 661-06278, 661-06282, 661-06286, 661-06290, 661-06294, 661-06298, 661-06302, 661-06306, 661-06310, 661-06314, 661-06318, 661-06322, 661-06326, 661-06330, 661-06334, 661-06338, 661-06342 for MacBook Pro 15-inch 2016

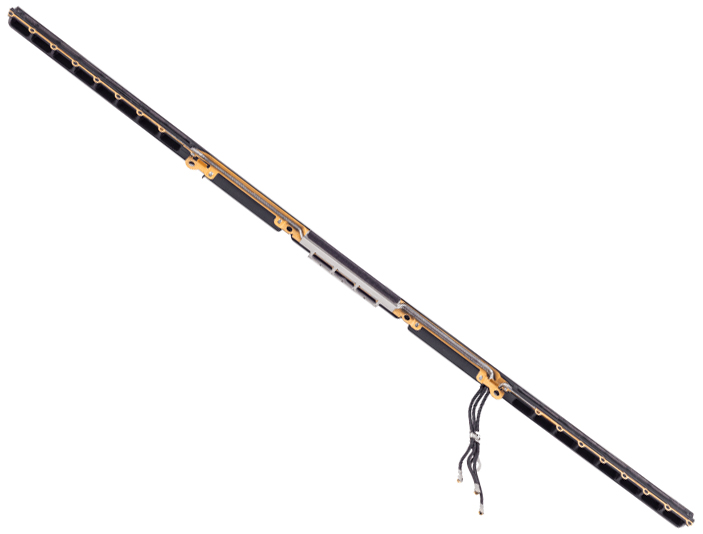

Vent / Antenna Module
923-01460

Vent / Antenna Module 923-01460 for MacBook Pro 15-inch 2016

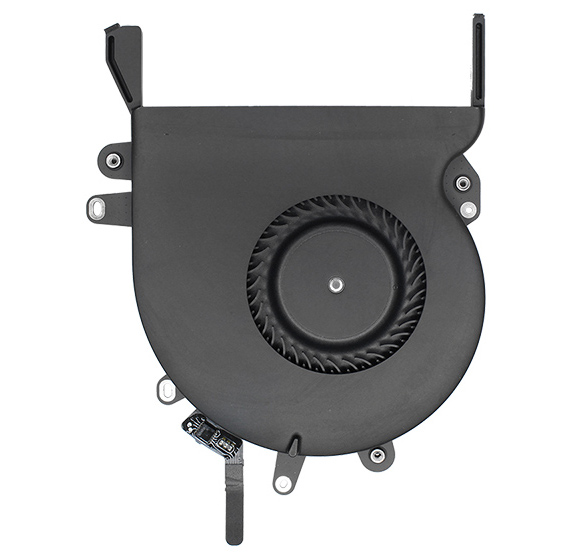

CPU Cooling Fan, Left
923-01459

CPU Cooling Fan, Left 923-01459 for MacBook Pro 15-inch 2016

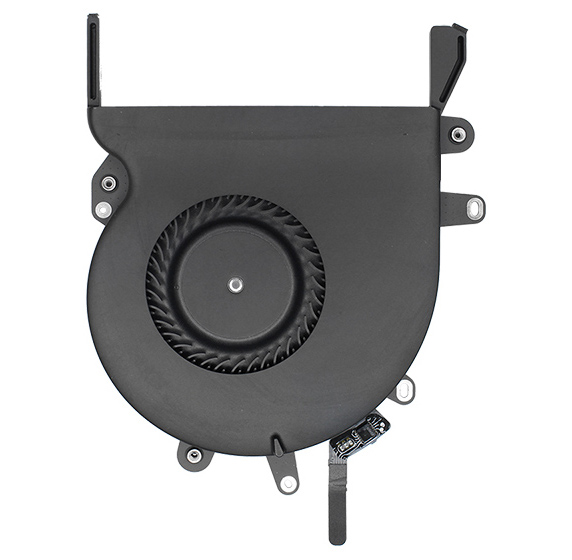

CPU Cooling Fan, Right
923-01471

CPU Cooling Fan, Right 923-01471 for MacBook Pro 15-inch 2016

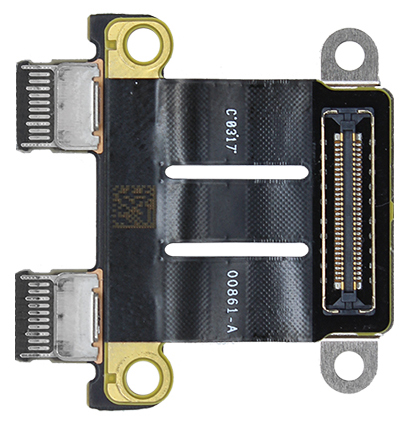

I/O Board (Left or Right)
923-01480

I/O Board (Left or Right) 923-01480 for MacBook Pro 15-inch 2016

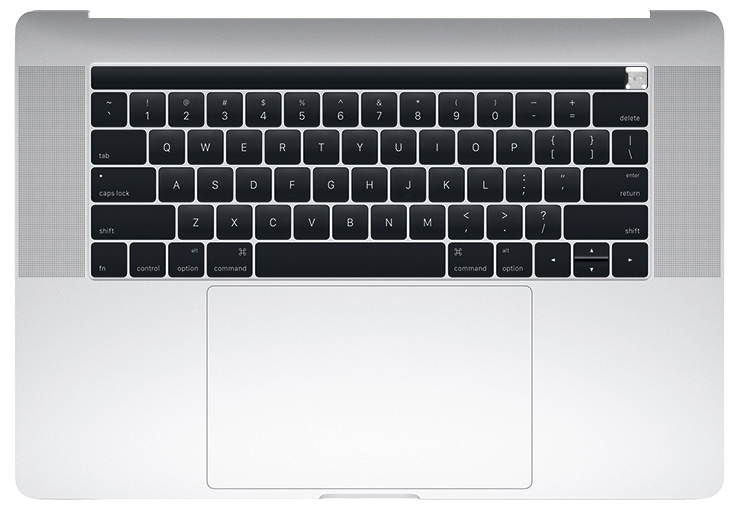

Top Case w/ Keyboard and Battery
661-06377, 661-06378

Top Case w/ Keyboard and Battery 661-06377, 661-06378 for MacBook Pro 15-inch 2016

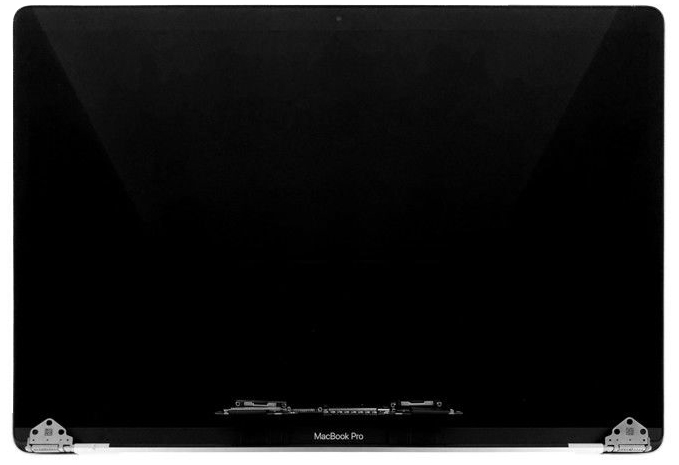

Display Assembly
661-06375, 661-06376

Display Assembly 661-06375, 661-06376 for MacBook Pro 15-inch 2016

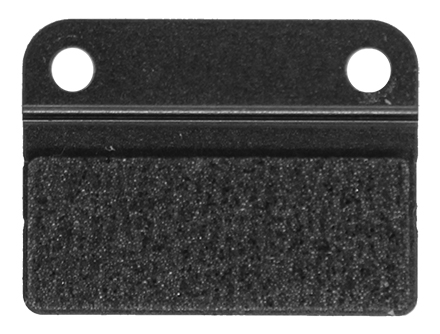

Cowling, Trackpad (IPD) 923-01485 for MacBook Pro 15-inch 2016
Cowling, Trackpad (IPD)
923-01485

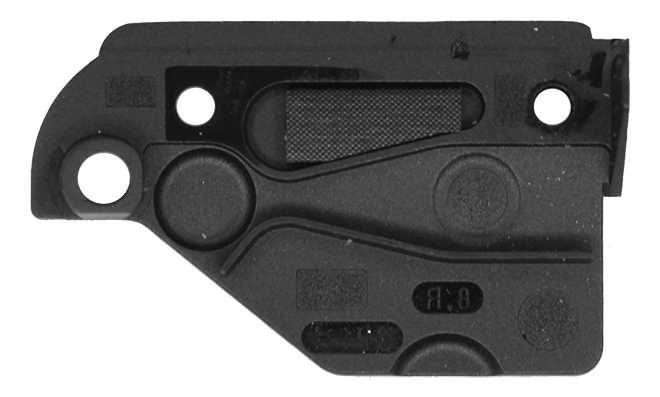

Clutch Cover, Left 923-01462 for MacBook Pro 15-inch 2016
Clutch Cover, Left
923-01462

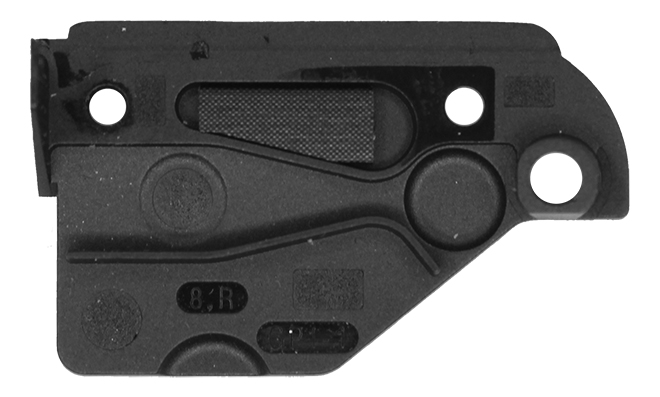

Clutch Cover, Right 923-01463 for MacBook Pro 15-inch 2016
Clutch Cover, Right
923-01463

I/O Board Rubber Gasket 923-01405 for MacBook Pro 15-inch 2016
I/O Board Rubber Gasket
923-01405

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 15-inch 2016
Cowling, Display / LVDS / eDP Upper
923-01310

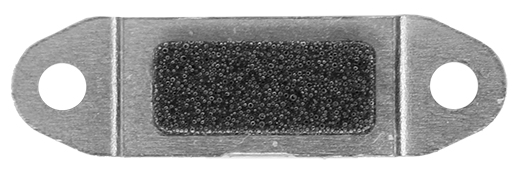

Display Top Module (Touch Bar Display) Cowling 923-01487 for MacBook Pro 15-inch 2016
Display Top Module (Touch Bar Display) Cowling
923-01487

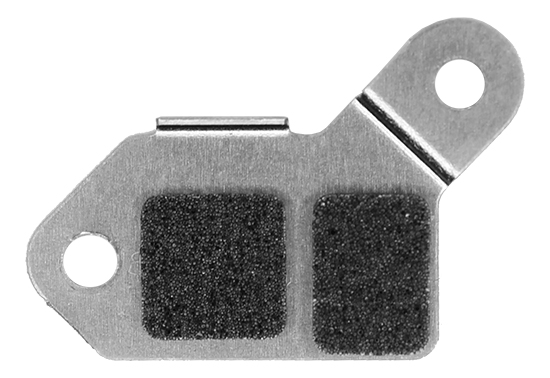

Touch ID and Audio Board Flex Cowling 923-01488 for MacBook Pro 15-inch 2016
Touch ID and Audio Board Flex Cowling
923-01488

Touch ID Top Module (Touch Bar Touch) Cowling 923-01490 for MacBook Pro 15-inch 2016
Touch ID Top Module (Touch Bar Touch) Cowling
923-01490

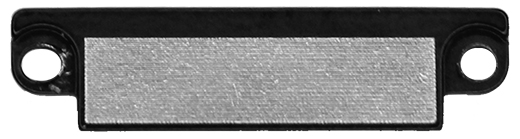

Display / LVDS / eDP Ground (Lower) Cowling 923-01489 for MacBook Pro 15-inch 2016
Display / LVDS / eDP Ground (Lower) Cowling
923-01489

Display / LVDS / eDP Flex Cable 923-01465 for MacBook Pro 15-inch 2016
Display / LVDS / eDP Flex Cable
923-01465

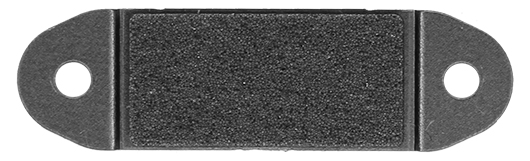

Keyboard Flex Cable Cowling 923-01486 for MacBook Pro 15-inch 2016
Keyboard Flex Cable Cowling
923-01486

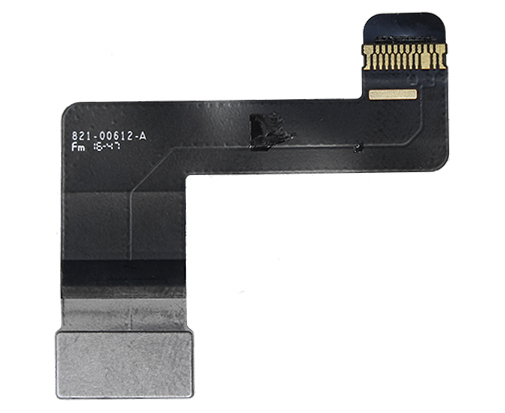

Keyboard to Logic Board Flex Cable, ANSI/ISO 923-01477 for MacBook Pro 15-inch 2016
Keyboard to Logic Board Flex Cable, ANSI/ISO
923-01477

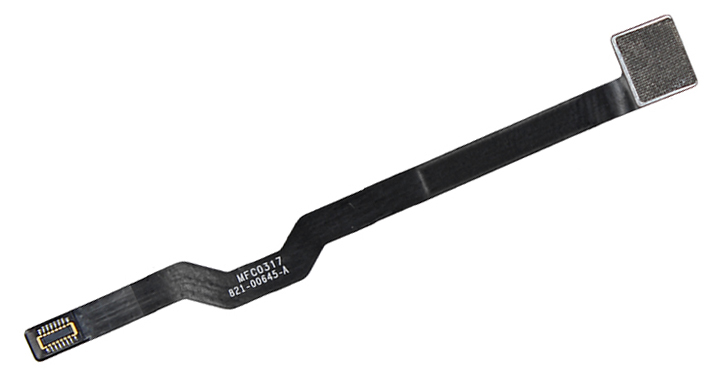

Touch ID / Button Flex Cable 923-01492 for MacBook Pro 15-inch 2016
Touch ID / Button Flex Cable
923-01492

Touch ID Button Flexure 923-01740 for MacBook Pro 15-inch 2016
Touch ID Button Flexure
923-01740

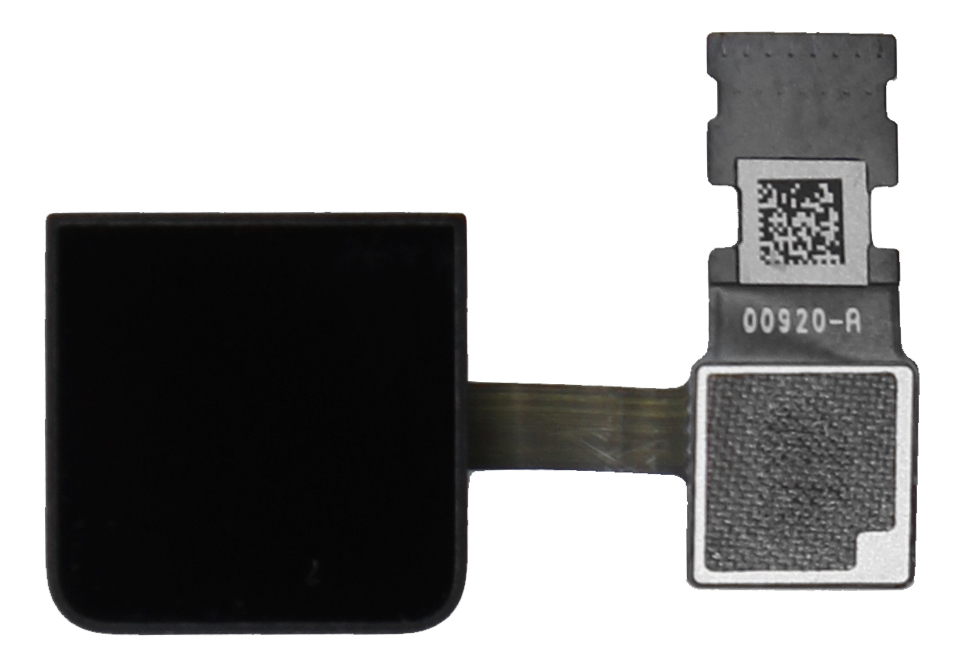

Touch ID Button / Board 661-10344 for MacBook Pro 15-inch 2016
Touch ID Button / Board
661-10344
