Exploded View MacBook Pro 13-inch 2017 2 TBT3

MacBook Pro 13-inch 2017 2 TBT3 - Exploded View

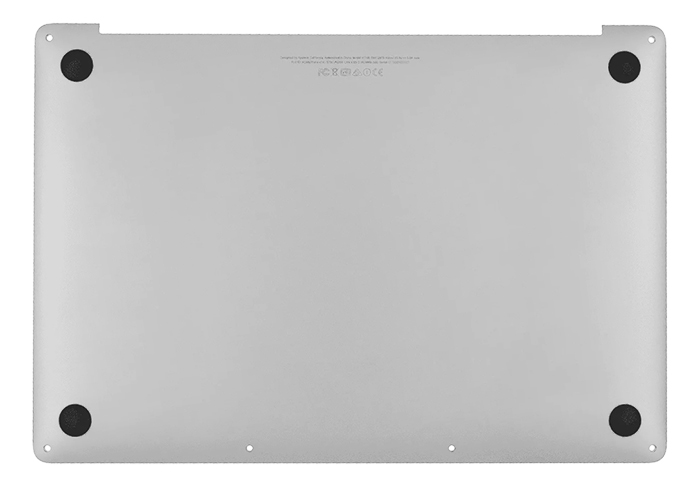

Bottom Case
923-01128, 923-01167

Bottom Case 923-01128, 923-01167 for MacBook Pro 13-inch 2017 2 TBT3

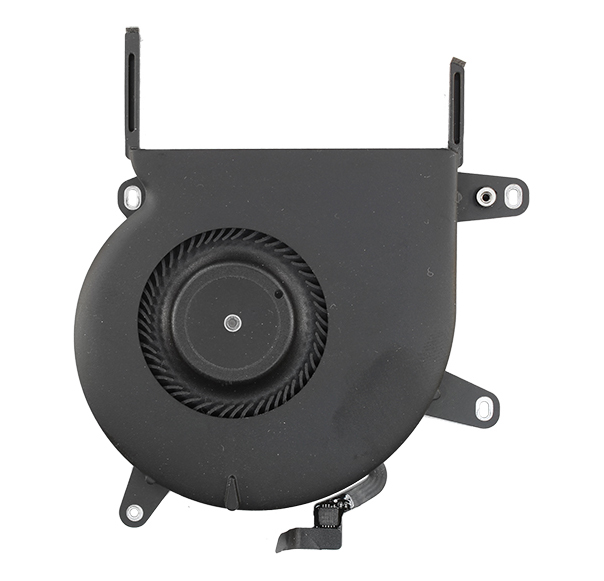

CPU Cooling Fan
923-01168

CPU Cooling Fan 923-01168 for MacBook Pro 13-inch 2017 2 TBT3

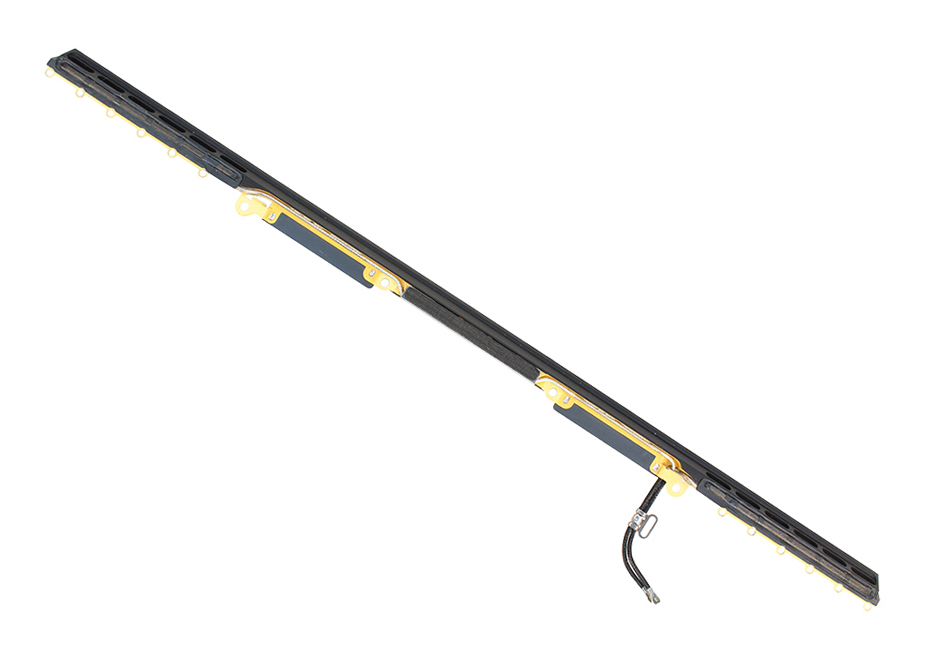

Vent/Antenna Module
923-01169

Vent/Antenna Module 923-01169 for MacBook Pro 13-inch 2017 2 TBT3

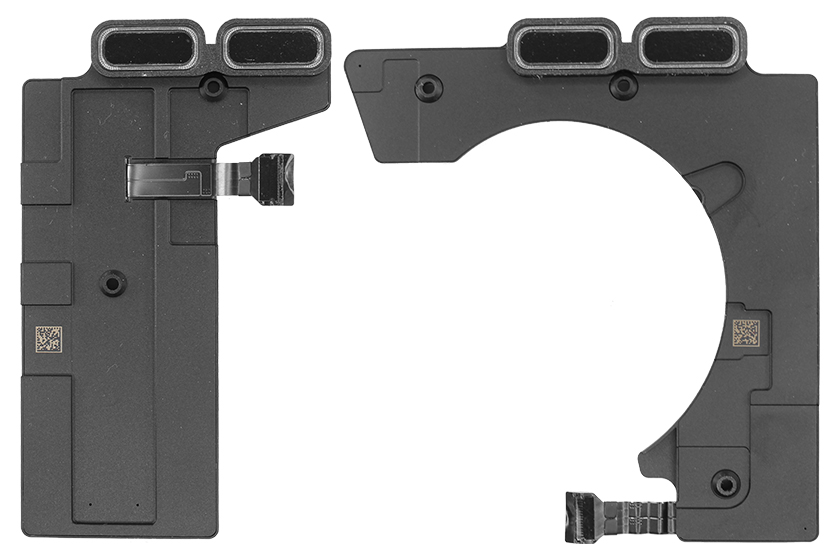

Speakers Set (Left and Right)
923-01078

Speakers Set (Left and Right) 923-01078 for MacBook Pro 13-inch 2017 2 TBT3

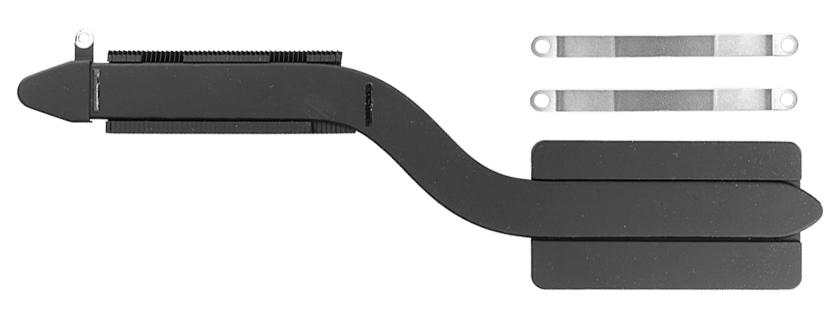

CPU Heatsink w/ Flexures (Springs) Kit
076-00245

CPU Heatsink w/ Flexures (Springs) Kit 076-00245 for MacBook Pro 13-inch 2017 2 TBT3

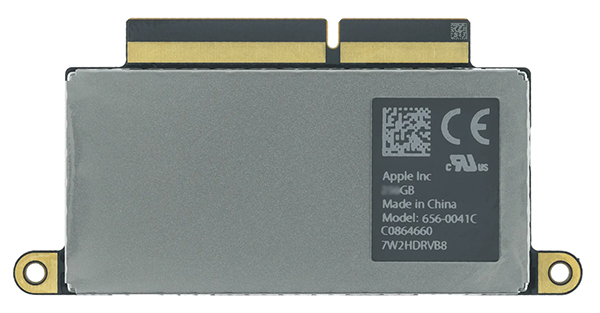

Solid State Drive (SSD / Flash) PCIe
661-05111, 661-05112, 661-05113, 661-07584

Solid State Drive (SSD / Flash) PCIe 661-05111, 661-05112, 661-05113, 661-07584 for MacBook Pro 13-inch 2017 2 TBT3

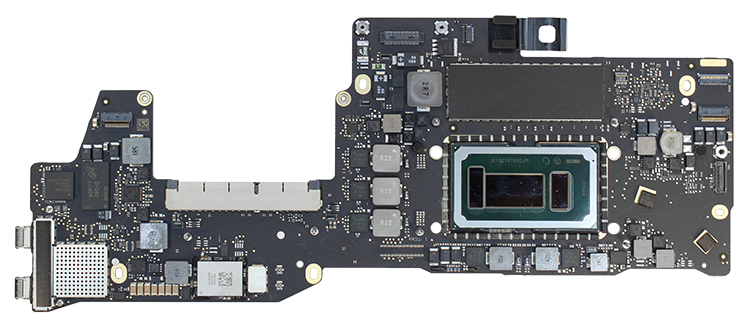

Logic Board
661-07568, 661-07572, 661-07576, 661-07580

Logic Board 661-07568, 661-07572, 661-07576, 661-07580 for MacBook Pro 13-inch 2017 2 TBT3

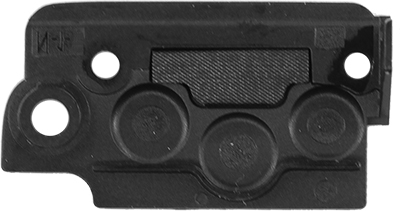

Clutch Cover, Left
923-01446

Clutch Cover, Left 923-01446 for MacBook Pro 13-inch 2017 2 TBT3

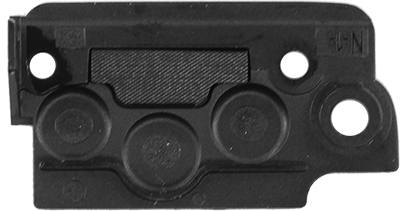

Clutch Cover, Right
923-01445

Clutch Cover, Right 923-01445 for MacBook Pro 13-inch 2017 2 TBT3

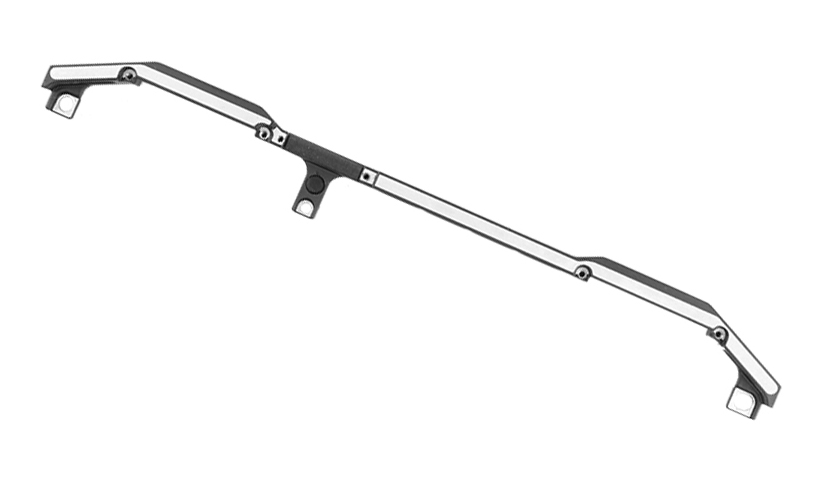

Rear Wall Assembly
923-01192

Rear Wall Assembly 923-01192 for MacBook Pro 13-inch 2017 2 TBT3

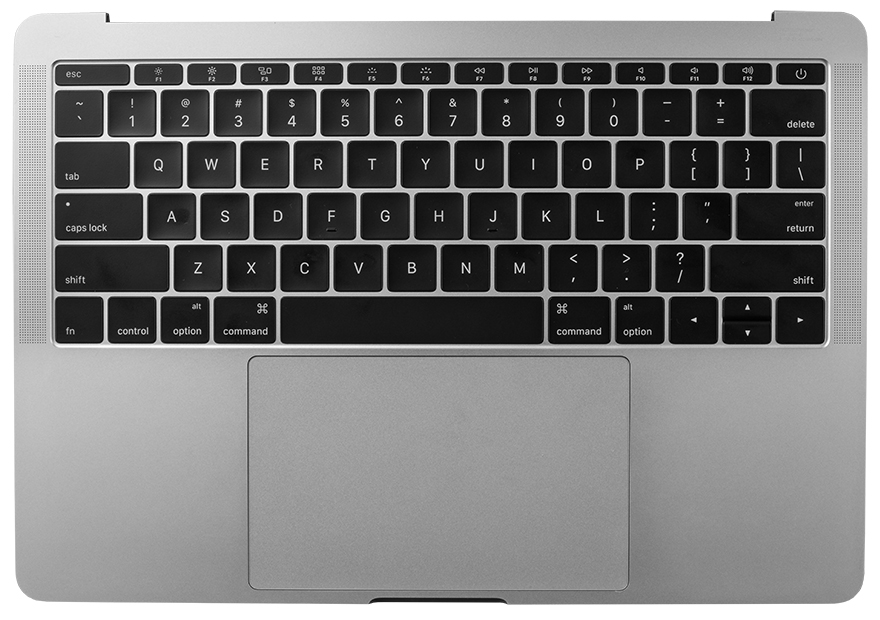

Top Case w/ Battery
661-05115, 661-07946, 661-07947

Top Case w/ Battery 661-05115, 661-07946, 661-07947 for MacBook Pro 13-inch 2017 2 TBT3

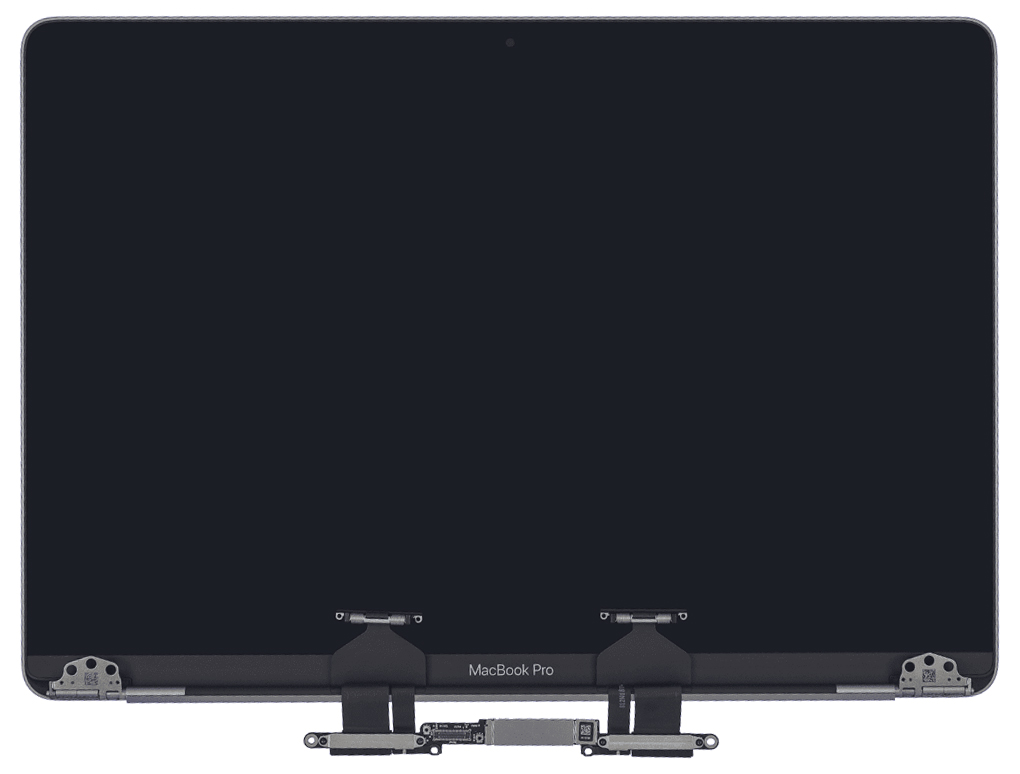

Display Assembly
661-05095, 661-05096

Display Assembly 661-05095, 661-05096 for MacBook Pro 13-inch 2017 2 TBT3

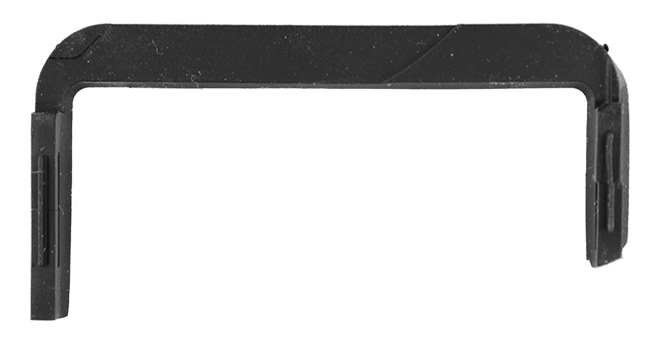

Thermal Rubber Duct 923-01171 for MacBook Pro 13-inch 2017 2 TBT3
Thermal Rubber Duct
923-01171

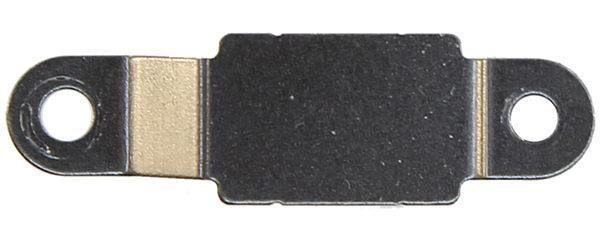

Audio Flex Cable Cowling / Bracket (Bent) 923-01296 for MacBook Pro 13-inch 2017 2 TBT3
Audio Flex Cable Cowling / Bracket (Bent)
923-01296

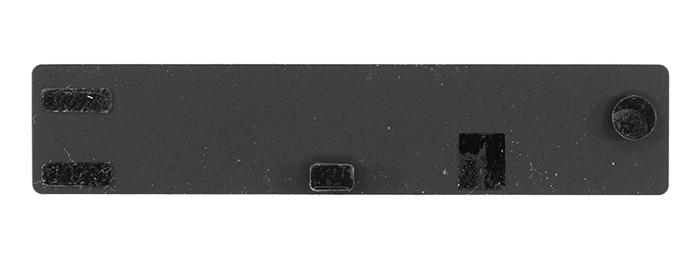

BMU Mylar Cover 923-01450 for MacBook Pro 13-inch 2017 2 TBT3
BMU Mylar Cover
923-01450

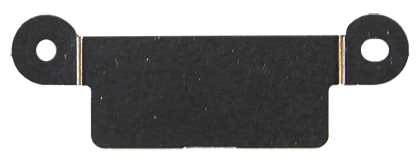

Trackpad Flex Cable Cowling 923-01303 for MacBook Pro 13-inch 2017 2 TBT3
Trackpad Flex Cable Cowling
923-01303

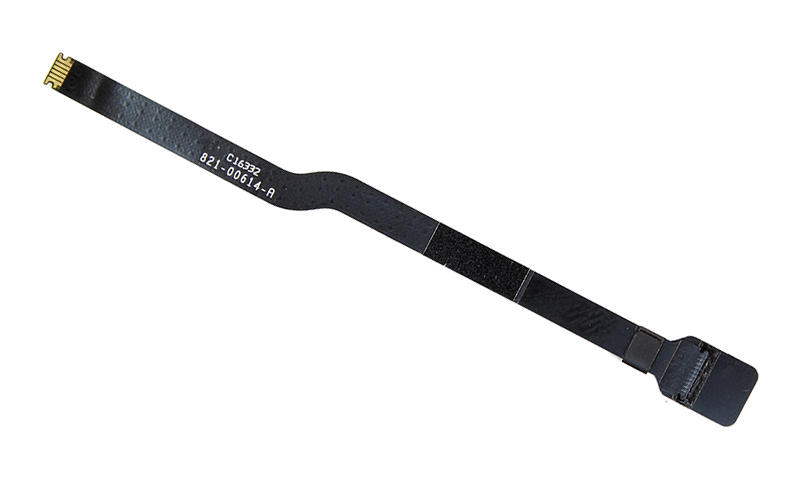

BMU (Battery Daughter Board) Flex Cable 923-01448 for MacBook Pro 13-inch 2017 2 TBT3
BMU (Battery Daughter Board) Flex Cable
923-01448

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 13-inch 2017 2 TBT3
Cowling, Display / LVDS / eDP Upper
923-01310

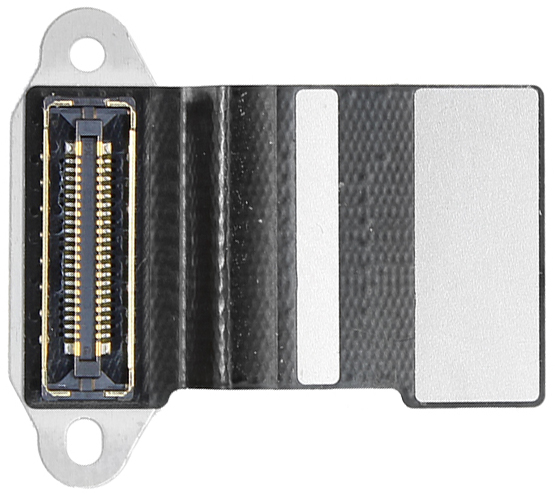

Display / LVDS / eDP Cable w/ Cowling 923-01288 for MacBook Pro 13-inch 2017 2 TBT3
Display / LVDS / eDP Cable w/ Cowling
923-01288

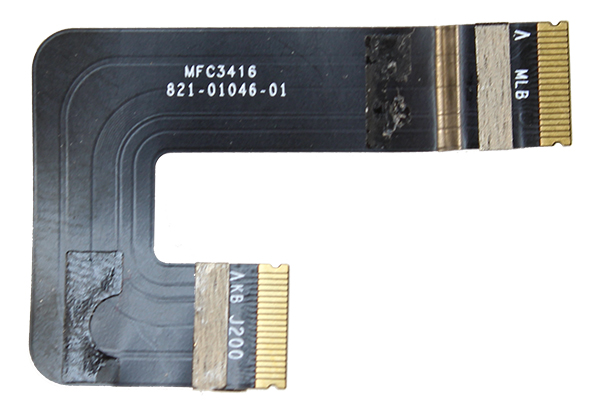

Keyboard To Logic Board Flex Cable 923-01447 for MacBook Pro 13-inch 2017 2 TBT3
Keyboard To Logic Board Flex Cable
923-01447

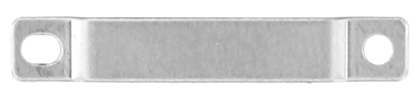

TCON Ground Cowling 923-01308 for MacBook Pro 13-inch 2017 2 TBT3
TCON Ground Cowling
923-01308
