Exploded View MacBook Pro 13-inch 2017 4 TBT3

MacBook Pro 13-inch 2017 4 TBT3 - Exploded View

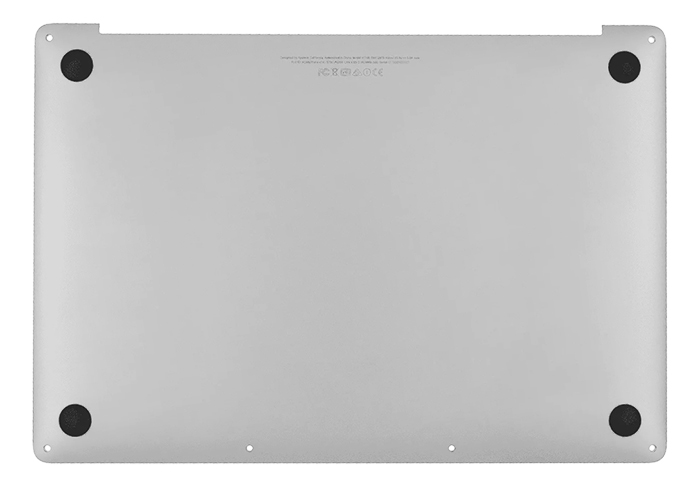

Bottom Case
923-01381, 923-01382

Bottom Case 923-01381, 923-01382 for MacBook Pro 13-inch 2017 4 TBT3
Fan Rubber Ducts (Left and Right)
923-01394

Fan Rubber Ducts (Left and Right) 923-01394 for MacBook Pro 13-inch 2017 4 TBT3

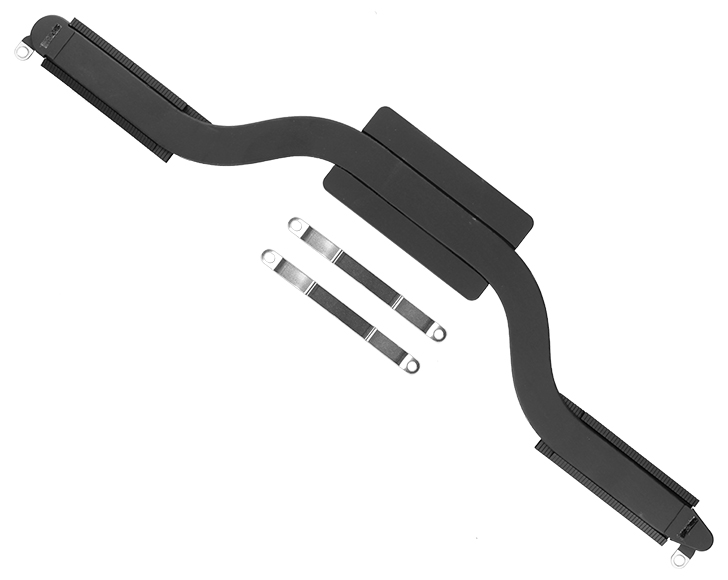

CPU Heatsink
076-00293

CPU Heatsink 076-00293 for MacBook Pro 13-inch 2017 4 TBT3

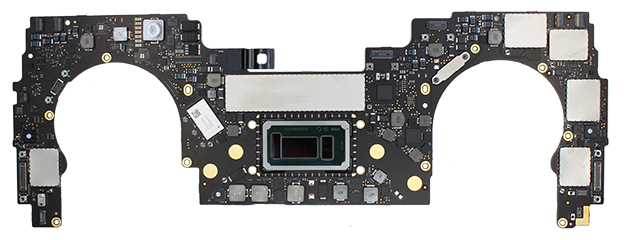

Logic Board
661-07647, 661-07651, 661-07655, 661-07659, 661-07663, 661-07667, 661-07671, 661-07675, 661-07679, 661-07683, 661-07687, 661-07691, 661-07695, 661-07699, 661-07703, 661-07707, 661-07711, 661-07715

Logic Board 661-07647, 661-07651, 661-07655, 661-07659, 661-07663, 661-07667, 661-07671, 661-07675, 661-07679, 661-07683, 661-07687, 661-07691, 661-07695, 661-07699, 661-07703, 661-07707, 661-07711, 661-07715 for MacBook Pro 13-inch 2017 4 TBT3
Vent / Antenna Module
923-01389

Vent / Antenna Module 923-01389 for MacBook Pro 13-inch 2017 4 TBT3

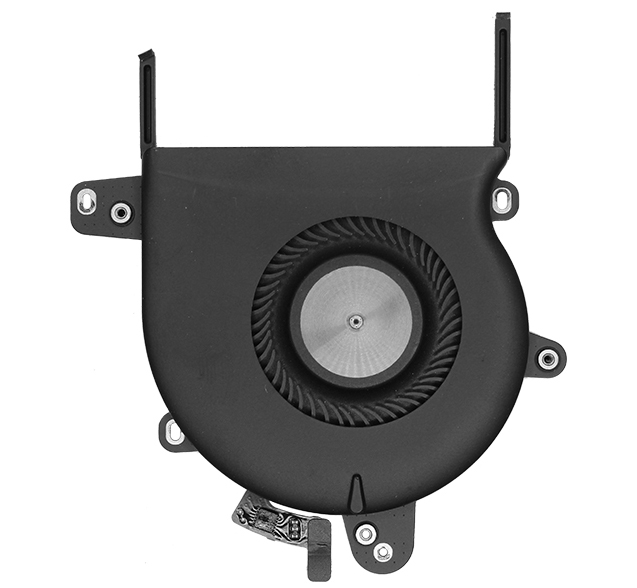

Fan, Left
923-01388

Fan, Left 923-01388 for MacBook Pro 13-inch 2017 4 TBT3

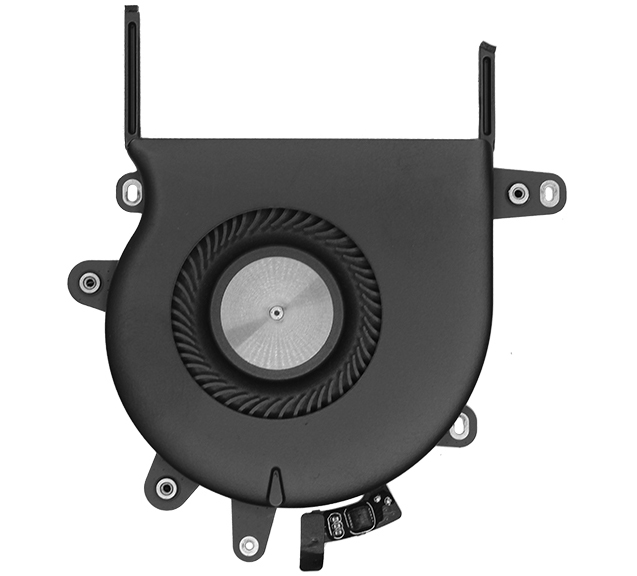

Fan, Right
923-01472

Fan, Right 923-01472 for MacBook Pro 13-inch 2017 4 TBT3

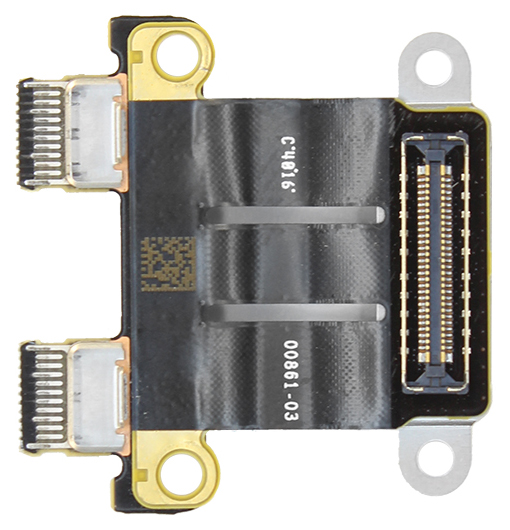

I/O Board (Right or Left)
923-01444

I/O Board (Right or Left) 923-01444 for MacBook Pro 13-inch 2017 4 TBT3
Touch ID Shim Button
923-01519

Touch ID Shim Button 923-01519 for MacBook Pro 13-inch 2017 4 TBT3

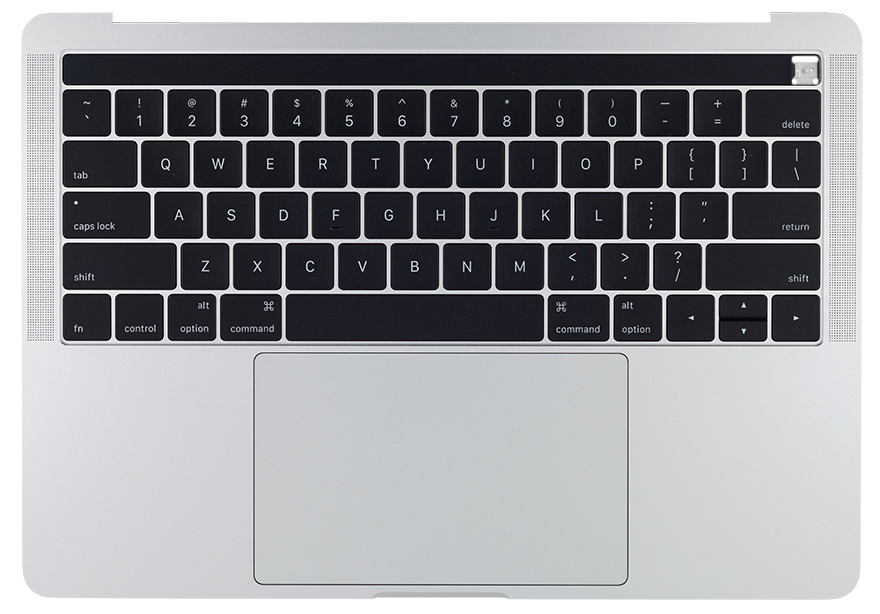

Top Case w/ Battery
661-07950, 661-07951

Top Case w/ Battery 661-07950, 661-07951 for MacBook Pro 13-inch 2017 4 TBT3
Display Assembly
661-05095, 661-05096

Display Assembly 661-05095, 661-05096 for MacBook Pro 13-inch 2017 4 TBT3

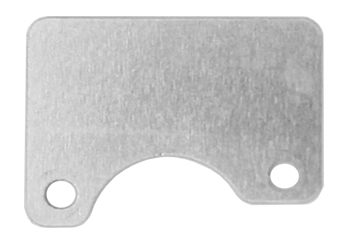

Audio Board / Jack Cowling 923-01600 for MacBook Pro 13-inch 2017 4 TBT3
Audio Board / Jack Cowling
923-01600

Keyboard / Trackpad Flex Cable Cowling 923-01623 for MacBook Pro 13-inch 2017 4 TBT3
Keyboard / Trackpad Flex Cable Cowling
923-01623

Touch Bar (Touch) Cowling 923-01602 for MacBook Pro 13-inch 2017 4 TBT3
Touch Bar (Touch) Cowling
923-01602

Touch Bar (Display) Cowling 923-01603 for MacBook Pro 13-inch 2017 4 TBT3
Touch Bar (Display) Cowling
923-01603

Clutch Cover Left 923-01305 for MacBook Pro 13-inch 2017 4 TBT3
Clutch Cover Left
923-01305

Clutch Cover Right 923-01304 for MacBook Pro 13-inch 2017 4 TBT3
Clutch Cover Right
923-01304

I/O Board Rubber Gasket 923-01405 for MacBook Pro 13-inch 2017 4 TBT3
I/O Board Rubber Gasket
923-01405

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 13-inch 2017 4 TBT3
Cowling, Display / LVDS / eDP Upper
923-01310

BMU Battery (Daughter Board) Mylar Cover 923-01451 for MacBook Pro 13-inch 2017 4 TBT3
BMU Battery (Daughter Board) Mylar Cover
923-01451

Display / LVDS / eDP Lower Cowling 923-01601 for MacBook Pro 13-inch 2017 4 TBT3
Display / LVDS / eDP Lower Cowling
923-01601

Display / LVDS / eDP (eDP) Cable 923-01393 for MacBook Pro 13-inch 2017 4 TBT3
Display / LVDS / eDP (eDP) Cable
923-01393

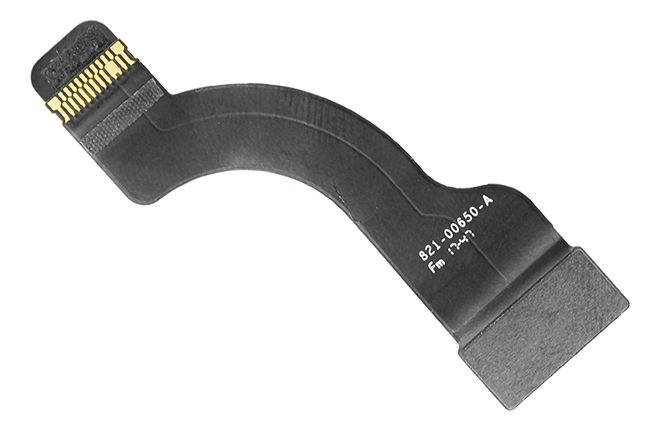

Keyboard Flex Cable 923-01453 for MacBook Pro 13-inch 2017 4 TBT3
Keyboard Flex Cable
923-01453

Touch ID Button Flexure 923-01740 for MacBook Pro 13-inch 2017 4 TBT3
Touch ID Button Flexure
923-01740
