Exploded View Mac mini 2018

Mac mini 2018 - Exploded View

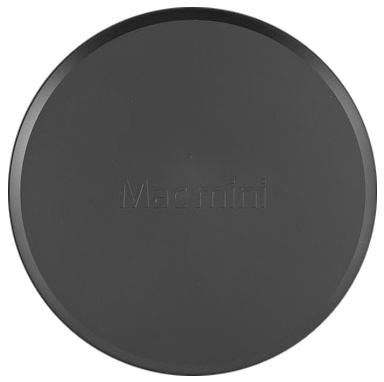

Bottom Case / Cover
923-02436

Bottom Case / Cover 923-02436 for Mac mini 2018

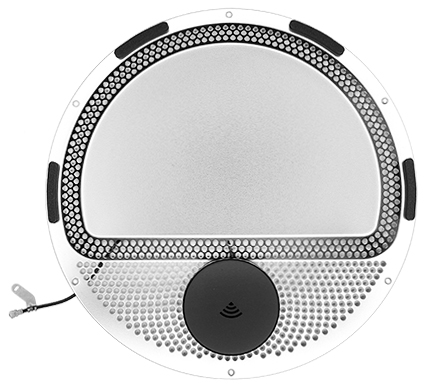

Antenna Plate
923-02437

Antenna Plate 923-02437 for Mac mini 2018

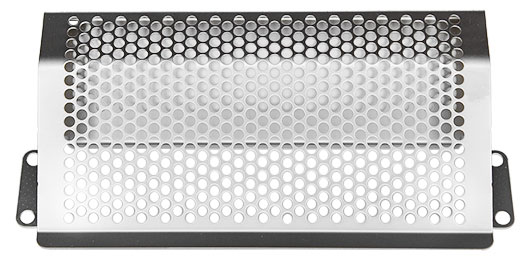

Memory Cover
923-02794

Memory Cover 923-02794 for Mac mini 2018

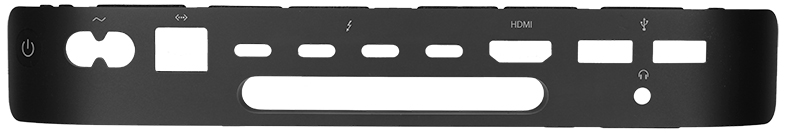

I/O Wall
923-02788

I/O Wall 923-02788 for Mac mini 2018

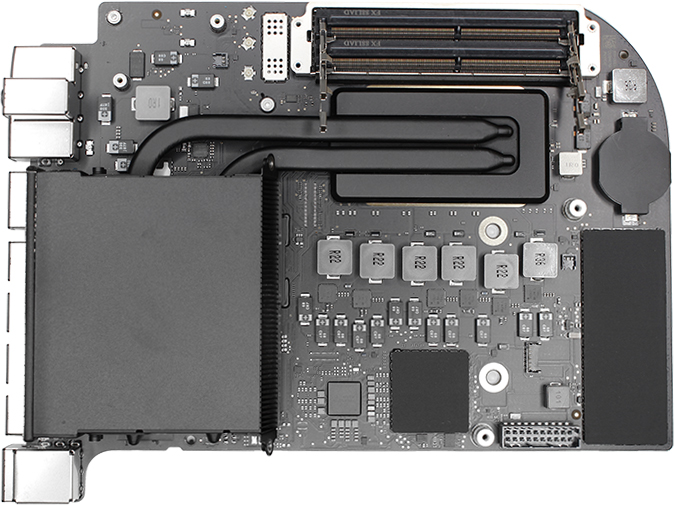

Logic Board
661-10205, 661-10206, 661-10207, 661-10208, 661-10209, 661-10210, 661-10211, 661-10212, 661-10213, 661-10214, 661-10215, 661-10216, 661-10217, 661-10218, 661-10219, 661-10220, 661-10221, 661-10222, 661-10223, 661-10224, 661-10225, 661-10226, 661-10227, 661-10228, 661-10229, 661-10230, 661-10231, 661-10232

Logic Board 661-10205, 661-10206, 661-10207, 661-10208, 661-10209, 661-10210, 661-10211, 661-10212, 661-10213, 661-10214, 661-10215, 661-10216, 661-10217, 661-10218, 661-10219, 661-10220, 661-10221, 661-10222, 661-10223, 661-10224, 661-10225, 661-10226, 661-10227, 661-10228, 661-10229, 661-10230, 661-10231, 661-10232 for Mac mini 2018

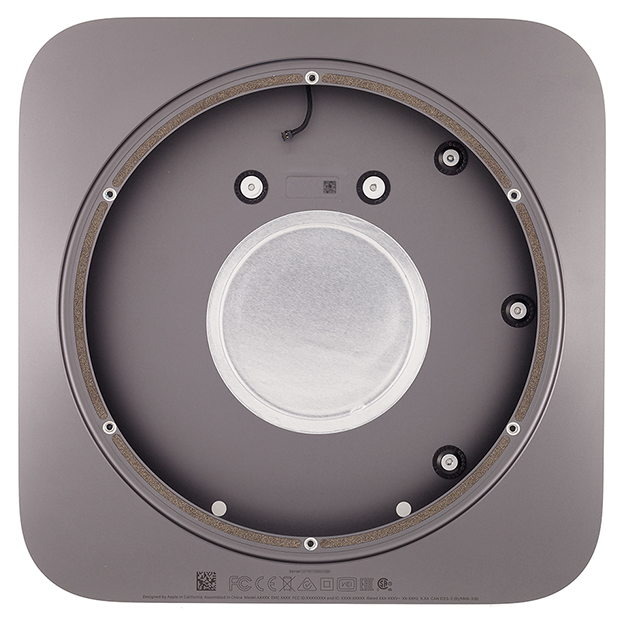

Housing
923-02790

Housing 923-02790 for Mac mini 2018

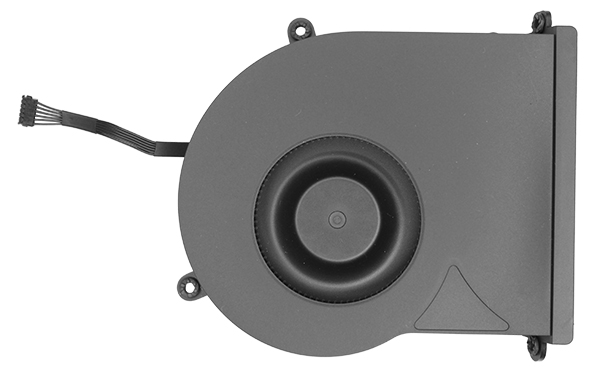

CPU Cooling Fan 923-02434 for Mac mini 2018
CPU Cooling Fan
923-02434

Left & Right Bumpers Set 923-02792 for Mac mini 2018
Left & Right Bumpers Set
923-02792

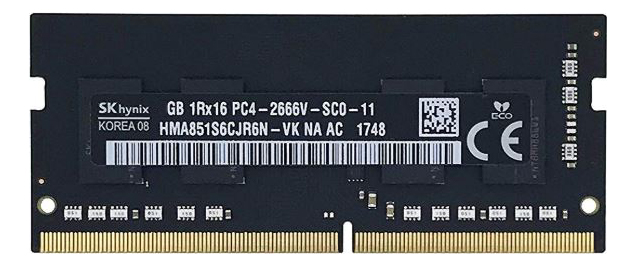

Memory DDR4 2666MHz 661-10239, 661-10240, 661-10241, 661-10242 for Mac mini 2018
Memory DDR4 2666MHz
661-10239, 661-10240, 661-10241, 661-10242

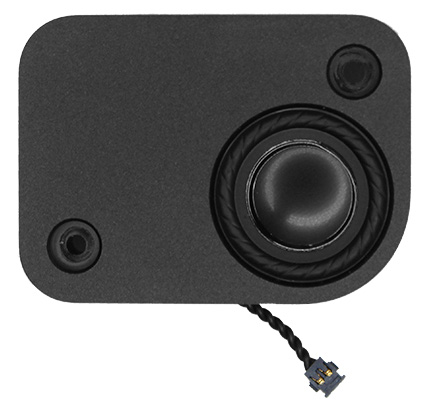

Speaker 923-02435 for Mac mini 2018
Speaker
923-02435

AC Inlet Cowling 923-02795 for Mac mini 2018
AC Inlet Cowling
923-02795

AC Inlet Retention Clip 923-02789 for Mac mini 2018
AC Inlet Retention Clip
923-02789

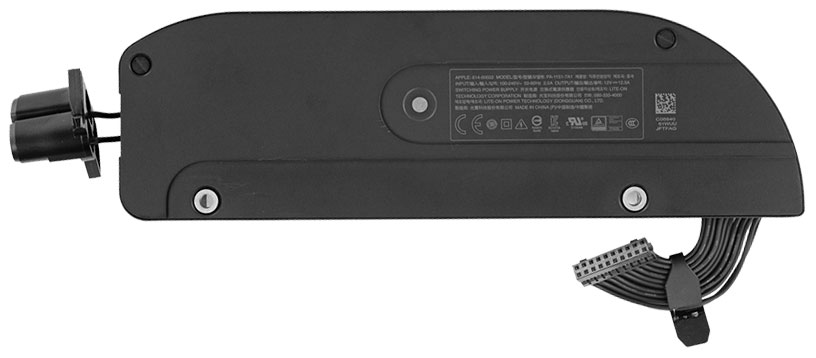

Power Supply 661-09983 for Mac mini 2018
Power Supply
661-09983
