Exploded View MacBook Air Retina 13-inch 2018

MacBook Air Retina 13-inch 2018 - Exploded View



Bottom Case
923-02825, 923-02826, 923-02827

Bottom Case 923-02825, 923-02826, 923-02827 for MacBook Air Retina 13-inch 2018
Battery A1965
923-03022

Battery A1965 923-03022 for MacBook Air Retina 13-inch 2018
CPU Cooling Fan
923-02438

CPU Cooling Fan 923-02438 for MacBook Air Retina 13-inch 2018
Logic Board
661-09709, 661-09710, 661-09711, 661-09712, 661-09713, 661-09714, 661-09715, 661-09716

Logic Board 661-09709, 661-09710, 661-09711, 661-09712, 661-09713, 661-09714, 661-09715, 661-09716 for MacBook Air Retina 13-inch 2018
Speaker (Pair)
923-02441

Speaker (Pair) 923-02441 for MacBook Air Retina 13-inch 2018
Vent/Antenna Module
923-02349

Vent/Antenna Module 923-02349 for MacBook Air Retina 13-inch 2018
Audio Board
923-02823, 923-02824

Audio Board 923-02823, 923-02824 for MacBook Air Retina 13-inch 2018
Top Case w/ Keyboard
661-09736, 661-09737, 661-09738

Top Case w/ Keyboard 661-09736, 661-09737, 661-09738 for MacBook Air Retina 13-inch 2018

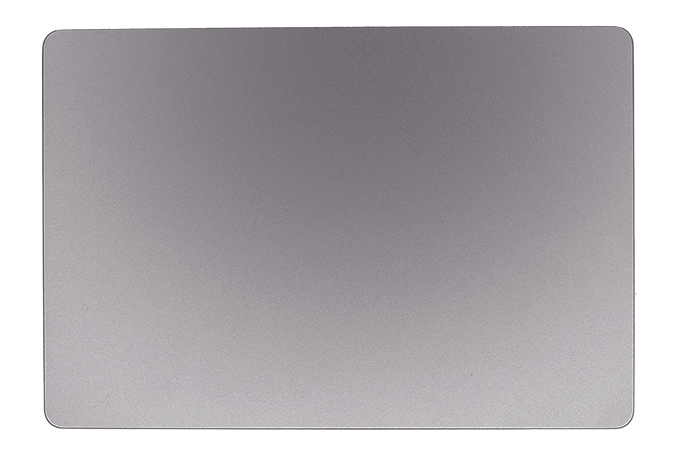

Trackpad
661-11906, 661-11907, 661-11908

Trackpad 661-11906, 661-11907, 661-11908 for MacBook Air Retina 13-inch 2018

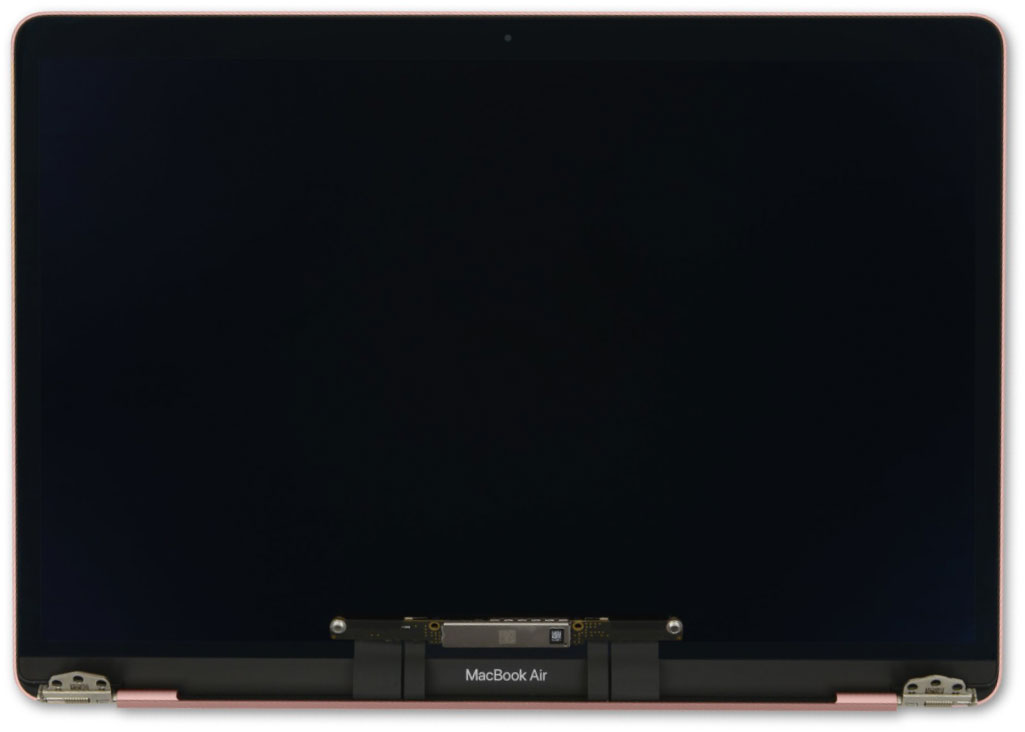

Display Assembly
661-09733, 661-09734, 661-09735

Display Assembly 661-09733, 661-09734, 661-09735 for MacBook Air Retina 13-inch 2018
Audio Board Flex Cable 923-02812 for MacBook Air Retina 13-inch 2018
Audio Board Flex Cable
923-02812

I/O (USB-C) Board 923-02813 for MacBook Air Retina 13-inch 2018
I/O (USB-C) Board
923-02813

DisplayPort (eDP) Flex Cable 923-02440 for MacBook Air Retina 13-inch 2018
DisplayPort (eDP) Flex Cable
923-02440

Cowling, I/O Board (USB-C) Flex Cable 923-02873 for MacBook Air Retina 13-inch 2018
Cowling, I/O Board (USB-C) Flex Cable
923-02873

Cowling, Logic Board to Input Device (IPD) Flex cable 923-02876 for MacBook Air Retina 13-inch 2018
Cowling, Logic Board to Input Device (IPD) Flex cable
923-02876

Cowling, Logic Board, Wireless Antenna 923-02874 for MacBook Air Retina 13-inch 2018
Cowling, Logic Board, Wireless Antenna
923-02874

Cowling, eDP (Display) Flex Cable 923-02877 for MacBook Air Retina 13-inch 2018
Cowling, eDP (Display) Flex Cable
923-02877

Cowling, Audio Board Flex Cable / Touch ID 923-02875 for MacBook Air Retina 13-inch 2018
Cowling, Audio Board Flex Cable / Touch ID
923-02875

Touch ID Board 661-11677 for MacBook Air Retina 13-inch 2018
Touch ID Board
661-11677

IPD Flex Cable, ANSI/ISO 923-02932 for MacBook Air Retina 13-inch 2018
IPD Flex Cable, ANSI/ISO
923-02932
