Exploded View MacBook Pro 15-inch 2019

MacBook Pro 15-inch 2019 - Exploded View



Bottom Case
923-02509, 923-02510

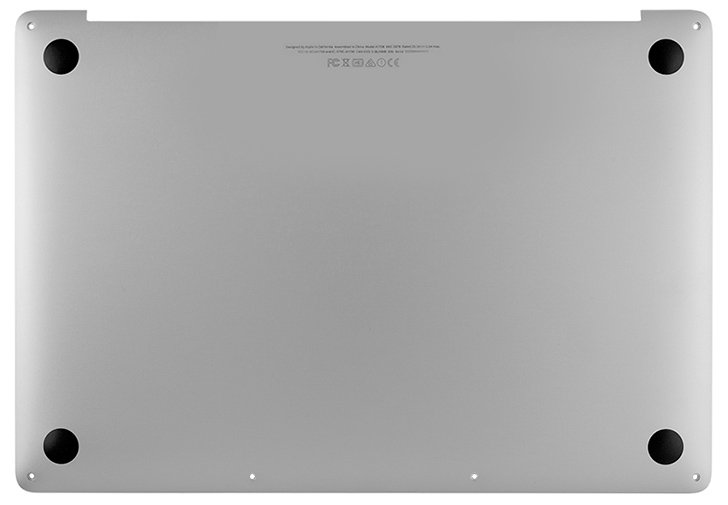

Bottom Case 923-02509, 923-02510 for MacBook Pro 15-inch 2019
Thermal Duct (Left and Right)
923-01461

Thermal Duct (Left and Right) 923-01461 for MacBook Pro 15-inch 2019
Heatsink GPU Flexure (Pair)
923-01483

Heatsink GPU Flexure (Pair) 923-01483 for MacBook Pro 15-inch 2019
Heatsink CPU Flexure (Pair)
923-01484

Heatsink CPU Flexure (Pair) 923-01484 for MacBook Pro 15-inch 2019
Heatsink, Radeon Pro Vega 16 / 20 Graphics Cards
076-00406

Heatsink, Radeon Pro Vega 16 / 20 Graphics Cards 076-00406 for MacBook Pro 15-inch 2019
Vent / Antenna Module
923-01460

Vent / Antenna Module 923-01460 for MacBook Pro 15-inch 2019
CPU Cooling Fan, Left
923-01459

CPU Cooling Fan, Left 923-01459 for MacBook Pro 15-inch 2019
CPU Cooling Fan, Right
923-01471

CPU Cooling Fan, Right 923-01471 for MacBook Pro 15-inch 2019
Touch ID Shim Button
923-01492, 923-01519

Touch ID Shim Button 923-01492, 923-01519 for MacBook Pro 15-inch 2019
Audio Board

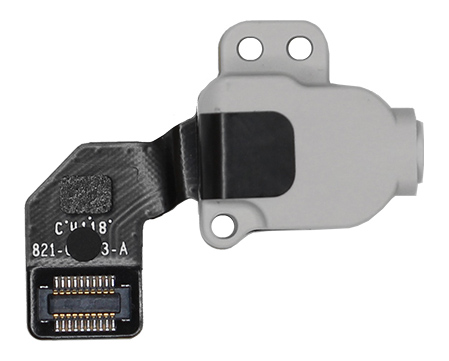

923-02495, 923-02496

Audio Board 923-02495, 923-02496 for MacBook Pro 15-inch 2019
BMU Flex Cable
923-02540

BMU Flex Cable 923-02540 for MacBook Pro 15-inch 2019
Top Case w/ Keyboard and Battery
661-10345, 661-10347

Top Case w/ Keyboard and Battery 661-10345, 661-10347 for MacBook Pro 15-inch 2019
Display Assembly

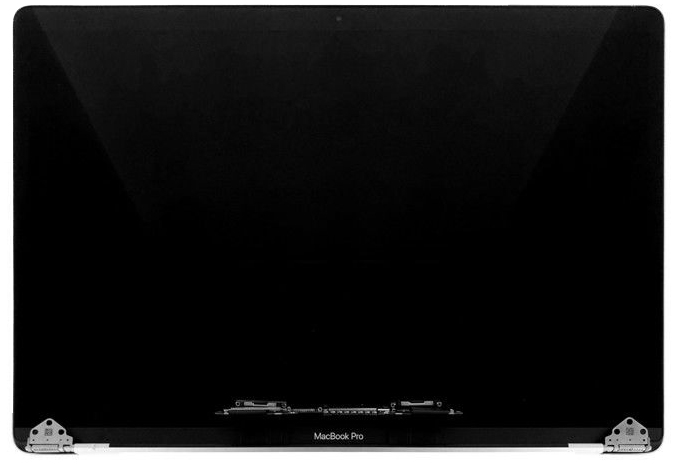

661-10355, 661-10356

Display Assembly 661-10355, 661-10356 for MacBook Pro 15-inch 2019
Clutch Cover, Left 923-01462 for MacBook Pro 15-inch 2019
Clutch Cover, Left
923-01462

Clutch Cover, Right 923-01463 for MacBook Pro 15-inch 2019
Clutch Cover, Right
923-01463

I/O Board (USB-C) (Right or Left) 923-02497 for MacBook Pro 15-inch 2019
I/O Board (USB-C) (Right or Left)
923-02497

Cowling, Display / LVDS / eDP Upper 923-01310 for MacBook Pro 15-inch 2019
Cowling, Display / LVDS / eDP Upper
923-01310

Cowling, I/O Board (USB-C) 923-02506 for MacBook Pro 15-inch 2019
Cowling, I/O Board (USB-C)
923-02506

Cowling, Touch Bar Display 923-02507 for MacBook Pro 15-inch 2019
Cowling, Touch Bar Display
923-02507

Touch ID and Audio Board Flex Cowling 923-01488 for MacBook Pro 15-inch 2019
Touch ID and Audio Board Flex Cowling
923-01488

Touch ID Top Module (Touch Bar Touch) Cowling 923-01490 for MacBook Pro 15-inch 2019
Touch ID Top Module (Touch Bar Touch) Cowling
923-01490

Cowling, eDP (Lower) 923-02504 for MacBook Pro 15-inch 2019
Cowling, eDP (Lower)
923-02504

DisplayPort (eDP) Flex Cable 923-02502 for MacBook Pro 15-inch 2019
DisplayPort (eDP) Flex Cable
923-02502

Cowling, Trackpad and Keyboard Flex 923-02508 for MacBook Pro 15-inch 2019
Cowling, Trackpad and Keyboard Flex
923-02508

Keyboard to Logic Board Flex Cable, ANSI/ISO 923-02494 for MacBook Pro 15-inch 2019
Keyboard to Logic Board Flex Cable, ANSI/ISO
923-02494

Touch ID Button Flexure 923-01740 for MacBook Pro 15-inch 2019
Touch ID Button Flexure
923-01740

Touch ID Button / Board 661-10344 for MacBook Pro 15-inch 2019
Touch ID Button / Board
661-10344

BMU Mylar Cover 923-02447 for MacBook Pro 15-inch 2019
BMU Mylar Cover
923-02447
