Exploded View iMac 27-inch Late 2012

iMac 27-inch Late 2012 - Exploded View

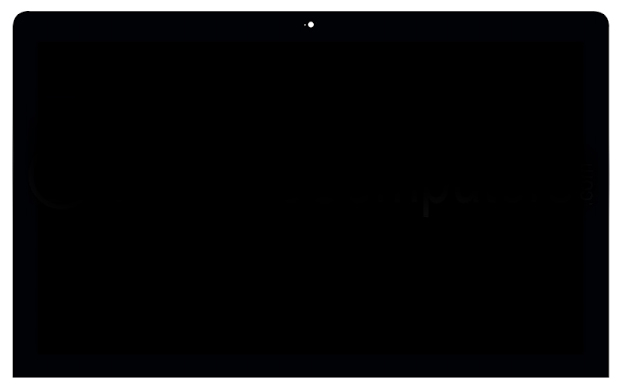

LCD Display Panel Assembly w/ Glass 2K
661-7169

LCD Display Panel Assembly w/ Glass 2K 661-7169 for iMac 27-inch Late 2012

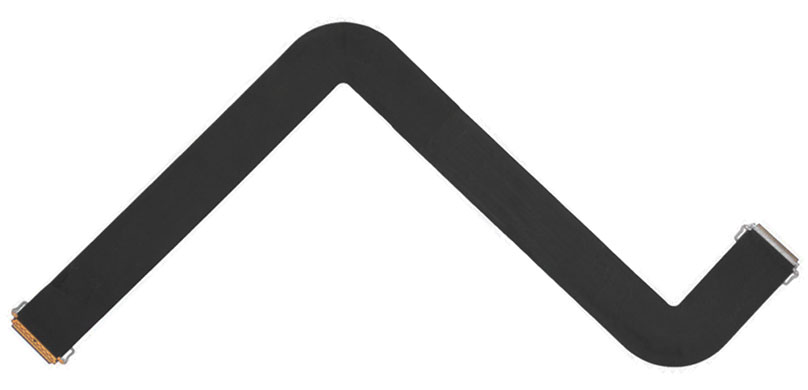

LCD Display / DisplayPort LVDS Cable
923-0308

LCD Display / DisplayPort LVDS Cable 923-0308 for iMac 27-inch Late 2012
Camera / Microphone Cable
923-0307

Camera / Microphone Cable 923-0307 for iMac 27-inch Late 2012
CPU Cooling Fan
923-0302

CPU Cooling Fan 923-0302 for iMac 27-inch Late 2012
Chin Strap
923-0368, 923-0528

Chin Strap 923-0368, 923-0528 for iMac 27-inch Late 2012

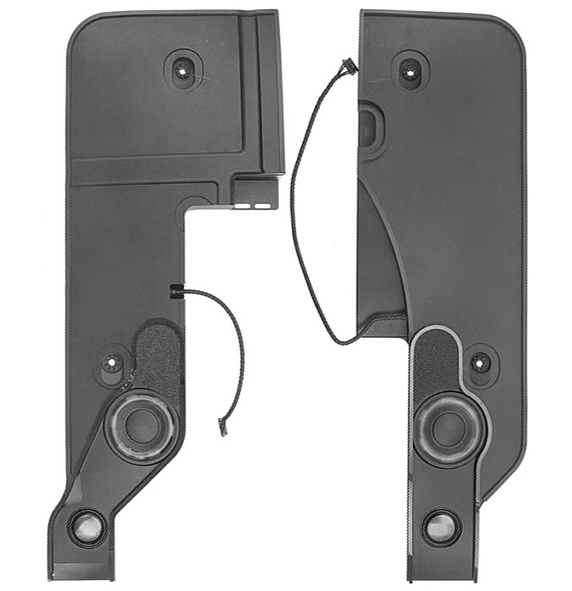

Speaker Set (Left and Right)
923-0300

Speaker Set (Left and Right) 923-0300 for iMac 27-inch Late 2012
Power Supply 300W
661-7170

Power Supply 300W 661-7170 for iMac 27-inch Late 2012

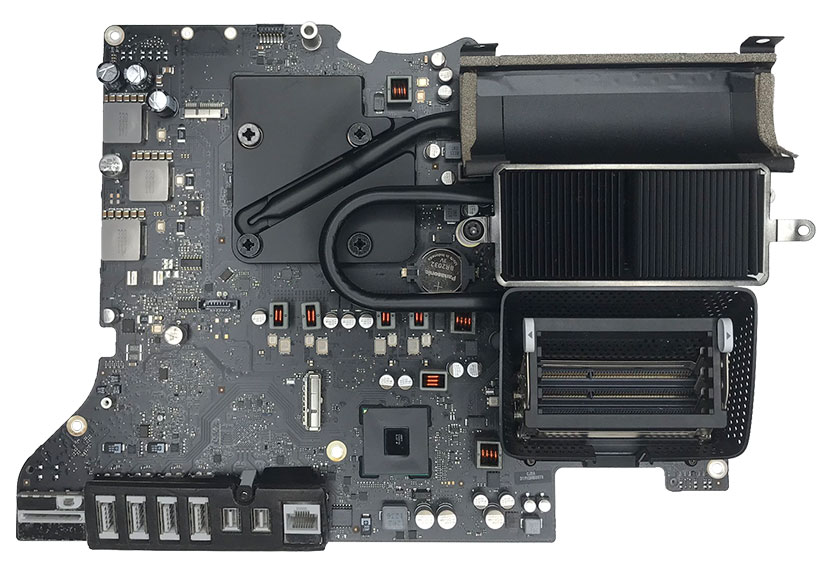

Logic Board
661-7156, 661-7157, 661-7158, 661-7159, 661-7160

Logic Board 661-7156, 661-7157, 661-7158, 661-7159, 661-7160 for iMac 27-inch Late 2012

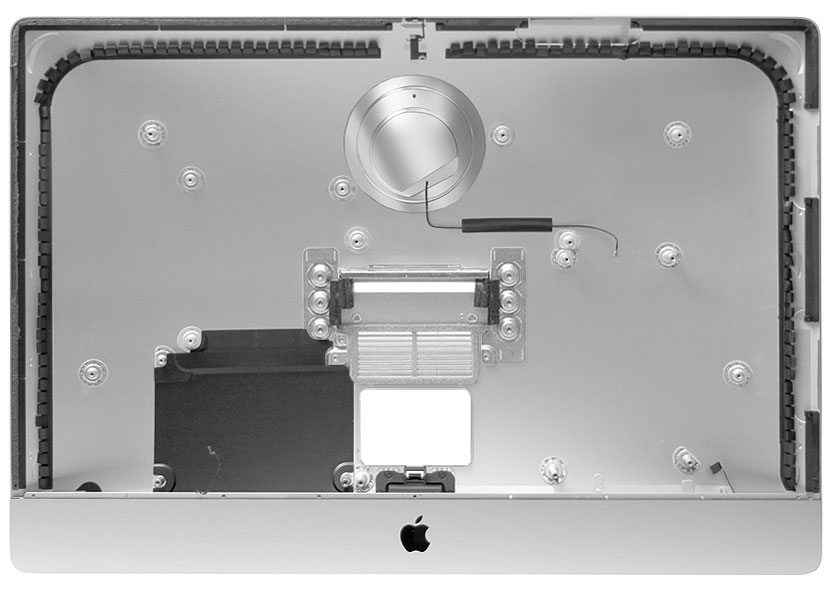

Rear Housing 9-Hole
923-0378, 923-0522

Rear Housing 9-Hole 923-0378, 923-0522 for iMac 27-inch Late 2012
Clutch/Hinge Mechanism
923-0313

Clutch/Hinge Mechanism 923-0313 for iMac 27-inch Late 2012
Stand
923-0299

Stand 923-0299 for iMac 27-inch Late 2012
Memory RAM Door/Cover 923-0403 for iMac 27-inch Late 2012
Memory RAM Door/Cover
923-0403

Display LCD Temperature Sensor Cable 923-0310 for iMac 27-inch Late 2012
Display LCD Temperature Sensor Cable
923-0310

Camera 923-0301 for iMac 27-inch Late 2012
Camera
923-0301

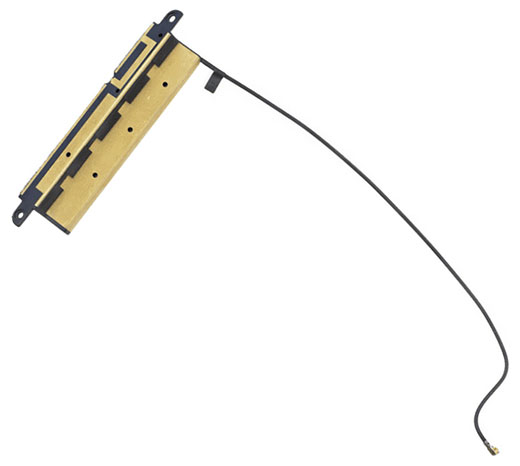

Bluetooth Antenna, Upper 923-0303 for iMac 27-inch Late 2012
Bluetooth Antenna, Upper
923-0303

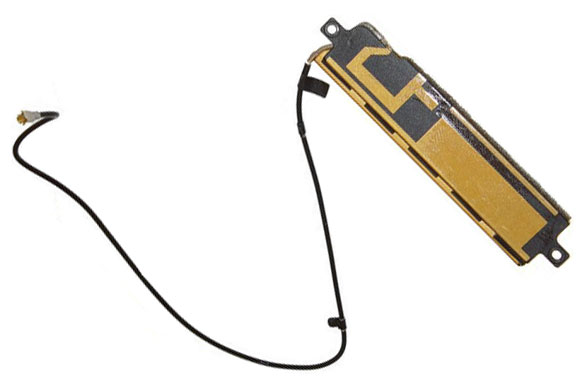

WiFi Antenna Middle 923-0305 for iMac 27-inch Late 2012
WiFi Antenna Middle
923-0305

WiFi Antenna Lower 923-0306 for iMac 27-inch Late 2012
WiFi Antenna Lower
923-0306

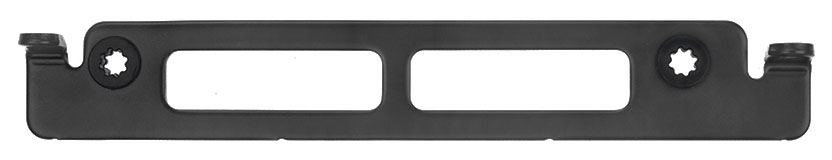

Hard Drive Bracket (Carrier Frame), Left 923-0374 for iMac 27-inch Late 2012
Hard Drive Bracket (Carrier Frame), Left
923-0374

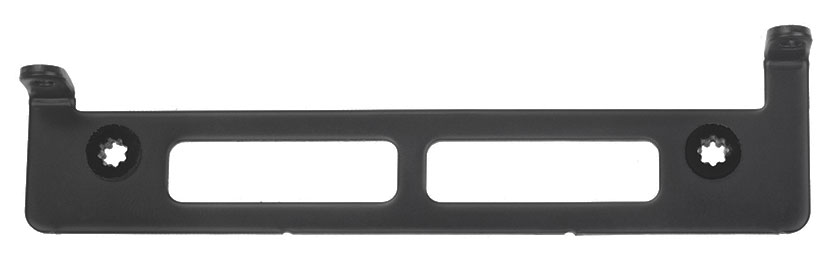

Hard Drive Bracket (Carrier Frame), Right 923-0375 for iMac 27-inch Late 2012
Hard Drive Bracket (Carrier Frame), Right
923-0375

Hard Drive SATA 661-7164, 661-7165 for iMac 27-inch Late 2012
Hard Drive SATA
661-7164, 661-7165

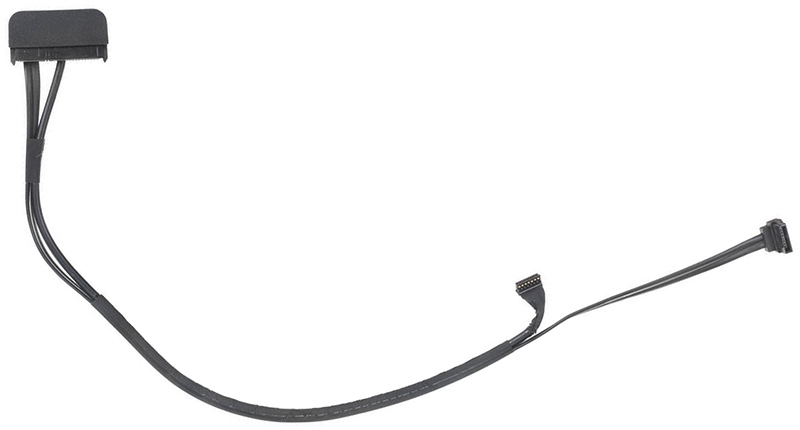

Hard Drive Data Power Cable, SATA 923-0312 for iMac 27-inch Late 2012
Hard Drive Data Power Cable, SATA
923-0312

Power Supply Signal Cable 923-0311 for iMac 27-inch Late 2012
Power Supply Signal Cable
923-0311

Memory DDR3 1600MHz / PC3-12800 661-6502, 661-7105, 661-7106 for iMac 27-inch Late 2012
Memory DDR3 1600MHz / PC3-12800
661-6502, 661-7105, 661-7106

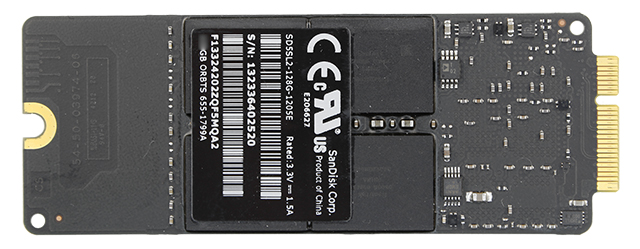

Solid State Drive (SSD) PCIe 661-7009, 661-7010, 661-7011, 661-7285 for iMac 27-inch Late 2012
Solid State Drive (SSD) PCIe
661-7009, 661-7010, 661-7011, 661-7285

Wireless (Airport/Bluetooth) Card 661-7110 for iMac 27-inch Late 2012
Wireless (Airport/Bluetooth) Card
661-7110

Memory/RAM Door Latch w/ Button 923-0402 for iMac 27-inch Late 2012
Memory/RAM Door Latch w/ Button
923-0402
