Exploded View iMac 21.5-inch Early 2013

iMac 21.5-inch Early 2013 - Exploded View



LCD Display Panel Assembly w/ Glass
661-7109

LCD Display Panel Assembly w/ Glass 661-7109 for iMac 21.5-inch Early 2013
Display / LVDS / eDP Cable
923-0281

Display / LVDS / eDP Cable 923-0281 for iMac 21.5-inch Early 2013
Camera / Microphone Flex Cable
923-0276

Camera / Microphone Flex Cable 923-0276 for iMac 21.5-inch Early 2013
Fan
923-0270

Fan 923-0270 for iMac 21.5-inch Early 2013
Hard Drive / Solid State SATA
661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026

Hard Drive / Solid State SATA 661-01029, 661-05338, 661-6041, 661-6042, 661-6044, 661-6046, 661-6500, 661-6591, 661-7024, 661-7026 for iMac 21.5-inch Early 2013
Chin Strap
923-0286

Chin Strap 923-0286 for iMac 21.5-inch Early 2013
Speaker Set (Left and Right)
923-0267

Speaker Set (Left and Right) 923-0267 for iMac 21.5-inch Early 2013
Power Supply Unit (PSU) 185W
661-7111

Power Supply Unit (PSU) 185W 661-7111 for iMac 21.5-inch Early 2013
Logic Board 3.3GHz i3
661-7417

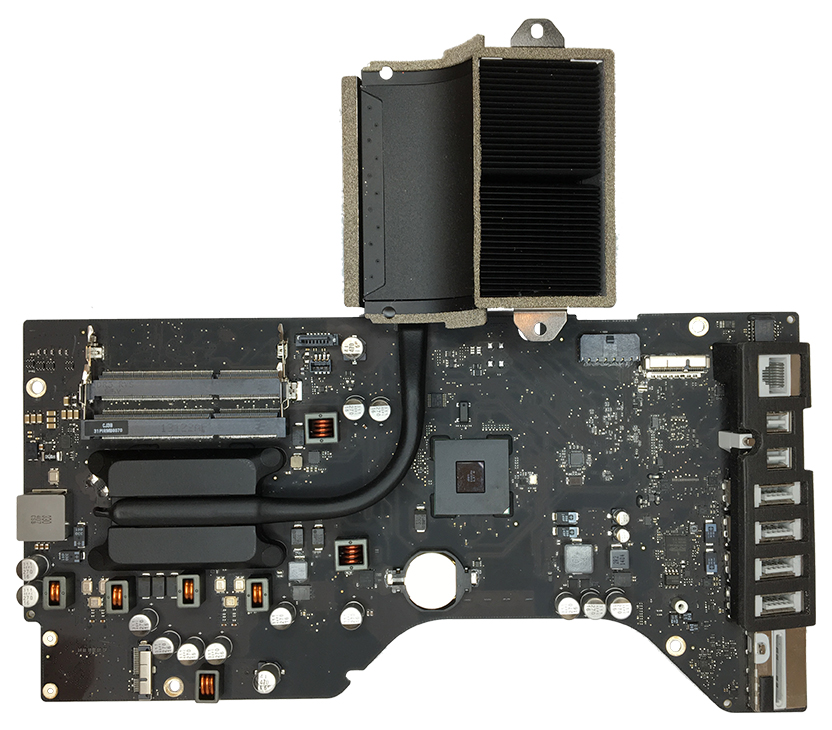

Logic Board 3.3GHz i3 661-7417 for iMac 21.5-inch Early 2013
Rear Housing
923-0265

Rear Housing 923-0265 for iMac 21.5-inch Early 2013
Stand / Leg
923-0266

Stand / Leg 923-0266 for iMac 21.5-inch Early 2013
Display / LCD Temperature Sensor Cable 923-0280 for iMac 21.5-inch Early 2013
Display / LCD Temperature Sensor Cable
923-0280

Camera / iSight 923-0269 for iMac 21.5-inch Early 2013
Camera / iSight
923-0269

Bluetooth / Wireless Antenna, Upper 923-0271 for iMac 21.5-inch Early 2013
Bluetooth / Wireless Antenna, Upper
923-0271

WiFi / Wireless Antenna, Middle 923-0273 for iMac 21.5-inch Early 2013
WiFi / Wireless Antenna, Middle
923-0273

WiFi / Wireless Antenna, Lower 923-0275 for iMac 21.5-inch Early 2013
WiFi / Wireless Antenna, Lower
923-0275

Hard Drive Lid / Bracket, Left 923-0365 for iMac 21.5-inch Early 2013
Hard Drive Lid / Bracket, Left
923-0365

Hard Drive Lid / Bracket, Right 923-0364 for iMac 21.5-inch Early 2013
Hard Drive Lid / Bracket, Right
923-0364

Hard Drive Cradle 923-0326 for iMac 21.5-inch Early 2013
Hard Drive Cradle
923-0326

Hard Drive Data Cable 923-0283 for iMac 21.5-inch Early 2013
Hard Drive Data Cable
923-0283

Hard Drive Power Cable 923-0282 for iMac 21.5-inch Early 2013
Hard Drive Power Cable
923-0282

Hard Drive Rubber Bumpers 076-1448 for iMac 21.5-inch Early 2013
Hard Drive Rubber Bumpers
076-1448

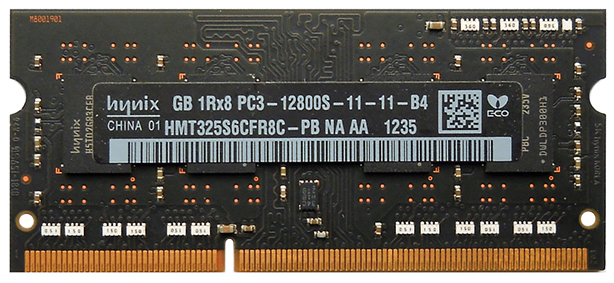

Memory DDR3 1600MHz / PC3-12800 661-6502, 661-7105, 661-7106 for iMac 21.5-inch Early 2013
Memory DDR3 1600MHz / PC3-12800
661-6502, 661-7105, 661-7106

Solid State Drive (SSD) PCIe 661-7009, 661-7010, 661-7011, 661-7285 for iMac 21.5-inch Early 2013
Solid State Drive (SSD) PCIe
661-7009, 661-7010, 661-7011, 661-7285

Wireless (Airport/Bluetooth) Card 661-7110 for iMac 21.5-inch Early 2013
Wireless (Airport/Bluetooth) Card
661-7110

Clutch Hinge Mechanism 923-00046 for iMac 21.5-inch Early 2013
Clutch Hinge Mechanism
923-00046
