Exploded View iMac Retina 5K 27-inch 2020

iMac Retina 5K 27-inch 2020 - Exploded View



CPU Cooling Fan
923-0302

CPU Cooling Fan 923-0302 for iMac Retina 5K 27-inch 2020
Power Supply 300W
661-7170

Power Supply 300W 661-7170 for iMac Retina 5K 27-inch 2020
Clutch/Hinge Mechanism
923-0313

Clutch/Hinge Mechanism 923-0313 for iMac Retina 5K 27-inch 2020
Stand
923-0299

Stand 923-0299 for iMac Retina 5K 27-inch 2020
Memory RAM Door/Cover 923-0403 for iMac Retina 5K 27-inch 2020
Memory RAM Door/Cover
923-0403

Display LCD Temperature Sensor Cable 923-0310 for iMac Retina 5K 27-inch 2020
Display LCD Temperature Sensor Cable
923-0310

Bluetooth Antenna 923-00665 for iMac Retina 5K 27-inch 2020
Bluetooth Antenna
923-00665

Wireless Antenna Middle 923-00667 for iMac Retina 5K 27-inch 2020
Wireless Antenna Middle
923-00667

Wireless Antenna Lower 923-00668 for iMac Retina 5K 27-inch 2020
Wireless Antenna Lower
923-00668

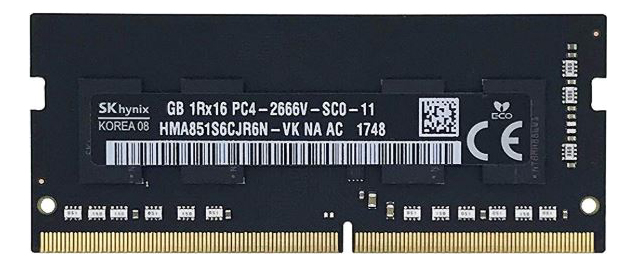

Memory DDR4 2666MHz 661-10239, 661-10240, 661-10241 for iMac Retina 5K 27-inch 2020
Memory DDR4 2666MHz
661-10239, 661-10240, 661-10241

Power Supply Signal Cable 923-0311 for iMac Retina 5K 27-inch 2020
Power Supply Signal Cable
923-0311
