Screws sold separately: bottom case screws (923-01098, 923-01095, 923-01100, 923-01097, 923-01099, 923-01299, 923-01181), standoffs (923-01302, 923-01874), BMU (923-01189).

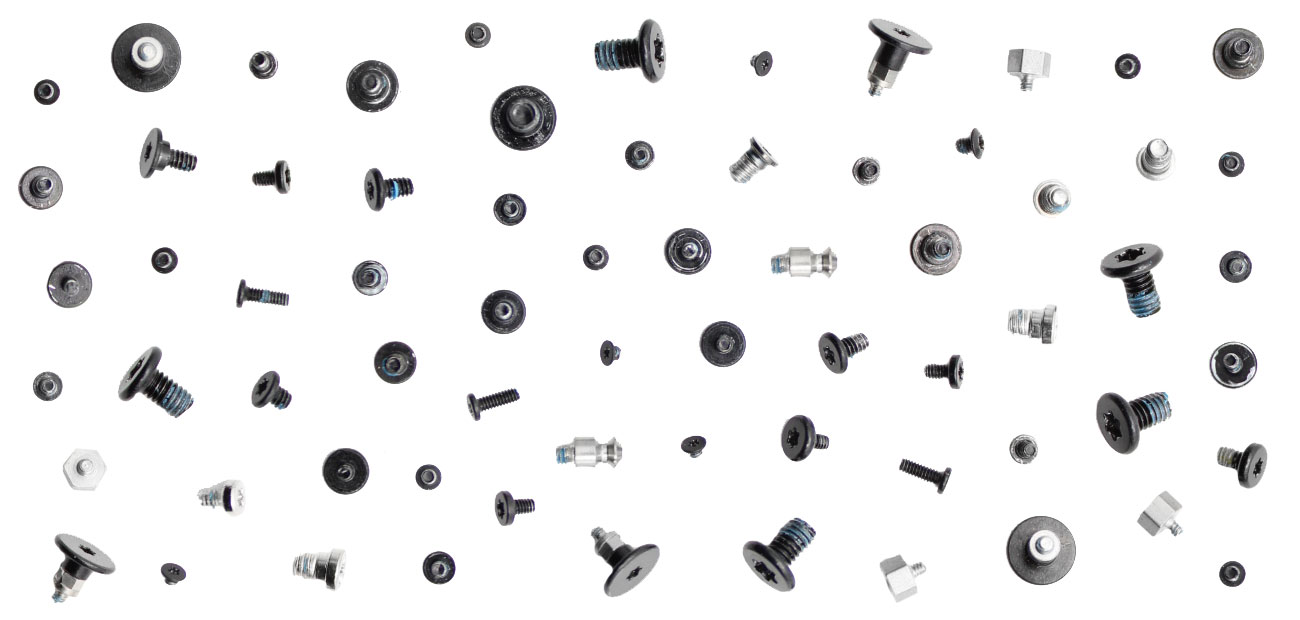

At least 90% of the screws shown on the table below are included in this set.
Part #
Description
Use / Location
923-01178
Screw, Speaker, Tall, Torx T5
Right Speaker (1)
Left Speaker (2)
923-01179
Screw, Speaker, Short, Torx T5
Right Speaker (2)
923-01182
Screw, Solid State Drive, Torx T5
Solid State Drive (SSD) (2)
923-01177
Screw, Lower, Cowling, Audio Flex Cable, Torx T5
Audio Flex Cable Cowling (lower / front) (1)
923-01285
Screw, eDP / TCON Upper Cowling, Torx T3
Display (eDP) Flex Cable Upper (rear) Cowling (2)
923-01277
Screw, TCON Board, Torx T5
TCON Cowling (inner screw) (2)
Audio Flex Cable Cowling (upper) (1)
923-01284
Screw, Lower Cowling, eDP Flex Cable, Torx T3
eDP Flex Cable Lower (inner) Cowling (2)
923-01281
Screw, Cowling, Track Pad, Torx T5
Trackpad Flex Cable Cowling (2)
923-01286
Screw, Display Clutch Cover, Torx T3
Display Hinge / Clutch Covers (left and right) (4)
923-01282
Screw, TCON, Shoulder, Outer, Torx T5
TCON Board (outer) (2)
923-01184
Screw, Antenna, Torx T5
Antenna Cables (1)
923-01191
Screw, Vent / Antenna Module, Pentalobe P2 (1IPR)
Vent / Antenna Module (security bit) (12)
923-01176
Screw, Logic Board, Thermal Tie Down, Torx T5
Heatsink to Logic Board (1)
923-01180
Screw, M1.2 x 0.25, Board, X520, Torx T5
Logic Board to Top Case (3)
923-01190
Screw, Cowling, TCON Flex, Torx T3
Display Cable (eDP) to Logic Board (2)
923-01276
Screw, Heatsink Springs, Torx T5
Heatsink Springs (4)
923-01174
Screw, Fan, Torx T5
Fan to Top Case (4)
923-01185
Screw, Spring Tensioner, Torx T3
Spring Tensioners (4)
923-01173
Screw, Display Assembly Clutch / Hinge, Torx T8
Display Clutch / Hinge to Top Case (6)
923-01279
Screw, Rear Wall, Torx T5
Rear Wall (center) (1)
923-01186
Screw, Rear Wall, Torx T8
Rear Wall (sides) (2)
923-01175
Screw, Torx T3, Audio Board Cowling
Audio Board to Top Case (2)
