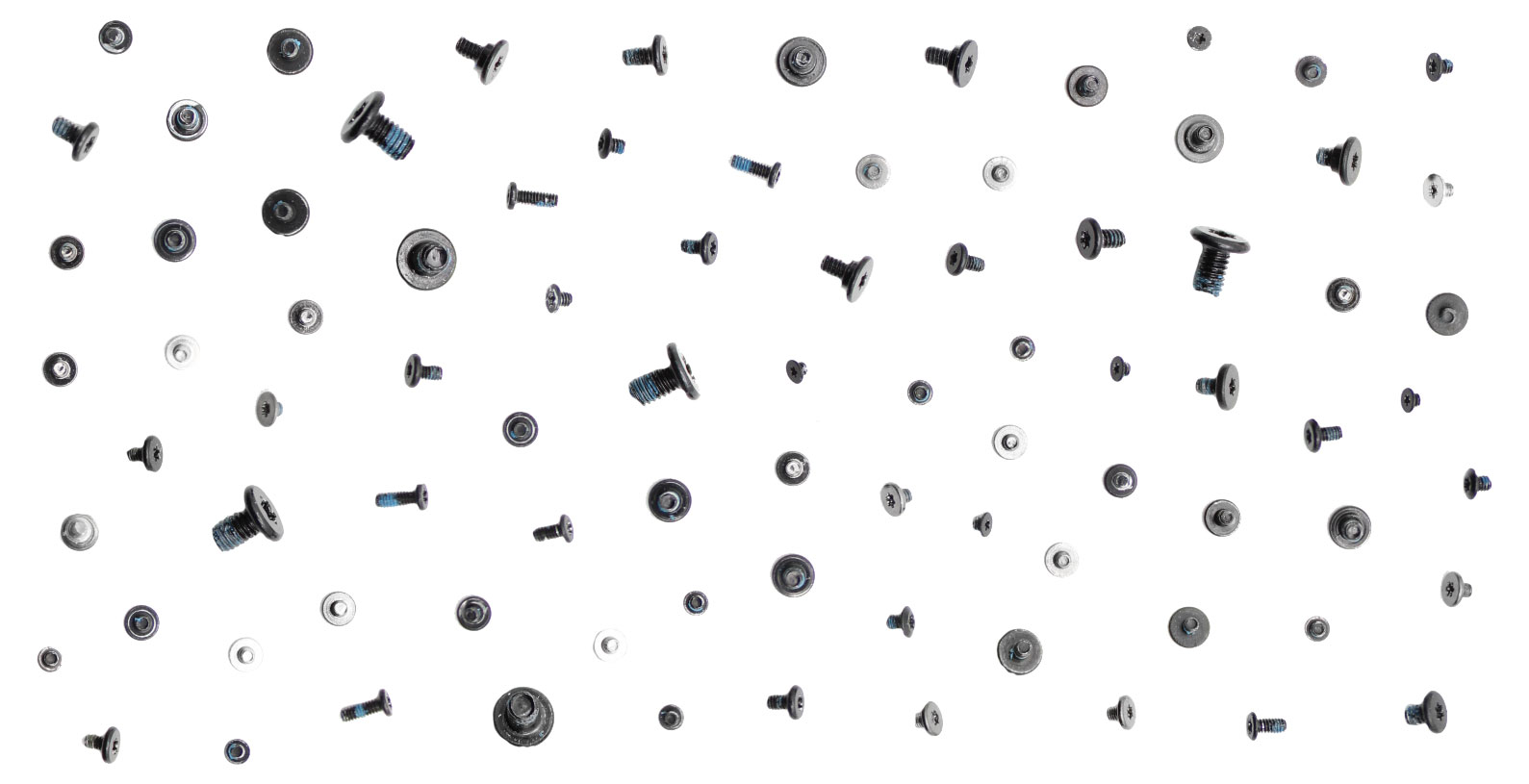

Screws Full Set/Kit, 70+ Pieces

Part #

Description

Use / Location

923-01286

Screw, Display Clutch Cover, Torx T3

Left Display Clutch Cover (2)
Right Display Clutch Cover (2)

923-01284

Screw, Lower Cowling, eDP Flex Cable, Torx T3

TCON Lower Cowling to Rear Wall (2)

923-01285

Screw, eDP / TCON Upper Cowling, Torx T3

Cowling TCON / eDP (2)

923-01277

Screw, TCON Board, Torx T5

TCON to Top Case (4)

923-01441

Screw, Cowling, Torx T5

I/O Board to Top Case (4)

923-01427

Screw, Logic Board, Torx T5

Logic Board (6)

923-01191

Screw, Vent / Antenna Module, Pentalobe P2 (1IPR)

Vent / Antenna Module (12)

923-01185

Screw, Spring Tensioner, Torx T3

Display Spring Tensioners to Rear Wall (4)

923-01173

Screw, Display Assembly Clutch / Hinge, Torx T8

Display Clutch / Hinge to Top Case (6)

923-01641

Screw, M1.2, Logic Board, Bottom Cowling, Torx T3

Audio Cable Cowling (2)
Track Pad Flex Cowling (2)
Keyboard Flex Cowling (2)
Data Migration Cowling (2)
Touch Bar Touch (1)
Touch Bar Display (2)

923-01411

Screw, I/O Cowling, Torx T3

I/O Board Cowling to Logic Board (4)

923-01425

Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder

Heatsink to Logic to Top Case (2)

923-01426

Screw, Logic Board, Torx T3

Logic Board (3)

923-01407

Screw, Shoulder, M1.6, Stage, X379, Torx T5

Heatsink (4)

923-01422

Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3

Display (eDP) Flex Cable Cowling (2)

923-01423

Screw, Fan, Black, Torx T3

Left Fan (4)
Right Fan (4)

923-01442

Screw, Touch ID, Torx T3, Black

Touch ID (inner screws) (2)

923-01443

Screw, Touch ID, Torx T3, Silver

Touch ID (outer screws) (4)
