Screws Charts iMac 21.5-inch Mid 2014

iMac 21.5-inch Mid 2014 - Screws Chart

923-0337 - Screws / Screw, Antenna to Rear Housing, Torx T4 for iMac 21.5-inch Mid 2014. Screw Location(s): Wireless Antenna Lower (2), Wireless Antenna Middle (2), Wireless Antenna Upper (2)
Wireless Antenna Lower (2)
Wireless Antenna Middle (2)
Wireless Antenna Upper (2)
923-0331 - Screws / Screw, M3 x 6.0mm, Torx T10 for iMac 21.5-inch Mid 2014. Screw Location(s): Logic Board (4), Hard Drive Cradle (1), Power Supply (2)
Logic Board (4)
Hard Drive Cradle (1)
Power Supply (2)
923-0333 - Screws / Screw, Shoulder, D4.0, H6, M3 x 4, Torx T10 for iMac 21.5-inch Mid 2014. Screw Location(s): Left Speaker (2), Right Speaker (2)
Left Speaker (2)
Right Speaker (2)

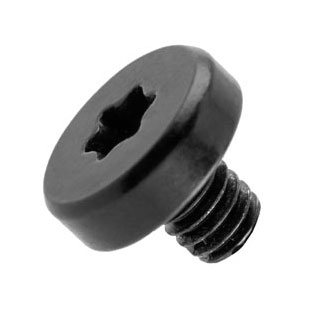

923-0336 - Screws / Screw, T8, 2.5mm x 3.0mm, Torx T10 for iMac 21.5-inch Mid 2014. Screw Location(s): Heatsink (Lower Finstack) (2)
Heatsink (Lower Finstack) (2)
923-0334 - Screws / Screw, Torx T10, Clutch Mechanism for iMac 21.5-inch Mid 2014. Screw Location(s): Clutch/Hinge Mechanism to Housing (4)
Clutch/Hinge Mechanism to Housing (4)
923-0417 - Screws / Screw, VESA Pentalobe for iMac 21.5-inch Mid 2014. Screw Location(s): VESA Mount Adapter / Bracket (2)
VESA Mount Adapter / Bracket (2)

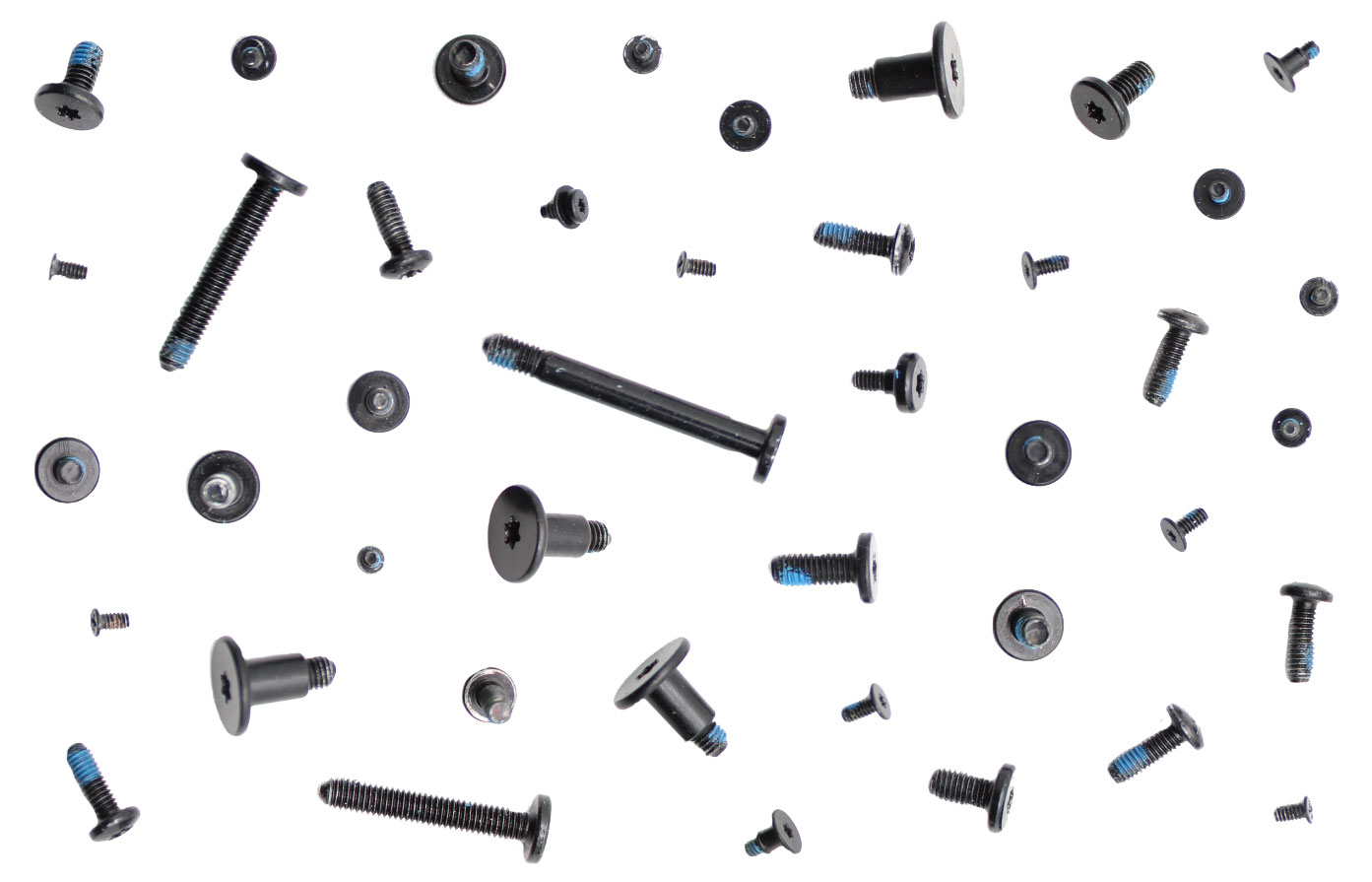

SCREWS FOR IMAC 21.5-INCH MID 2014 (18 items)WWW.MACRECYCLING.COM
