Screws Charts Mac Pro Late 2013

Mac Pro Late 2013 - Screws Chart

923-0710
Screw, Housing Lock Switch, Torx T5

Housing Lock Switch (6)

923-0715
Screw M2.5, Dogpoint, Torx T8

Solid State Drive (SSD) (1)

923-0713
Screw M3, NS, Torx T10

923-0713 - Screws / Screw M3, NS, Torx T10 for Mac Pro Late 2013. Screw Location(s): Inlet to Core (3), Inlet to I/O / PSU Assembly (2), Exhaust Assembly to Core (3), Exhaust Assembly to I/O / PSU Assembly (2),

Inlet to Core (3)
Inlet to I/O / PSU Assembly (2)
Exhaust Assembly to Core (3)
Exhaust Assembly to I/O / PSU Assembly (2)

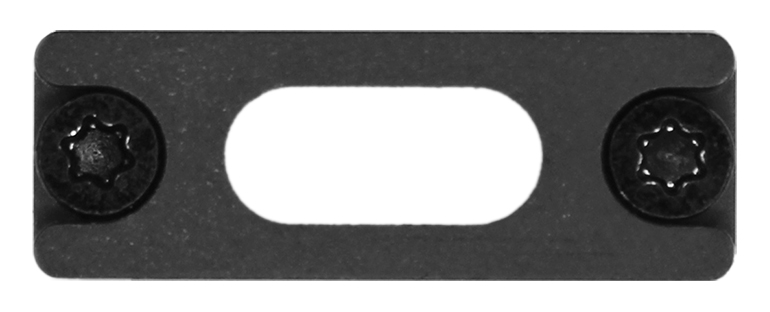

923-0692
Interposer Flex Cable Retaining Bracket w/ Screws

Interposer Flex Cable (1)

923-0711
Screw M2, 5.00, Torx T8

Logic Board to Core (2)

923-0709
Screw M2, 3.00, Torx T5

923-0709 - Screws / Screw M2, 3.00, Torx T5 for Mac Pro Late 2013. Screw Location(s): Interposer Board to Exhaust (3), Interposer Board Cover to Exhaust (3), Exhaust Manifold to Exhaust (3), Wi-Fi Antenna to Exhaust (3), Audio Jack to I/O Wall (3)

Interposer Board to Exhaust (3)
Interposer Board Cover to Exhaust (3)
Exhaust Manifold to Exhaust (3)
Wi-Fi Antenna to Exhaust (3)
Audio Jack to I/O Wall (3)

923-0725
Screw M1.6, 1.75, Torx T5

Wireless Card to Interposer Board (2)

923-0724
Screw M3, 3.0, Shoulder, Torx T10

Fan to Exhaust (3)

923-0728
Screw M1.6, Wafer Head, Torx T5

Interposer Board Cable to Exhaust (2)

923-0714
Screw M1.6, Power Supply Cover, Torx T5

Power Supply to Cover (2)

923-0712
Screw M3, Dogpoint, Short, Torx T8

Bus Bars to CPU Riser Card (2)
Bus Bars to Power Supply (4)

923-0717
Screw M3, Power Supply, Torx T10

I/O Board to I/O Wall (2)
Power Supply to I/O Board (4)

923-0726
Screw M2, 2.50, Torx T5

Bluetooth Antenna to I/O Wall (4)
Speaker to I/O Board (2)

923-0727
Screw M2 w/ Washer, AC Inlet, Torx T5

AC Inlet to I/O Wall (4)

923-0716
Screw M3, No Dogpoint, 0.35, w/ Washer, Bus Bar, Torx T8

923-0716 - Screws / Screw M3, No Dogpoint, 0.35, w/ Washer, Bus Bar, Torx T8 for Mac Pro Late 2013. Screw Location(s): Bus Bar A to Graphics Board A (2), Bus Bar B to Graphics Board B (2)

Bus Bar A to Graphics Board A (2)
Bus Bar B to Graphics Board B (2)

923-0708
Screw M3, Shoulder, 4.15, Torx T10

Graphics Board A to Core (4)
Graphics Board B to Core (4)

923-0707
Screw M3, Shoulder, 6.0, Torx T10

CPU Riser Card to Core (4)

923-0693
Core Standoff

Logic Board Stand-offs to Core (2)

923-0689
Standoff 1/4-inch Hex Nut, CPU Riser Card

Thermal core to CPU riser card (4)

923-0690
Video/Graphics Board Standoff

923-0690 - Screws / Video/Graphics Board Standoff for Mac Pro Late 2013. Screw Location(s): Thermal Core to Graphics Card A (4), Thermal Core to Graphics Card B (4)

Thermal Core to Graphics Card A (4)
Thermal Core to Graphics Card B (4)

923-01314
Screw, Memory (DIMM) Mechanism, Torx T5

Memory (DIMM) Mechanism to CPU Riser Card (8)
