MacBook Retina 12-inch Early 2016 - Screws Chart

923-00472
Screw, Mushroom, Side Snap, Torx T3

923-00472 - Screws / Screw, Mushroom, Side Snap, Torx T3 for MacBook Retina 12-inch Early 2016. Screw Location(s): Secures Bottom Case to Top Case (snap) (2)

Secures Bottom Case to Top Case (snap) (2)

999-0016

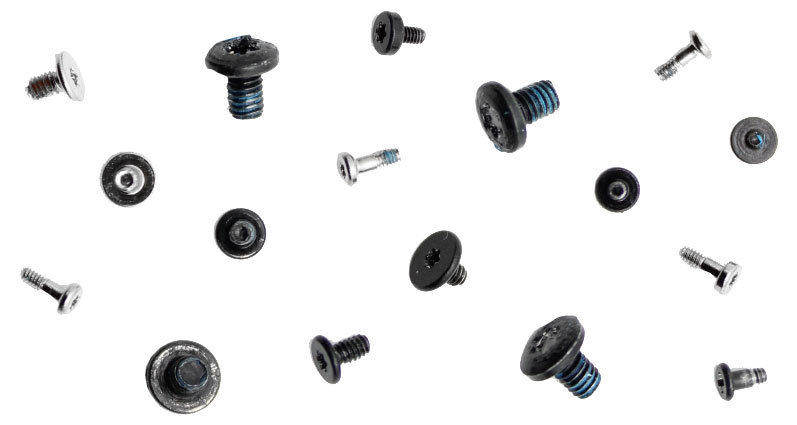

Screws Full Set/Kit, 18+ Pieces

999-0016 - Screws / Screws Full Set/Kit, 18+ Pieces for MacBook Retina 12-inch Early 2016. Screw Location(s):

923-00430
Screw, Long, Pentalobe, Bottom Case, Space Gray

923-00430 - Screws / Screw, Long, Pentalobe, Bottom Case, Space Gray for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-01038
Screw, Long, Pentalobe, Bottom Case, Rose Gold

923-01038 - Screws / Screw, Long, Pentalobe, Bottom Case, Rose Gold for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-00409
Screw, Long, Pentalobe, Bottom Case, Gold

923-00409 - Screws / Screw, Long, Pentalobe, Bottom Case, Gold for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-00414
Screw, Long, Pentalobe, Bottom Case, Silver

923-00414 - Screws / Screw, Long, Pentalobe, Bottom Case, Silver for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-01039
Screw, Short, Pentalobe, Bottom Case, Rose Gold

923-01039 - Screws / Screw, Short, Pentalobe, Bottom Case, Rose Gold for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-00427
Screw, Short, Pentalobe, Bottom Case, Gold

923-00427 - Screws / Screw, Short, Pentalobe, Bottom Case, Gold for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-00415
Screw, Short, Pentalobe, Bottom Case, Silver

923-00415 - Screws / Screw, Short, Pentalobe, Bottom Case, Silver for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-00431
Screw, Short, Pentalobe, Bottom Case, Space Gray

923-00431 - Screws / Screw, Short, Pentalobe, Bottom Case, Space Gray for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (2)

Bottom Case (2)

923-00432
Screw, Medium, Pentalobe, Bottom Case, Space Gray

923-00432 - Screws / Screw, Medium, Pentalobe, Bottom Case, Space Gray for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (4)

Bottom Case (4)

923-00406
Screw, Medium, Pentalobe, Bottom Case, Gold

923-00406 - Screws / Screw, Medium, Pentalobe, Bottom Case, Gold for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (4)

Bottom Case (4)

923-01040
Screw, Medium, Pentalobe, Bottom Case, Rose Gold

923-01040 - Screws / Screw, Medium, Pentalobe, Bottom Case, Rose Gold for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (4)

Bottom Case (4)

923-00416
Screw, Medium, Pentalobe, Bottom Case, Silver

923-00416 - Screws / Screw, Medium, Pentalobe, Bottom Case, Silver for MacBook Retina 12-inch Early 2016. Screw Location(s): Bottom Case (4)

Bottom Case (4)

923-00417

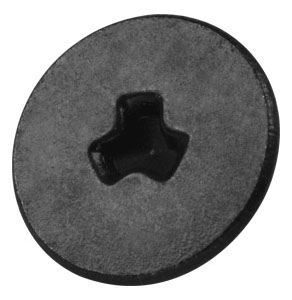

Screw, Trilobe 000 or Phillips 000, M1.2

923-00417 - Screws / Screw, Trilobe 000 or Phillips 000, M1.2 for MacBook Retina 12-inch Early 2016. Screw Location(s): I/O board flex cable (outer) to logic board (1)

I/O board flex cable (outer) to logic board (1)

923-00419
Screw, M1.6, Torx T5

923-00419 - Screws / Screw, M1.6, Torx T5 for MacBook Retina 12-inch Early 2016. Screw Location(s): Logic Board to Bottom Case (1), I/O Board Flex Cable (front) to Logic Board (1)

Logic Board to Bottom Case (1)
I/O Board Flex Cable (front) to Logic Board (1)

923-00421
Screw, Torx T5

923-00421 - Screws / Screw, Torx T5 for MacBook Retina 12-inch Early 2016. Screw Location(s): Audio Board to Top Case (2)

Audio Board to Top Case (2)

923-01009
Screw, I/O Board, Phillips 000

923-01009 - Screws / Screw, I/O Board, Phillips 000 for MacBook Retina 12-inch Early 2016. Screw Location(s): I/O Board and Flex Cable Assembly (2)

I/O Board and Flex Cable Assembly (2)

923-01015
Screw, TCON Board

923-01015 - Screws / Screw, TCON Board for MacBook Retina 12-inch Early 2016. Screw Location(s): Timing controller (TCON) board (2)

Timing controller (TCON) board (2)

923-00426
Screw, M2.5, Torx T8

923-00426 - Screws / Screw, M2.5, Torx T8 for MacBook Retina 12-inch Early 2016. Screw Location(s): Display Assembly Clutch (4)

Display Assembly Clutch (4)

923-00425
Screw, M1.6, Torx T5, Ground Clip

923-00425 - Screws / Screw, M1.6, Torx T5, Ground Clip for MacBook Retina 12-inch Early 2016. Screw Location(s): Logic Board to Bottom Case (inner) (1)

Logic Board to Bottom Case (inner) (1)

923-01013
Screw, Speaker/Antenna Module

923-01013 - Screws / Screw, Speaker/Antenna Module for MacBook Retina 12-inch Early 2016. Screw Location(s): Speaker/Antenna Module to Bottom Case (4)

Speaker/Antenna Module to Bottom Case (4)

923-00472 Screw, Mushroom, Side Snap, Torx T3 Secures Bottom Case to Top Case (snap) (2)	999-0016 Screws Full Set/Kit, 18+ Pieces	923-00430 Screw, Long, Pentalobe, Bottom Case, Space Gray Bottom Case (2)
923-01038 Screw, Long, Pentalobe, Bottom Case, Rose Gold Bottom Case (2)	923-00409 Screw, Long, Pentalobe, Bottom Case, Gold Bottom Case (2)	923-00414 Screw, Long, Pentalobe, Bottom Case, Silver Bottom Case (2)
923-01039 Screw, Short, Pentalobe, Bottom Case, Rose Gold Bottom Case (2)	923-00427 Screw, Short, Pentalobe, Bottom Case, Gold Bottom Case (2)	923-00415 Screw, Short, Pentalobe, Bottom Case, Silver Bottom Case (2)
923-00431 Screw, Short, Pentalobe, Bottom Case, Space Gray Bottom Case (2)	923-00432 Screw, Medium, Pentalobe, Bottom Case, Space Gray Bottom Case (4)	923-00406 Screw, Medium, Pentalobe, Bottom Case, Gold Bottom Case (4)
923-01040 Screw, Medium, Pentalobe, Bottom Case, Rose Gold Bottom Case (4)	923-00416 Screw, Medium, Pentalobe, Bottom Case, Silver Bottom Case (4)	923-00417 Screw, Trilobe 000 or Phillips 000, M1.2 I/O board flex cable (outer) to logic board (1)
923-00419 Screw, M1.6, Torx T5 Logic Board to Bottom Case (1) I/O Board Flex Cable (front) to Logic Board (1)	923-00421 Screw, Torx T5 Audio Board to Top Case (2)	923-01009 Screw, I/O Board, Phillips 000 I/O Board and Flex Cable Assembly (2)
923-01015 Screw, TCON Board Timing controller (TCON) board (2)	923-00426 Screw, M2.5, Torx T8 Display Assembly Clutch (4)	923-00425 Screw, M1.6, Torx T5, Ground Clip Logic Board to Bottom Case (inner) (1)
923-01013 Screw, Speaker/Antenna Module Speaker/Antenna Module to Bottom Case (4)
