Screws Charts MacBook Air 13-inch Early 2014

MacBook Air 13-inch Early 2014 - Screws Chart

922-9653
Screw, M1.6 x 1.8, H2.8, Torx T5

922-9653 - Screws / Screw, M1.6 x 1.8, H2.8, Torx T5 for MacBook Air 13-inch Early 2014. Screw Location(s): Heatsink to Logic Board (4)

Heatsink to Logic Board (4)

922-9652
Screw, Torx T8, M2.5 x 4.1,H5.2

922-9652 - Screws / Screw, Torx T8, M2.5 x 4.1,H5.2 for MacBook Air 13-inch Early 2014. Screw Location(s): Display Clutch Hinge (6)

Display Clutch Hinge (6)

922-9654
Screw, Torx T5, Battery

922-9654 - Screws / Screw, Torx T5, Battery for MacBook Air 13-inch Early 2014. Screw Location(s): Battery (center) (1)

Battery (center) (1)

922-9655
Screw, Torx T5, M1.6 x 2.4,H3.0

922-9655 - Screws / Screw, Torx T5, M1.6 x 2.4,H3.0 for MacBook Air 13-inch Early 2014. Screw Location(s): Heatsink to Top Case (1), Battery (front corners) (2)

Heatsink to Top Case (1)
Battery (front corners) (2)

922-9656
Screw, Torx T5, M1.6 x 3.3,H3.2

922-9656 - Screws / Screw, Torx T5, M1.6 x 3.3,H3.2 for MacBook Air 13-inch Early 2014. Screw Location(s): Logic Board (6), I/O Board (1)

Logic Board (6)
I/O Board (1)

922-9657
Screw, Torx T5, M1.6 x 4.1,H3.2

922-9657 - Screws / Screw, Torx T5, M1.6 x 4.1,H3.2 for MacBook Air 13-inch Early 2014. Screw Location(s): Fan (under I/O Cable) (1)

Fan (under I/O Cable) (1)

922-9658
Screw, M1.2 x 0.25 x 1.40, Black, Phillips 000

922-9658 - Screws / Screw, M1.2 x 0.25 x 1.40, Black, Phillips 000 for MacBook Air 13-inch Early 2014. Screw Location(s): Trackpad Flexure (12)

Trackpad Flexure (12)

922-9660
Screw, M1.6 x 0.35P, 2.7mm, Torx T5

922-9660 - Screws / Screw, M1.6 x 0.35P, 2.7mm, Torx T5 for MacBook Air 13-inch Early 2014. Screw Location(s): Fan to I/O Board (1)

Fan to I/O Board (1)

922-9661
Screw, Torx T5

922-9661 - Screws / Screw, Torx T5 for MacBook Air 13-inch Early 2014. Screw Location(s): Fan to Logic Board (1)

Fan to Logic Board (1)

922-9732
Screw, Trackpad, Torx T5

922-9732 - Screws / Screw, Trackpad, Torx T5 for MacBook Air 13-inch Early 2014. Screw Location(s): Trackpad (set screw) (1)

Trackpad (set screw) (1)

922-9755
Screw, Pentalobe P5, Long, Bottom Case

922-9755 - Screws / Screw, Pentalobe P5, Long, Bottom Case for MacBook Air 13-inch Early 2014. Screw Location(s): Bottom Case (2)

Bottom Case (2)

922-9969
Screw, Torx T5, Battery

922-9969 - Screws / Screw, Torx T5, Battery for MacBook Air 13-inch Early 2014. Screw Location(s): Battery (rear corners) (2)

Battery (rear corners) (2)

923-0122
Screw, Pentalobe P5, Short, Bottom Case

923-0122 - Screws / Screw, Pentalobe P5, Short, Bottom Case for MacBook Air 13-inch Early 2014. Screw Location(s): Bottom Case (8)

Bottom Case (8)

922-9651
Screw, 2 x 2mm, Torx T5

922-9651 - Screws / Screw, 2 x 2mm, Torx T5 for MacBook Air 13-inch Early 2014. Screw Location(s): Solid State Drive (1), Wireless Card (1)

Solid State Drive (1)
Wireless Card (1)

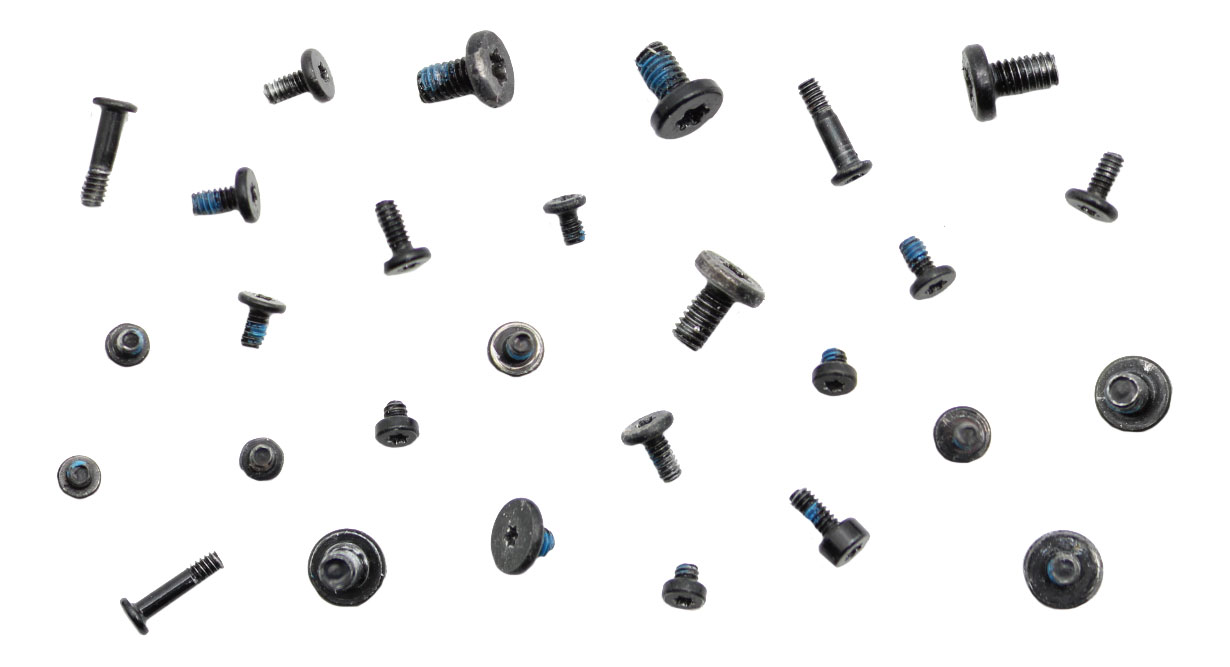

999-0005
Screws Full Set/Kit, 34+ Pieces

999-0005 - Screws / Screws Full Set/Kit, 34+ Pieces for MacBook Air 13-inch Early 2014. Screw Location(s):

922-9653 Screw, M1.6 x 1.8, H2.8, Torx T5 Heatsink to Logic Board (4)	922-9652 Screw, Torx T8, M2.5 x 4.1,H5.2 Display Clutch Hinge (6)	922-9654 Screw, Torx T5, Battery Battery (center) (1)
922-9655 Screw, Torx T5, M1.6 x 2.4,H3.0 Heatsink to Top Case (1) Battery (front corners) (2)	922-9656 Screw, Torx T5, M1.6 x 3.3,H3.2 Logic Board (6) I/O Board (1)	922-9657 Screw, Torx T5, M1.6 x 4.1,H3.2 Fan (under I/O Cable) (1)
922-9658 Screw, M1.2 x 0.25 x 1.40, Black, Phillips 000 Trackpad Flexure (12)	922-9660 Screw, M1.6 x 0.35P, 2.7mm, Torx T5 Fan to I/O Board (1)	922-9661 Screw, Torx T5 Fan to Logic Board (1)
922-9732 Screw, Trackpad, Torx T5 Trackpad (set screw) (1)	922-9755 Screw, Pentalobe P5, Long, Bottom Case Bottom Case (2)	922-9969 Screw, Torx T5, Battery Battery (rear corners) (2)
923-0122 Screw, Pentalobe P5, Short, Bottom Case Bottom Case (8)	922-9651 Screw, 2 x 2mm, Torx T5 Solid State Drive (1) Wireless Card (1)	999-0005 Screws Full Set/Kit, 34+ Pieces
