MacBook Pro Retina 13-inch Early 2015 - Screws Chart

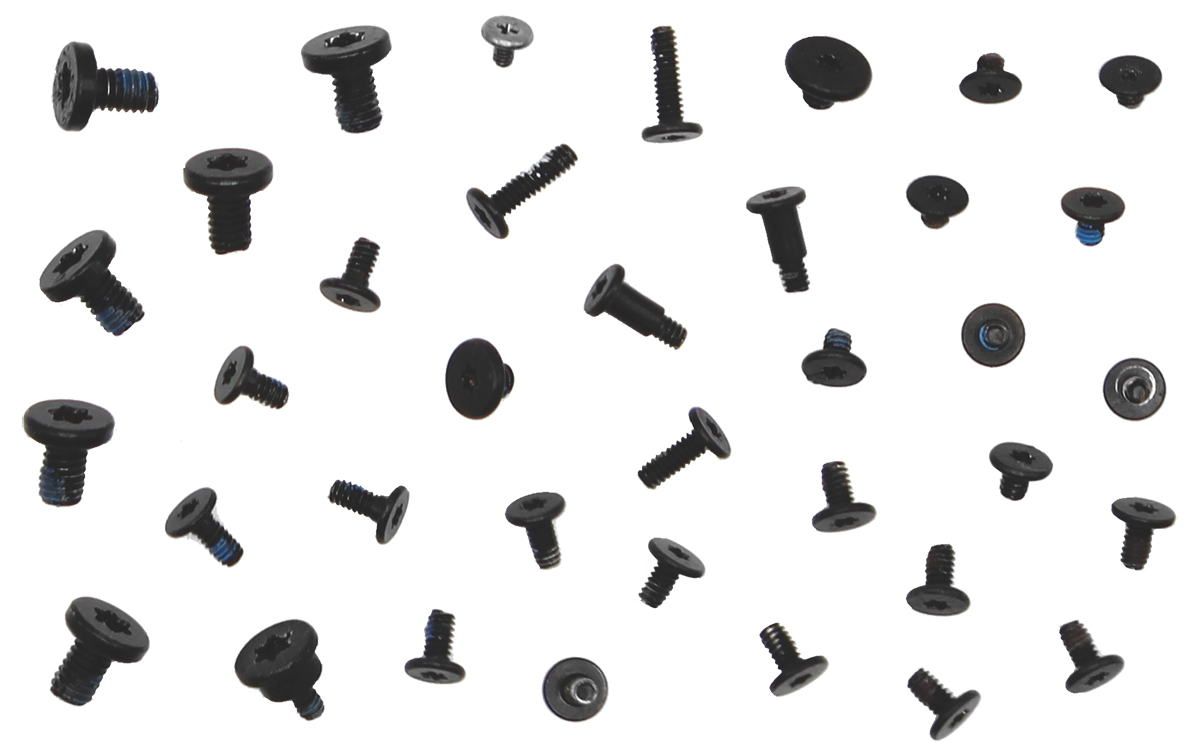

999-0001
Screws Full Set/Kit, 32+ Pieces

923-0132
Screw, Pentalobe P5

Bottom Case (2)

923-0645
Screw, Shoulder, Pentalobe P5, Bottom Case

Bottom Case (8)

923-0649
Screw, Torx T5, 3.1 x 1.6

I/O Flex Cable (Clip) (4)

923-0647
Screw, Short, Speaker, 1.6 mm, Torx T5

Left Speaker (corner) (1)
Right Speaker (corner) (1)

923-0651
Screw, Speaker, 1.6 mm, Torx T5

Left Speaker (front) (1)
Right Speaker (front) (1)

923-0644
Screw, Torx T5, 6.75mm

Left Speaker (rear) (1)
Right Speaker (rear) (1)

923-0314
Screw, Torx T5

Wireless Card (1)

922-9651
Screw, 2 x 2mm, Torx T5

Solid State Drive (SSD) (1)

923-0235
Screw 1.6 x 3.6 mm, Torx T5, Black

Logic Board (5)
MagSafe Board (2)
I/O Board (near cable) (1)

923-0238
Screw M1.2 x 3.0, Phillips 00

Heatsink (near I/O board) (1)

923-00522
Screw 1.6 x 1.8 mm, Torx T5

Heatsink (center) (4)

923-0646
Screw 1.6 x 3.1 mm, Torx T5, Black

Fan (front and inner side) (2)

923-00109
Screw 1.6 x 4.5 mm, Torx T5, Black

Fan (outer side) (1)

923-0237
Screw, Standoff, Torx T8, Shoulder, Black

I/O Board (1)

923-0650
Screw 1.6 x 3.6 mm, Torx T5, Black

Display End Caps (2)

923-0139
Screw, 2.5 x 3.9 mm, Torx T8, Black

Display Assembly Clutches (6)
