Screws Charts MacBook Pro 15-inch 2018

MacBook Pro 15-inch 2018 - Screws Chart

999-0009

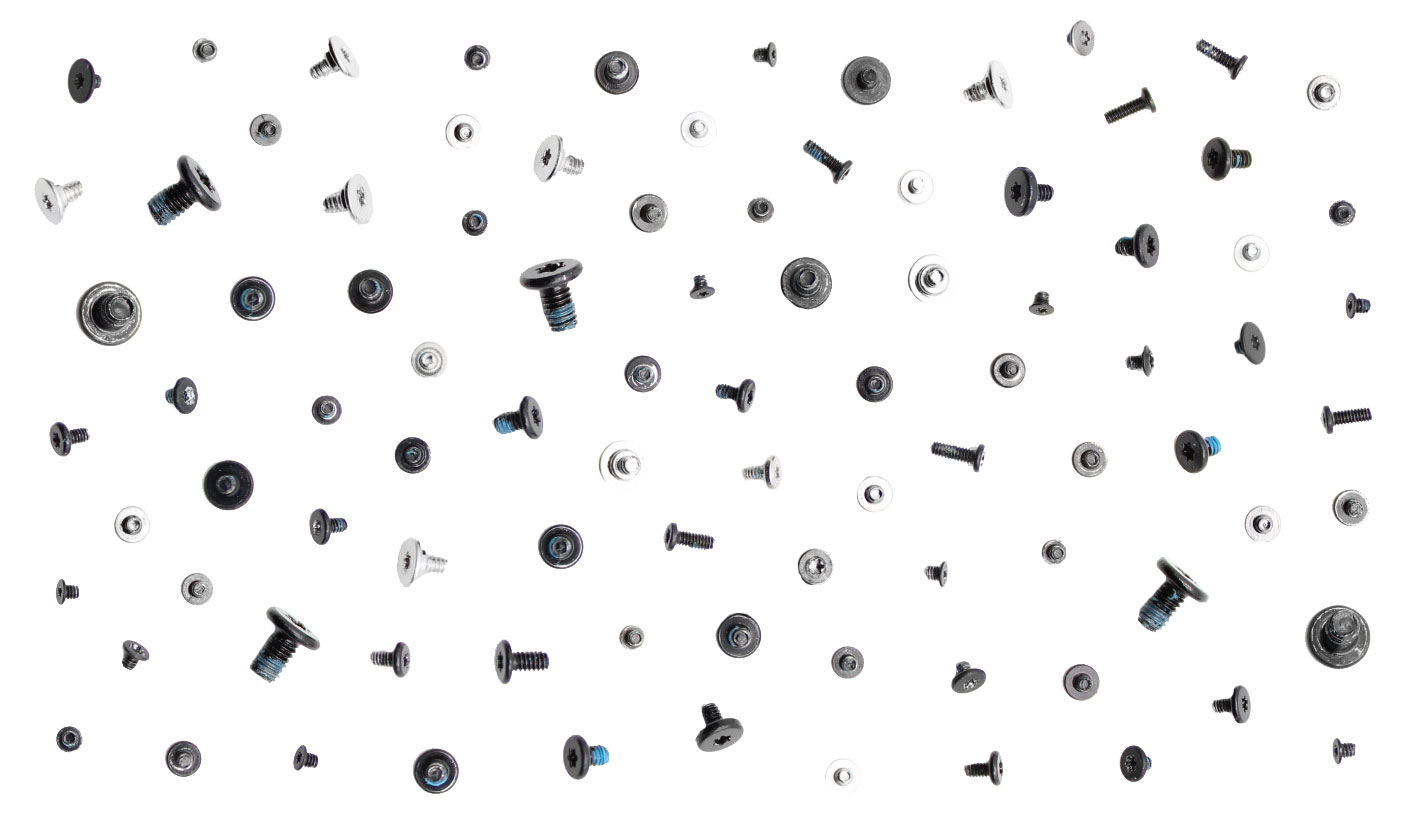

Screws Full Set/Kit, 82+ Pieces

999-0009 - Screws / Screws Full Set/Kit, 82+ Pieces for MacBook Pro 15-inch 2018. Screw Location(s):

923-02513
Screw, I/O Board Cowling, Torx T3

923-02513 - Screws / Screw, I/O Board Cowling, Torx T3 for MacBook Pro 15-inch 2018. Screw Location(s):

923-01516
Screw, Pentalobe P5, Bottom Case, Silver

Bottom Case (front) (4)

923-01513
Screw, Pentalobe P5, Bottom Case, Space Gray

Bottom Case (front) (4)

923-01517
Screw, Pentalobe P5, Bottom Case, Shoulder, Silver

Bottom Case (rear corners) (2)

923-01514
Screw, Pentalobe P5, Bottom Case, Shoulder, Space Gray

Bottom Case (rear corners) (2)

923-01418
Screw, M1.6, Flex, BMU, X379, Torx T5

BMU Screw (1)

923-01286
Screw, Display Clutch Cover, Torx T3

923-01286 - Screws / Screw, Display Clutch Cover, Torx T3 for MacBook Pro 15-inch 2018. Screw Location(s): Display Left Clutch Covers (2), Display Right Clutch Covers (2)

Display Left Clutch Covers (2)
Display Right Clutch Covers (2)

923-01506
Screw, Touch ID and Audio Board Flex Cable, Cowling, Torx T3

923-01506 - Screws / Screw, Touch ID and Audio Board Flex Cable, Cowling, Torx T3 for MacBook Pro 15-inch 2018. Screw Location(s): Touch ID and Audio Board Flex Cowling (2)

Touch ID and Audio Board Flex Cowling (2)

923-01501
Screw, Trackpad, Keyboard, Touch Bar Display, Cowling, Torx T3

923-01501 - Screws / Screw, Trackpad, Keyboard, Touch Bar Display, Cowling, Torx T3 for MacBook Pro 15-inch 2018. Screw Location(s): Trackpad / Keyboard Flex Cable Cowling (2), Touch Bar Display Flex Cable Cowling (2)

Trackpad / Keyboard Flex Cable Cowling (2)
Touch Bar Display Flex Cable Cowling (2)

923-01510
Screw, eDP, Lower Cowling, Torx T3

eDP Flex Cable Lower Cowling (2)

923-01500
Screw, Fan, Torx T3

923-01500 - Screws / Screw, Fan, Torx T3 for MacBook Pro 15-inch 2018. Screw Location(s): Logic Board to Left Fan (1 x antenna grounding) (3), Logic Board to Right Fan (3)

Logic Board to Left Fan (1 x antenna grounding) (3)
Logic Board to Right Fan (3)

923-01497
Screw, Logic Board, Torx T3

Logic Board (2)

923-01498
Screw, Logic Board, Torx T5

Logic Board (1)

923-01502
Screw, Heatsink, Left, Torx T8

Heatsink (left) (1)

923-01505
Screw, Heatsink, Right, Torx T8

Heatsink (right) (1)

923-01423
Screw, Fan, Black, Torx T3

Left Fan to Top Case (3)
Right Fan to Top Case (3)

923-01515
Screw, Fan, Silver, Torx T3

Left Fan to Top Case (1)
Right Fan to Top Case (1)

923-01442
Screw, Touch ID, Torx T3, Black

Touch ID (inner) (2)

923-01443
Screw, Touch ID, Torx T3, Silver

Touch ID (outter) (4)

923-01285
Screw, eDP / TCON Upper Cowling, Torx T3

eDP Flex Cable Upper Cowling (2)

923-01277
Screw, TCON Board, Torx T5

TCON Board (4)

923-01185
Screw, Spring Tensioner, Torx T3

Spring Tensioners (4)

923-01512
Screw, Vent/Antenna Module, 1IPR, Pentalobe P2

Vent/Antenna Module (16)

923-01173
Screw, Display Assembly Clutch / Hinge, Torx T8

923-01173 - Screws / Screw, Display Assembly Clutch / Hinge, Torx T8 for MacBook Pro 15-inch 2018. Screw Location(s): Display Left Hinge (3), Display Right Hinge (3)

Display Left Hinge (3)
Display Right Hinge (3)

923-02530
Screw, w/ Washer, Audio Board, Torx T3

Audio Board Screw to Top Case (3)

923-01507
Screw, GPU Flexures, Torx T5

Heatsink GPU Flexures (4)

923-01508
Screw, CPU Flexures, Torx T5

Heatsink CPU Flexures (4)

923-01190
Screw, Cowling, TCON Flex, Torx T3

eDP Flex Cable to Logic Board (2)

923-01509
Screw, I/O Board, Torx T5

I/O Board to Top Case (left side) (2)
I/O Board to Top Case (right side) (2)

923-01464
Standoff, Top Case, Hex

Top Case to Logic Board (3)

999-0009 Screws Full Set/Kit, 82+ Pieces	923-02513 Screw, I/O Board Cowling, Torx T3	923-01516 Screw, Pentalobe P5, Bottom Case, Silver Bottom Case (front) (4)
923-01513 Screw, Pentalobe P5, Bottom Case, Space Gray Bottom Case (front) (4)	923-01517 Screw, Pentalobe P5, Bottom Case, Shoulder, Silver Bottom Case (rear corners) (2)	923-01514 Screw, Pentalobe P5, Bottom Case, Shoulder, Space Gray Bottom Case (rear corners) (2)
923-01418 Screw, M1.6, Flex, BMU, X379, Torx T5 BMU Screw (1)	923-01286 Screw, Display Clutch Cover, Torx T3 Display Left Clutch Covers (2) Display Right Clutch Covers (2)	923-01506 Screw, Touch ID and Audio Board Flex Cable, Cowling, Torx T3 Touch ID and Audio Board Flex Cowling (2)
923-01501 Screw, Trackpad, Keyboard, Touch Bar Display, Cowling, Torx T3 Trackpad / Keyboard Flex Cable Cowling (2) Touch Bar Display Flex Cable Cowling (2)	923-01510 Screw, eDP, Lower Cowling, Torx T3 eDP Flex Cable Lower Cowling (2)	923-01500 Screw, Fan, Torx T3 Logic Board to Left Fan (1 x antenna grounding) (3) Logic Board to Right Fan (3)
923-01497 Screw, Logic Board, Torx T3 Logic Board (2)	923-01498 Screw, Logic Board, Torx T5 Logic Board (1)	923-01502 Screw, Heatsink, Left, Torx T8 Heatsink (left) (1)
923-01505 Screw, Heatsink, Right, Torx T8 Heatsink (right) (1)	923-01423 Screw, Fan, Black, Torx T3 Left Fan to Top Case (3) Right Fan to Top Case (3)	923-01515 Screw, Fan, Silver, Torx T3 Left Fan to Top Case (1) Right Fan to Top Case (1)
923-01442 Screw, Touch ID, Torx T3, Black Touch ID (inner) (2)	923-01443 Screw, Touch ID, Torx T3, Silver Touch ID (outter) (4)	923-01285 Screw, eDP / TCON Upper Cowling, Torx T3 eDP Flex Cable Upper Cowling (2)
923-01277 Screw, TCON Board, Torx T5 TCON Board (4)	923-01185 Screw, Spring Tensioner, Torx T3 Spring Tensioners (4)	923-01512 Screw, Vent/Antenna Module, 1IPR, Pentalobe P2 Vent/Antenna Module (16)
923-01173 Screw, Display Assembly Clutch / Hinge, Torx T8 Display Left Hinge (3) Display Right Hinge (3)	923-02530 Screw, w/ Washer, Audio Board, Torx T3 Audio Board Screw to Top Case (3)	923-01507 Screw, GPU Flexures, Torx T5 Heatsink GPU Flexures (4)
923-01508 Screw, CPU Flexures, Torx T5 Heatsink CPU Flexures (4)	923-01190 Screw, Cowling, TCON Flex, Torx T3 eDP Flex Cable to Logic Board (2)	923-01509 Screw, I/O Board, Torx T5 I/O Board to Top Case (left side) (2) I/O Board to Top Case (right side) (2)
923-01464 Standoff, Top Case, Hex Top Case to Logic Board (3)
