iMac 27-inch Late 2012 - Screws Chart

999-0002

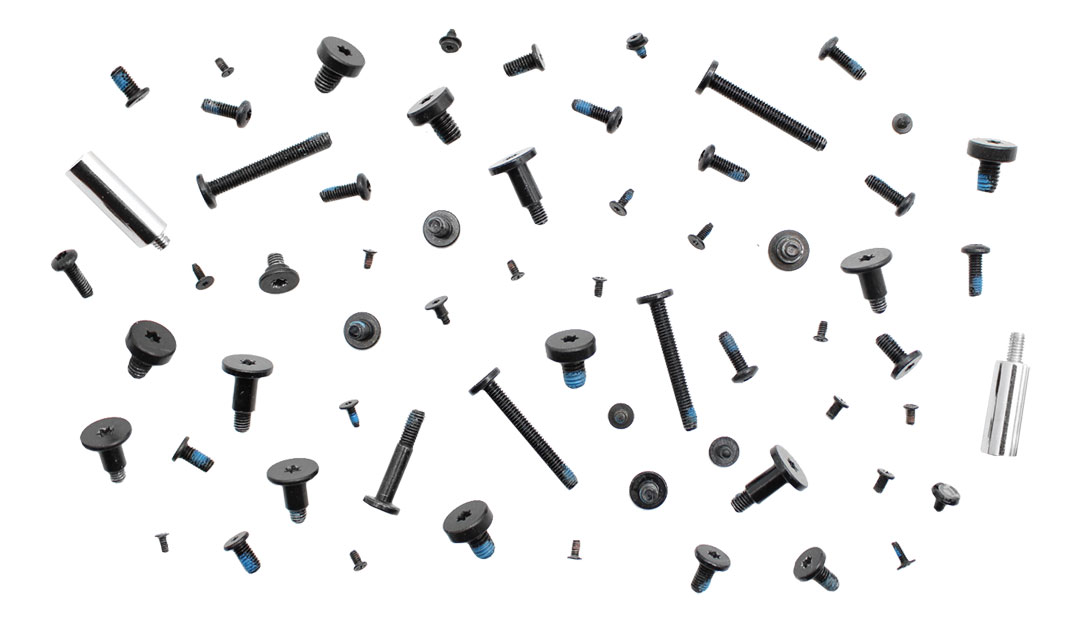

Screws Full Set/Kit, 62+ pieces

999-0002 - Screws / Screws Full Set/Kit, 62+ pieces for iMac 27-inch Late 2012. Screw Location(s):

923-0332
Screw, Shoulder, D4.0, H7.18, M3 x 4, Torx T10

923-0332 - Screws / Screw, Shoulder, D4.0, H7.18, M3 x 4, Torx T10 for iMac 27-inch Late 2012. Screw Location(s): Fan (3)

Fan (3)

923-0339
Screw, Torx T5, Camera / iSight

923-0339 - Screws / Screw, Torx T5, Camera / iSight for iMac 27-inch Late 2012. Screw Location(s): Camera (2)

Camera (2)

923-0338
Screw, Phillips 00, Chin Strap, Long

923-0338 - Screws / Screw, Phillips 00, Chin Strap, Long for iMac 27-inch Late 2012. Screw Location(s): Chin Strap (5)

Chin Strap (5)

923-0333
Screw, Shoulder, D4.0, H6, M3 x 4, Torx T10

923-0333 - Screws / Screw, Shoulder, D4.0, H6, M3 x 4, Torx T10 for iMac 27-inch Late 2012. Screw Location(s): Right Speaker (2), Left Speaker (2)

Right Speaker (2)
Left Speaker (2)

923-0304
Screw, Torx T4, Antenna

923-0304 - Screws / Screw, Torx T4, Antenna for iMac 27-inch Late 2012. Screw Location(s): Bluetooth antenna (2), Middle Wi-Fi antenna (2), Lower Wi-Fi antenna (2)

Bluetooth antenna (2)
Middle Wi-Fi antenna (2)
Lower Wi-Fi antenna (2)

923-0394
Screw, Torx T5, Wireless Card

923-0394 - Screws / Screw, Torx T5, Wireless Card for iMac 27-inch Late 2012. Screw Location(s): Wireless Card (2)

Wireless Card (2)

923-0396
Screw, Torx T8, Power Supply

923-0396 - Screws / Screw, Torx T8, Power Supply for iMac 27-inch Late 2012. Screw Location(s): Power Supply (2), Logic Board (2)

Power Supply (2)
Logic Board (2)

923-0331
Screw, M3 x 6.0mm, Torx T10

923-0331 - Screws / Screw, M3 x 6.0mm, Torx T10 for iMac 27-inch Late 2012. Screw Location(s): Logic board (4), Power supply (2), Hard drive bracket (4)

Logic board (4)
Power supply (2)
Hard drive bracket (4)

923-0395
Screw, Shoulder, Torx T10, Heatsink

923-0395 - Screws / Screw, Shoulder, Torx T10, Heatsink for iMac 27-inch Late 2012. Screw Location(s): Heatsink (2)

Heatsink (2)

923-0373
Standoff, Hard Drive, Torx T25, 20.81mm

923-0373 - Screws / Standoff, Hard Drive, Torx T25, 20.81mm for iMac 27-inch Late 2012. Screw Location(s): Hard Drive Standoff (1)

Hard Drive Standoff (1)

923-0570
Standoff / Screw, Hard Drive, 5 Hole Housing, Torx T25, M3

923-0570 - Screws / Standoff / Screw, Hard Drive, 5 Hole Housing, Torx T25, M3 for iMac 27-inch Late 2012. Screw Location(s): Hard Drive Standoff (1)

Hard Drive Standoff (1)

923-0521
Standoff / Screw, Hard Drive, 9 Hole Housing, Torx T25, M3

923-0521 - Screws / Standoff / Screw, Hard Drive, 9 Hole Housing, Torx T25, M3 for iMac 27-inch Late 2012. Screw Location(s): Hard Drive Standoff (1)

Hard Drive Standoff (1)

923-0520
Standoff / Screw, Power Supply, 9 Hole Housing, Torx T25, M3

923-0520 - Screws / Standoff / Screw, Power Supply, 9 Hole Housing, Torx T25, M3 for iMac 27-inch Late 2012. Screw Location(s): Power Supply Standoff (upper) (1)

Power Supply Standoff (upper) (1)

923-0328
Screw, Solid State Drive (SSD), Torx T8

923-0328 - Screws / Screw, Solid State Drive (SSD), Torx T8 for iMac 27-inch Late 2012. Screw Location(s): SSD / Flash storage (1)

SSD / Flash storage (1)

923-0404
Screw, Torx T5, DIMM Door Latch

923-0404 - Screws / Screw, Torx T5, DIMM Door Latch for iMac 27-inch Late 2012. Screw Location(s): Memory/RAM access door latch (4)

Memory/RAM access door latch (4)

923-0329
Screw, Stand, Torx T8

923-0329 - Screws / Screw, Stand, Torx T8 for iMac 27-inch Late 2012. Screw Location(s): Stand (9)

Stand (9)

923-0334
Screw, Torx T10, Clutch Mechanism

923-0334 - Screws / Screw, Torx T10, Clutch Mechanism for iMac 27-inch Late 2012. Screw Location(s): Clutch/Hinge Mechanism to Housing (6)

Clutch/Hinge Mechanism to Housing (6)

923-0399
Standoff / Screw, Power Supply, Torx T25, 13.84mm

923-0399 - Screws / Standoff / Screw, Power Supply, Torx T25, 13.84mm for iMac 27-inch Late 2012. Screw Location(s): Power Supply Standoff (lower) (1)

Power Supply Standoff (lower) (1)

923-0418
Screw, VESA Pentalobe P15

923-0418 - Screws / Screw, VESA Pentalobe P15 for iMac 27-inch Late 2012. Screw Location(s): VESA mount (2)

VESA mount (2)

923-0377
Screw / Stud / Standoff, Torx T8, Hard Drive

923-0377 - Screws / Screw / Stud / Standoff, Torx T8, Hard Drive for iMac 27-inch Late 2012. Screw Location(s): Hard Drive (4)

Hard Drive (4)
