Screws Charts iMac 24-inch M1 2021 Four Ports

iMac 24-inch M1 2021 Four Ports - Screws Chart

923-05557 - Screws / Screw, EMI Shield, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): EMI shield (iMac 24-inch, M1, 2021, Two ports) (14), iMac (24-inch, M1, 2021, Four ports) (11)
EMI shield (iMac 24-inch
M1
2021
Two ports) (14)
iMac (24-inch
M1
2021
Four ports) (11)

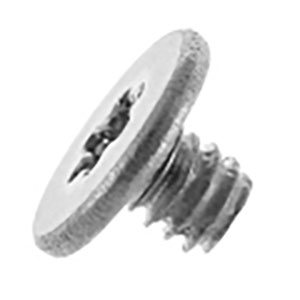

923-05562 - Screws / Screw, USB-C Board to Logic Board, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Cowling, USB-C board iMac (24-inch, M1, 2021, Two ports) (2), iMac (24-inch, M1, 2021, Four ports) (4)
Cowling
USB-C board iMac (24-inch
M1
2021
Two ports) (2)
iMac (24-inch
M1
2021
Four ports) (4)

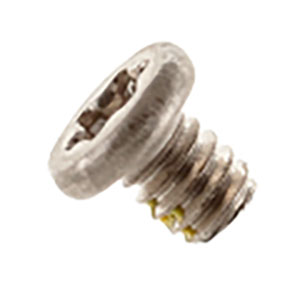

923-05559 - Screws / Screw, Low-Speed Cable, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Cowling low-speed (Adapter board connector) flex cable (5)
Cowling low-speed (Adapter board connector) flex cable (5)

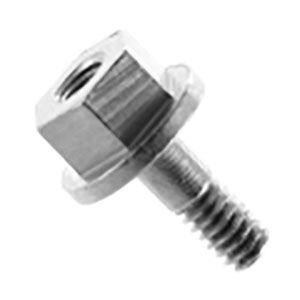

923-05573 - Screws / Screw, Logic Board, Hex 2.5mm for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Logic board iMac (24-inch, M1, 2021, Two ports) (6), iMac (24-inch, M1, 2021, Four ports) (5)
Logic board iMac (24-inch
M1
2021
Two ports) (6)
iMac (24-inch
M1
2021
Four ports) (5)

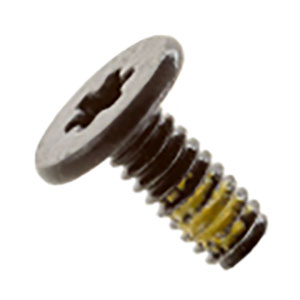

923-05558 - Screws / Screw, Fan, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Left fan (1), right fan (1)
Left fan (1)
right fan (1)

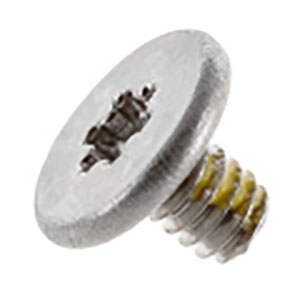

923-05561 - Screws / Screw, Low-Speed Cable to Logic Board, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Cowling, low-speed cable (Logic board connector) (3)
Cowling
low-speed cable (Logic board connector) (3)

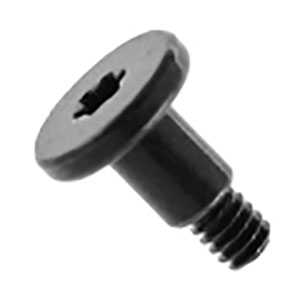

923-05555 - Screws / Screw, USB-C Board, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): USB-C Board (2 per board)
USB-C Board (2 per board)

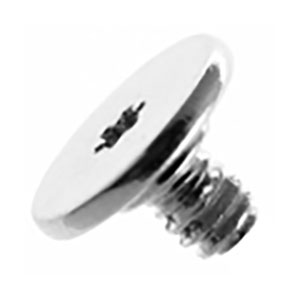

923-05670 - Screws / Screw, Audio Board Flex, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Audio board flex cable (1)
Audio board flex cable (1)
923-05557 - Screws / Screw, EMI Shield, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): EMI shield (iMac 24-inch, M1, 2021, Two ports) (14), iMac (24-inch, M1, 2021, Four ports) (11)
EMI shield (iMac 24-inch
M1
2021
Two ports) (14)
iMac (24-inch
M1
2021
Four ports) (11)
923-05562 - Screws / Screw, USB-C Board to Logic Board, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Cowling, USB-C board iMac (24-inch, M1, 2021, Two ports) (2), iMac (24-inch, M1, 2021, Four ports) (4)
Cowling
USB-C board iMac (24-inch
M1
2021
Two ports) (2)
iMac (24-inch
M1
2021
Four ports) (4)
923-05559 - Screws / Screw, Low-Speed Cable, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Cowling low-speed (Adapter board connector) flex cable (5)
Cowling low-speed (Adapter board connector) flex cable (5)
923-05573 - Screws / Screw, Logic Board, Hex 2.5mm for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Logic board iMac (24-inch, M1, 2021, Two ports) (6), iMac (24-inch, M1, 2021, Four ports) (5)
Logic board iMac (24-inch
M1
2021
Two ports) (6)
iMac (24-inch
M1
2021
Four ports) (5)
923-05558 - Screws / Screw, Fan, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Left fan (1), right fan (1)
Left fan (1)
right fan (1)
923-05561 - Screws / Screw, Low-Speed Cable to Logic Board, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Cowling, low-speed cable (Logic board connector) (3)
Cowling
low-speed cable (Logic board connector) (3)
923-05555 - Screws / Screw, USB-C Board, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): USB-C Board (2 per board)
USB-C Board (2 per board)
923-05670 - Screws / Screw, Audio Board Flex, Torx T3 for iMac 24-inch M1 2021 Four Ports. Screw Location(s): Audio board flex cable (1)
Audio board flex cable (1)
SCREWS FOR IMAC 24-INCH M1 2021 FOUR PORTS (18 items)WWW.MACRECYCLING.COM
